| Model: | SSIC |
|---|---|
| Brand: | SIACH |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-metallic Mineral Products |
| Label: | Bullet Proof Plate , SiC Plate , Ceramic Proof Plate |
| Price: |
¥30
/ pc
|
| Min. Order: | 50 pc |
| Live Chat: | Last Online:06 Dec, 2019 |

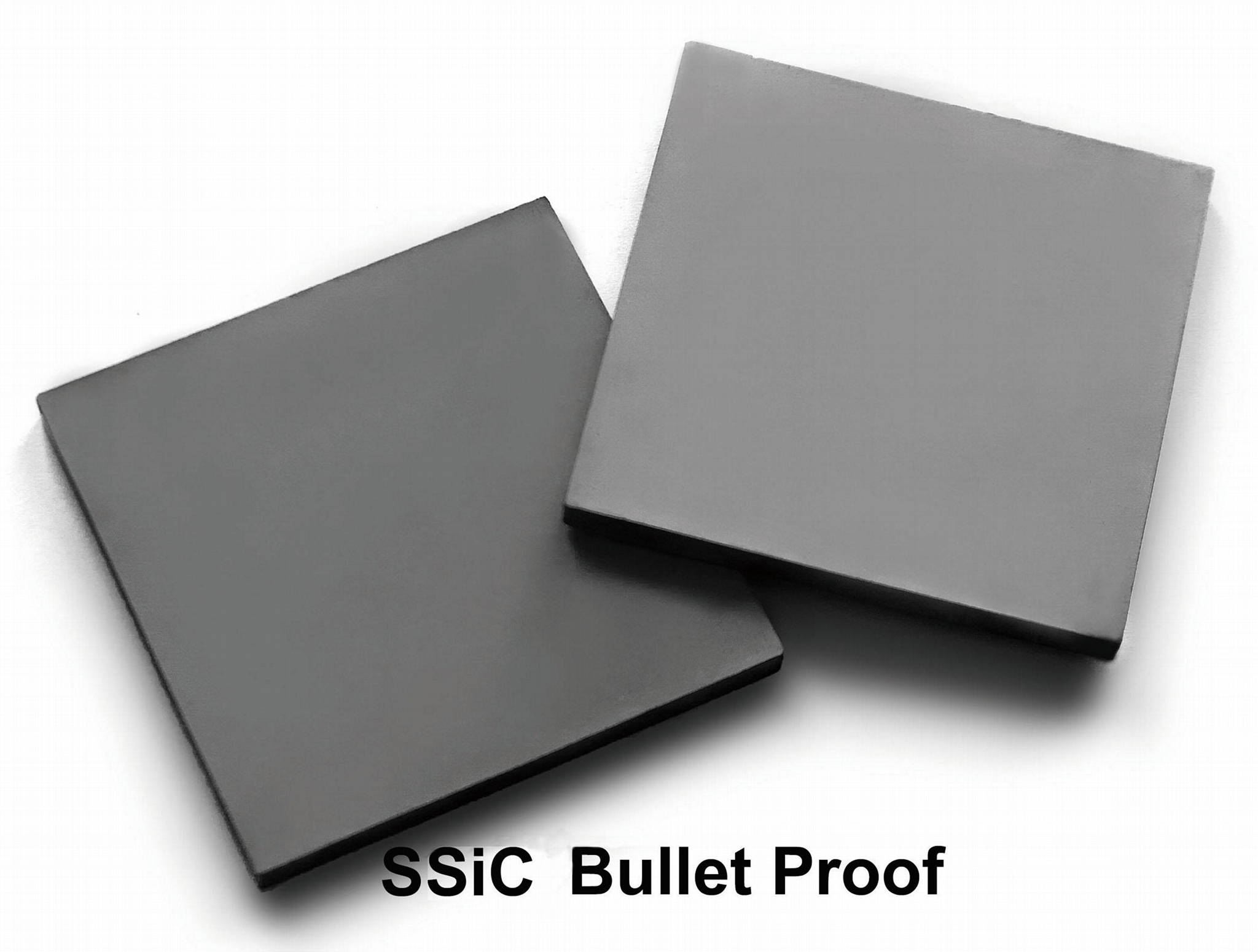

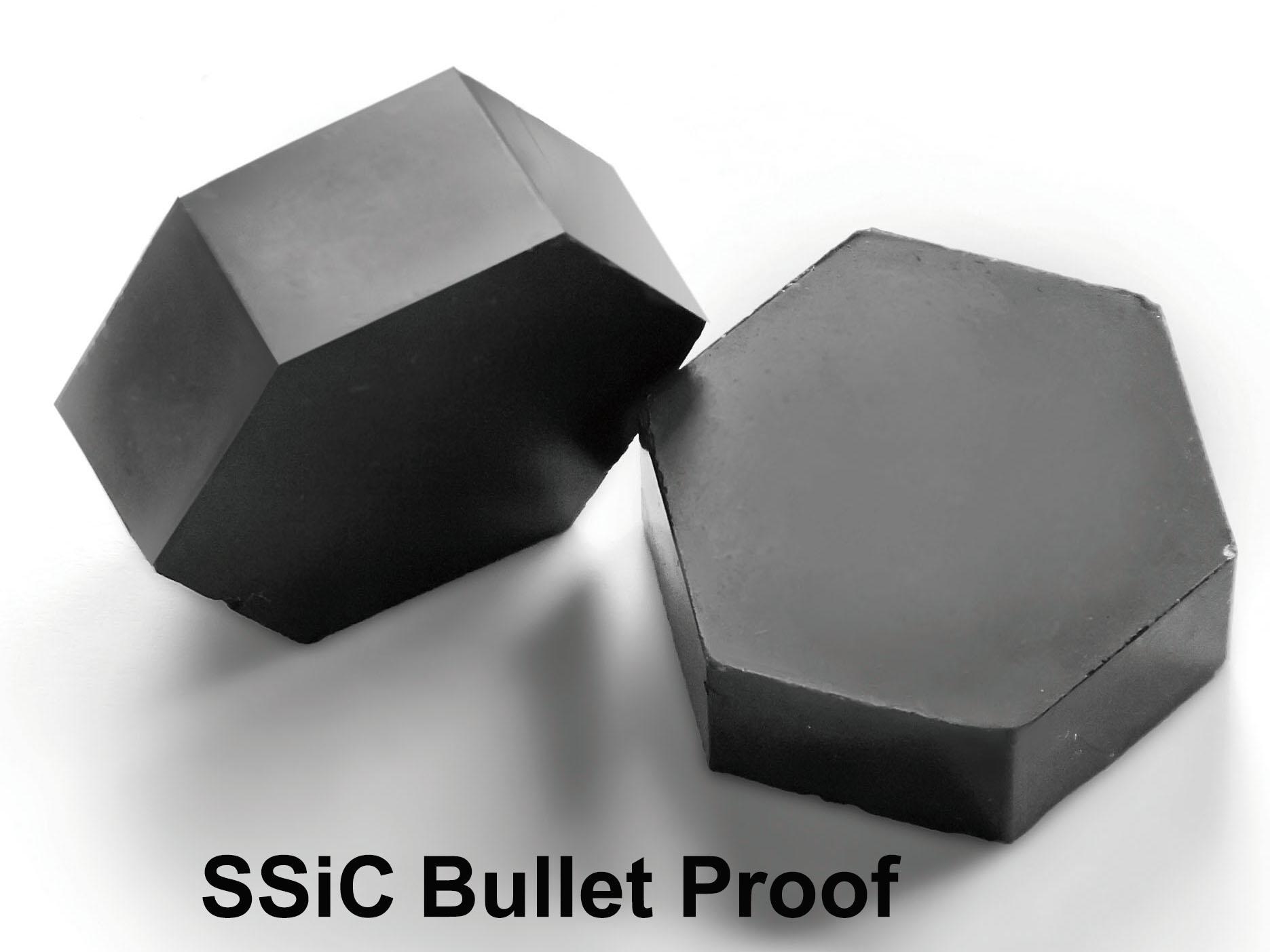

SiC bullet proof plate
It（SiC Ceramic Bullet proof insert plate）has the advantages of high-hardness, good absorbing capacity, light-weight, excellent ballistics performance, high-temperature resistance. It is the idea materials to produce the body armor, bulletproof armors for vehicles, ships, helicopters and so on.
|
SSiC bullet proof plate |
|
|
SiC |
99% min |
|
Density |
3.12g/cm3min |
|
Bending Strength |
420MPa |
|
Compressive Strength |
2200-2300MPa |
|
Vickers-hardness |
2650 |
|
Modulus of Elasticity |
420Gpa |
Main applications:
1. Personal protection
2. Bulletproof armor
3. Bulletproof shield
4. Explosion-protection wall
5. Armored Vehicle
Related Products
Pressureless sintering Silicon Carbide (SSIC) ceramic is made from high purity and ultra-fine silicon carbide powder with a small quantity of sintering aids. Under inert gas or vacuum atmosphere of barometric pressure, these materials were sintering under high temperature 1950~2100℃, the ceramics products with excellent mechanical properties (wear-resisting,smooth, etc.) and chemical properties (strong corrosion resistance,stable, etc.) were almost completely dense. Different from SISIC, SSIC ceramics do not contain free silicon and metal adhesives which are vulnerable to corrosion, and it has achieved excellent performance in strong acid and alkali environment as it was formed by uniform and dense SiC. It can promote the sliding interface to keep the fluid-flim bearing, which improves the friction performance of SSiC products. Independent and discontinuous spherical pores(50±μm) which putting on sliding interface of SSiC sealing article, can be used as fluid or storage of lubricants on the surface of sliding elements.
Extremely strong corrosion resistance and excellent frictional characteristic makes SSiC to be a wise choice of application of industrial sealing surface. It can be applied in the field of petroleum refining, waste water, chemical processing, paper and pulp, nuke industry, ocean, mining, household appliances and so on.
Advantages
1.Highly-knowledgeable equipment and application expertise
2.Reliable, customer-tailored, sealing solutions
3.Simulation and Rotating balance testing
4.Technical innovation in mechanical seal design
5.Design qualification and Design team
6.Rapid and effective Reaction on feedback
