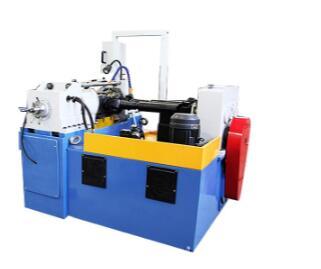

Yutong Machinery Z28-200 automatic thread rolling machine price
The thread rolling machine is a kind of multi-function cold extrusion forming machine, and the spinning function can process the thread, straight grain and twill rolling in the cold state within the range of the rolling pressure. Rolling of straight teeth, oblique teeth and helical spline gear; Straightening, reducing, rolling and all kinds of forming rolling.
|
Max rolling pressure |
200KN |
Length |
Unlimited |
|
|
Rolling material diameterrange |
Radial feed |
Φ60mm |
Spindle speed |
16、26、38、55、90(r/min) |
|
Axial feed |
Φ52mm |
|||
|
Thread roller |
Outer roller diameter |
Φ120mm |
Active power |
11kw |
|
Inner roller diameter |
Φ75mm |
Hydraulic power |
4kw |
|
|
Max thickness of roller |
120mm |
Cooling power |
90w |
|
|
Axis tilt angle |
±12° |
Weight |
2300kg±50kg |
|
|
Spindle center distance |
150-270mm |
Dimensions |
1700×1850×1550mm |
|
