12G/6G/3G-SDI input & loopout on transmitter
Dual 12G-SDI outputs on receiver
Supports up to 12G bandwidth
SDI input automatic switching SD, HD, 3G, 6G, 12G-SDI
10km transmission distance
SFP/ LC Fiber transmitter & receiver
SDI equalization and re-clocking
USB power supply
Functions 1: 10km Transmission

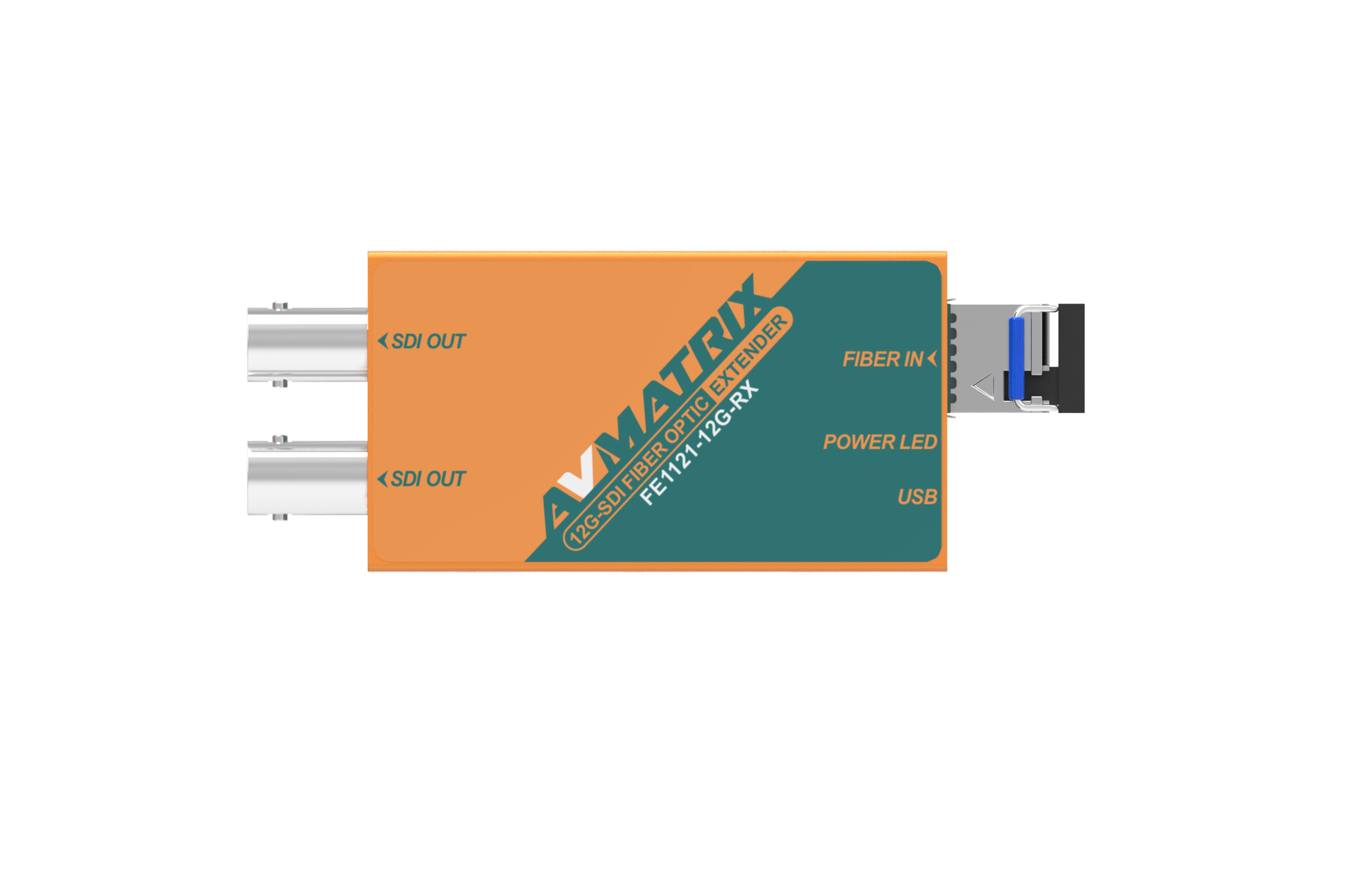

The 12G-SDI Fiber Optic Extender is a transmitter/receiver kit supporting 1310nm wavelength single-mode LC simplex fiber extensions up to 10km. It is a miniature-style extension solution that supports all SDI formats resolutions up to 4K60 (Max. bandwidth: 12Gbps) with audio and metadata.
Functions 2: SDI Equalization & Re-clocking
Equalized on the SDI input and reclocking on the SDI outputs to maximize performance up to 120m for 3G and 60m for 12G-SDI. It ensures transmission quality and effect of eye diagram, and fully compatible with 12G/6G/3G level A & level B formats.
