Foam Rebound Testing Machine
Product Description
1> Applied to Standard: ASTM D 3574-17; ISO 8307-2007; GB/T6670-2008; JIS 6400
2> Specification:
| Drop height |
460mm / 500mm ±0.5%mm (adjustable) |
| Drop ball |
Diameter:¢16±0.05 mm, mass 16.8g ± 1.5 g |
| Accuracy |
<1.5% |
| Display |
LCD Touch Screen interface |
| Sensor |
Optical fiber sensor |
| Test result |
Rebound height, rebound rate and average rebound rate after 5 test times |
| Sample size (L×W×H) |
100 mm×100 mm× 50mm |
| Machine dimension (L×W×H) |
570mm×300mm×640mm |
| USB interface |
Output test results by USB |
| Accessories |
One drop ball, one sample tray and one pick rod |
| Power supply |
Single-phase, AC110V / AC220V±10%, 50/60Hz (can be appointed) |
| Packaging Dimensions (LxWxH) |
680*470*860mm |
| Gross Weight |
40Kg |
3> Test Procedure:
1. Turn on the power and choose the language(English/Chinese).
2. Apply for the test standard.
3. Place the specimen in the machine.

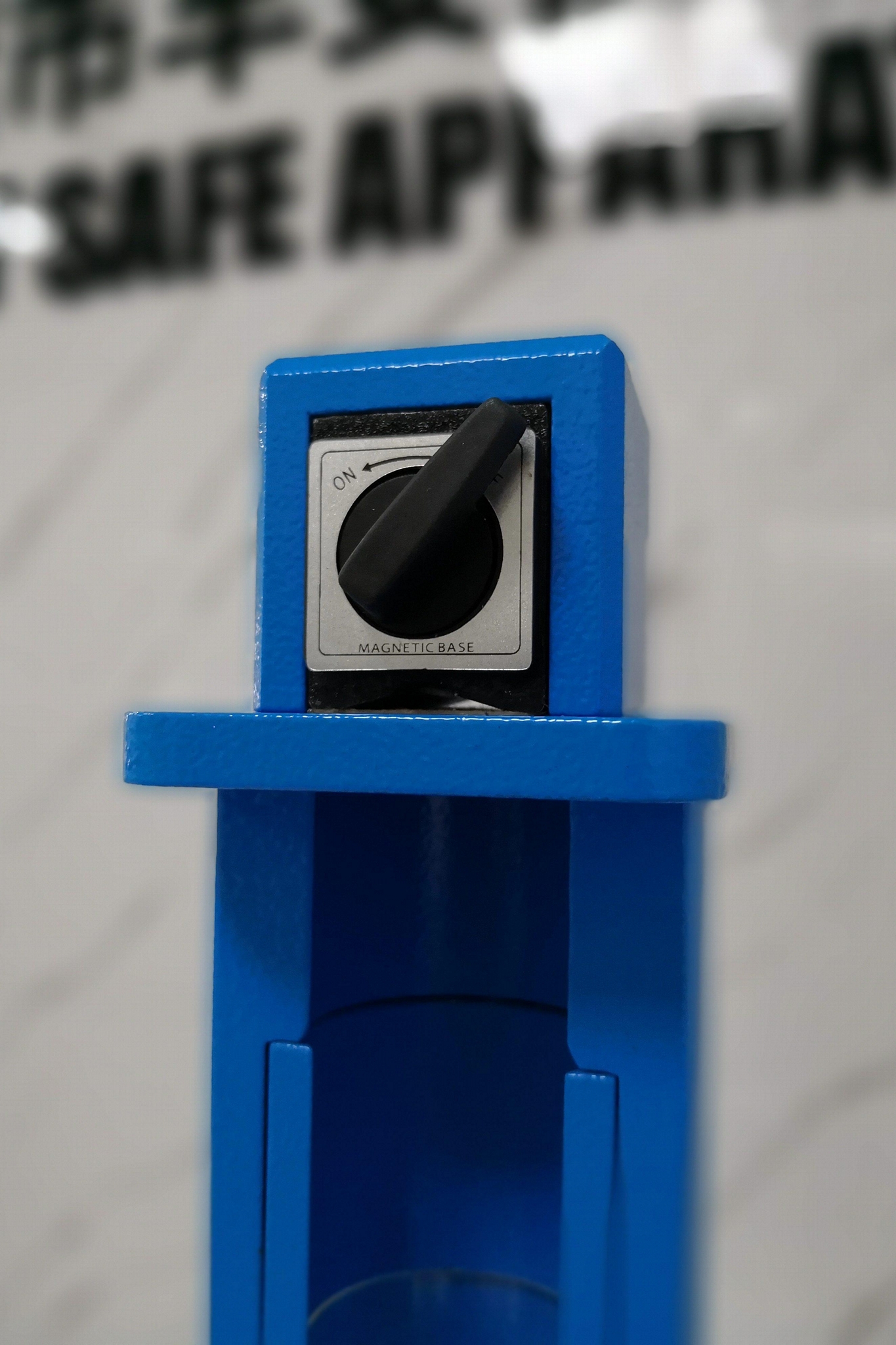

4. Stick the steel ball under the magnetic base and turn the switch to ON.
5. Press "Waiting" and wait until the change to "Ready"
6. Turn the magnetic switch to OFF and the steel will drop down.
7. After test result showed, then save it or adandon it.
8. Repeat step 4 and 5 to collect adequate data.
9. Select the average data of 5 test result.
10. Choose save the data in the USB or print it out.
| Payment Terms: | 50% deposit of full payment |
| |
