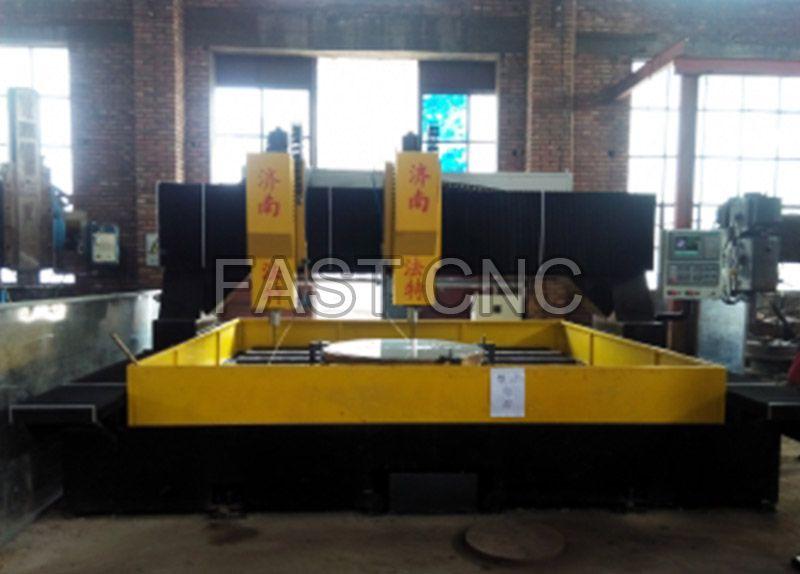

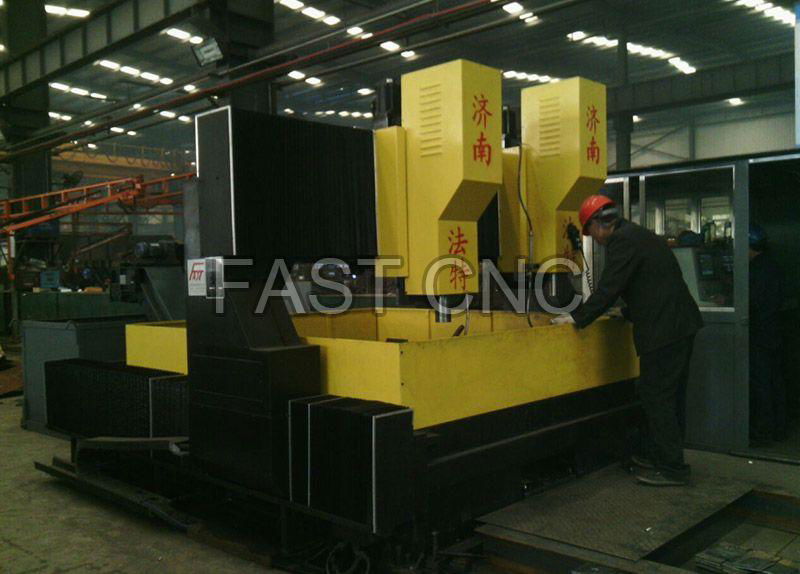

CNC Drilling Machine For Plates Model PZS1212/PZS1616,Sieve Plates Drilling Machine,Multi-Spindle Plate Drilling Machine
APPLICABLE INDUSTRY:
This machine is specially used for drilling machine for sieve plates. This machine is mainly used for high efficiency drilling of small holes on paper pulp sieve plates (stainless steel). The machine can equip with one or several high-speed drilling spindle.
COMPOSITION:
This machine is composed of fixed bed worktable, movable gantry, vertical sliding plate, drilling heads, cooling system, automatic lubrication system and controlling system.
★ All of these models can be customized according to customer requirements.
|
Model |
PZS2020 |
PZS1616 |
|
Max. Workpiece Dimension (mm) |
2000*2000 |
1600*1600 |
|
Distance between the bottom of the spindle to work table (mm) |
10~240 |
100~320 |
|
Range of Drilling Diameter |
Φ1.5~Φ5 |
Φ3~Φ10 |
|
Type of Drilling Head |
Servo motor Drilling head |
|
|
Drilling Speed (mm/min) |
50~220 (30~120 for stainless steel plate) |
|
|
Quantity of Drilling Head |
2 |
1 |
|
Drilling Axis |
6 |
1 or 2 |
|
Motor power of Drilling Head (kW) |
2.2 |
4 |
|
Max. Rotating Speed of Spindle (r/min) |
9800 |
3000 |
|
Vertical Stroke of Z Axis (mm) |
220 |
220 |
|
Z Axis Servo Motor Power (kW) |
1.0 |
1.2 |
|
Stroke of X Axis (mm) |
2000 |
1600 |
|
X Axis Servo Motor Power (kW) |
1.5 |
1.5 |
|
Stroke of Y Axis (mm) |
2000 |
1600 |
|
Y Axis Servo Motor Power (kW) |
1.0 |
1.0 |
|
Quantity of CNC Axis |
5 |
3 |
|
Net Weight (kg) |
5500 |
3000 |
★ All of these models can be customized according to customer requirements.
