| Model: | SG-MESH-2 |
|---|---|
| Brand: | Safe Guard |
| Origin: | Made In China |
| Category: | Security & Protection / Surveillance Equipment |
| Label: | netnode ip mesh radi , mimo , mimo mesh |
| Price: |
-
|
| Min. Order: | 2 pc |
| Live Chat: | Last Online:16 Nov, 2016 |

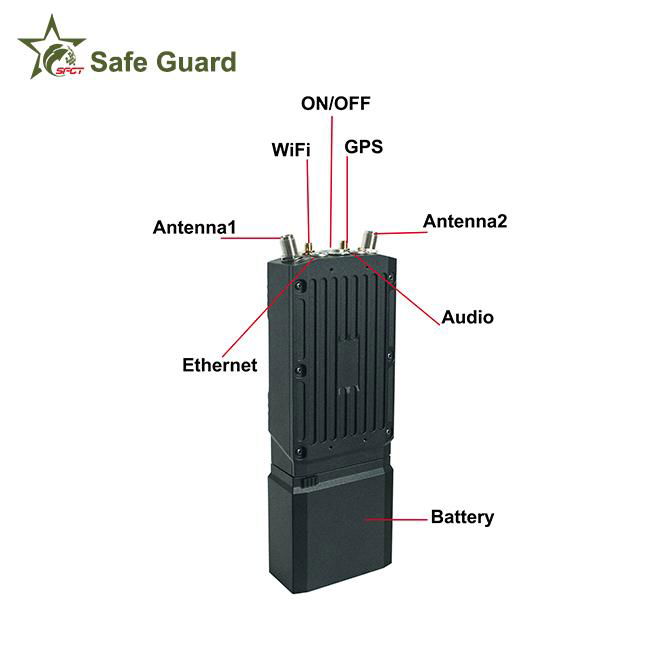

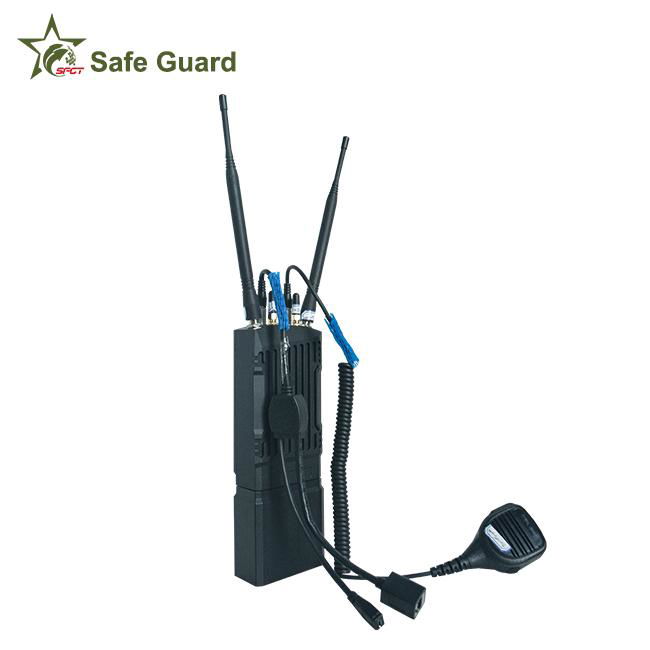

It’s a new designed tactical MESH radio specially for handheld quick deploy application. Handheld MESH provides video surveillance, voice communication, data transmission, and flexibility of IP in a private and secure network.
The handheld MESH was designed in easy operation. Each radio can be configured via simple web page, such as bandwidth, link adaptation, frequency, etc.
With it’s self-managing, self-healing, safety stream, and portable size, the r ed mesh radio helps user operate more quickly, safely and systematically in teams reaction.
Feature of handheld MESH
|
Transmission feature |
|
|
Frequency |
225MHz~1.5GHz (customized) |
|
Transmitting power |
100mW/1W |
|
Modulation |
COFDM MESH |
|
Constellation |
BPSK/QPSK/16QAM/64QAM |
|
FEC |
1/2, 2/3, 3/4, 5/6 |
|
Bandwidth |
5/10MHz |
|
Sensitivity |
4Mbps~88dB@10MHz |
|
Transfer rate |
Peak 11Mbps@10MHz |
|
Transmission distance |
1~5km LOS |
|
Mesh node network ability |
Max 16 nodes |
|
Power supply |
|
|
Operation voltage |
DC12V |
|
Operation current |
1A |
|
Power consumption |
≤9W@100mW TX power |
|
≤15W@1W TX power |
|
|
Signal feature |
|
|
Video input |
IP video input: 1080P IP camera |
|
Audio input |
MIC/PTT |
|
Audio format |
HEADSET |
|
Encryption |
AES128 or user-defined |
|
Built-in modem |
WIFI/Bluetooth/GPS/Bei Dou |
|
Physical feature |
|
|
Protection grade |
IP66 |
|
Operation temperature |
-20°C ~ +55°C |
|
Storage temperature |
-50°C ~ +70°C |
|
Weight |
About 500g (without battery) |
|
Dimension |
180*74*40mm (100mW) 215*70*40mm (1W) |
