| Model: | COP-50 |
|---|---|
| Brand: | HOPU |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Filters |
| Label: | Coconut Oil Decolor , Cooking Oil Purifier , Oil Regeneration |
| Price: |
US $9600
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:05 Sep, 2019 |
Application
Series COP is special for purifying all kinds of cooking oil such as the frying oil, and heat treatment oil and so on.. this machine can not only rapidly remove water, gas and impurities from oil, but also remove deep oxides, acid, pitch. So it can highly boost the oil’s value, the machine can remove large quantity water; it is suitable for the oil which includes so much water
Features
1.Strong capability of breaking emulsification.
2.The combination of coalescing separation and vacuum dewatering.
3.More Deeply and precisely FH rectangle filtering system. The oil will reach to the new oil’s nature when it was purified.
4.HOPU’s unique technology with H.P.M high molecule absorption material.
5.Besides the common vacuum oil purifier’s function of dewatering, degassing and eliminating impurities, this machine can regenerate the seriously deteriorated oil by removing the polarity materials, such as the deep oxides, free carbon in the oil effectively.
6 Removing large quantity water in oil.
7 Recover the acid value of the oil well because of the regeneration device.
Advantages
Oil treated by this machine contains few water content and impurities that it can be used to make biodiesel oil. This series can fast degas, dewater, and remove the impurity and the volatile matter. The specification of removing large water is so suit for purify the cooking oil.

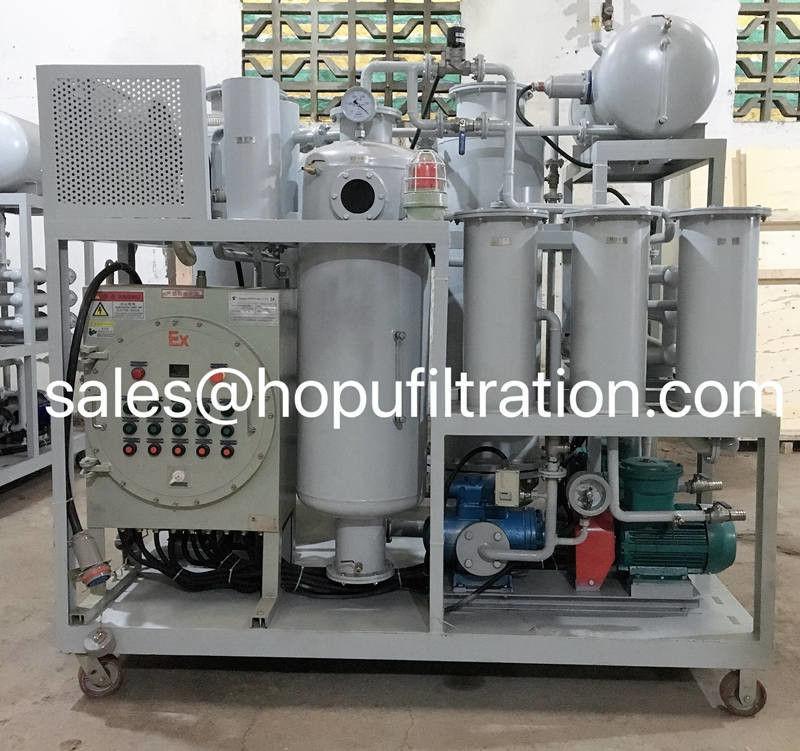

Main Structure:
1)Purifying system
2)Vacuum dewatering system
3)Vacuum degassing system
4)Decoloring system
5)Electronic control system
Parameters
|
Item |
Unit |
COP-10 |
COP-20 |
COP-30 |
COP-50 |
COP-100 |
COP-150 |
COP-200 |
COP-300 |
|
Flow Rate |
L/min |
10 |
20 |
30 |
50 |
100 |
150 |
200 |
300 |
|
Work Vacuum |
MPa |
-0.06 ~ -0.095 |
|||||||
|
Work Pressure |
MPa |
≤0.4 |
|||||||
|
Temperature |
℃ |
0 ~ 100 |
|||||||
|
Power supply |
|
380V,50Hz, 3 phase (or as needed) |
|||||||
|
Work noise |
dB(A) |
≤75 |
≤75 |
≤75 |
≤78 |
≤78 |
≤78 |
≤80 |
≤82 |
|
Heating power |
KW |
36 |
40 |
45 |
72 |
80 |
90 |
120 |
135 |
|
Total power |
KW |
38 |
42 |
47 |
75 |
87 |
101 |
135 |
147 |
|
Inlet/outlet |
mm |
25 |
25 |
25 |
32 |
42 |
50 |
50 |
60 |
|
Net weight |
Kg |
450 |
550 |
600 |
750 |
850 |
1000 |
1200 |
1500 |
|
Dimensions |
mm |
1500
|
1500
|
1500
|
1600
|
1750
|
1900
|
1900
|
2100
|
Guarantee Value
|
Item |
Guarantee indexes |
|
Moisture content |
≤50 PPM |
|
Demulsification value |
New oil≤15min,running oil≤30min |
|
Impurity size |
≤1 micron (no free carbon) |
|
Gas content |
≤0.1% |
|
Clean degree |
≤4 Grade (NAS1638) |
