| Model: | NU1056EM/C3VL02 |
|---|---|
| Brand: | SKF |
| Origin: | Made In Germany |
| Category: | Industrial Supplies / Industrial Supplies Stocks |
| Label: | NU1056EM/C3/VL0241 , insulated bearings , INSOCOAT BEARINGS |
| Price: |
US $3832
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:31 Aug, 2019 |

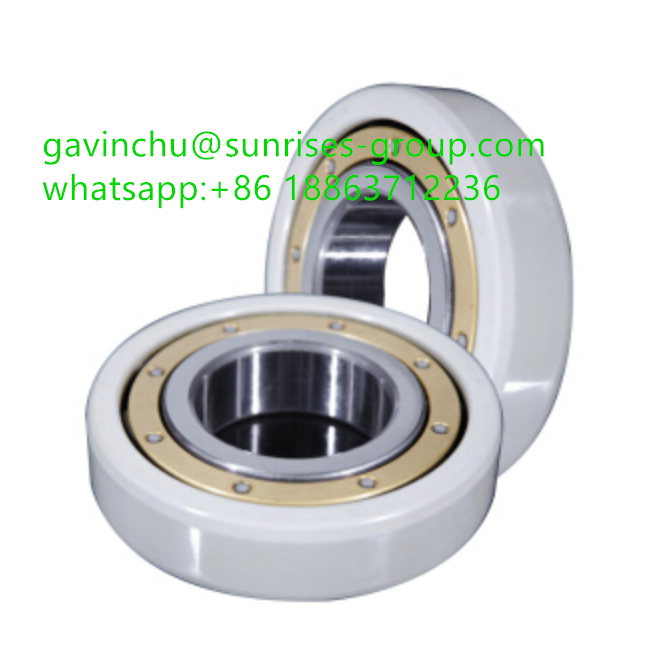

NU1056EM/C3VL0241 single-row cylindrical roller bearings, insulated bearings, INSOCOAT bearings
Size: 280mmx420mmx65mm
Weight: 31.6kgs
Specifications of NU1056EM/C3VL0241
Dimensions
| d | 280 | mm | |
| D | 420 | mm | |
| B | 65 | mm | |
| D1 | ≈ | 371.5 | mm |
| F | 316 | mm | |
| r1,2 | min. | 4 | mm |
| r3,4 | min. | 4 | mm |
| s | max. | 8 | mm |
Abutment dimensions
| da | min. | 295 | mm |
| da | max. | 312 | mm |
| db | min. | 321 | mm |
| Da | max. | 405 | mm |
| ra | max. | 3 | mm |
| rb | max. | 3 | mm |
Calculation data
| Basic dynamic load rating | C | 660 | kN | |
| Basic static load rating | C0 | 1060 | kN | |
| Fatigue load limit | Pu | 102 | kN | |
| Reference speed | 1700 | r/min | ||
| Limiting speed | 1700 | r/min | ||
| Calculation factor | kr | 0.1 | ||
| Limiting value | e | 0.2 | ||
| Axial load factor | Y | 0.6 |
Mass
| Mass bearing | 31.6 | kg |
NU1056EM/C3/VL0241 belongs to electrical insulated bearings with the following advantage:
1 higher operational reliability through optimum protection against electrical corrosion;
2 coating resistant to damage if correctly installed
3 high cost-effective: have long usage life, reduce the shut down time, improve the work efficiency.
The application of NU1056EM/C3/VL0241, electrical INSOCOAT bearings is as below:
1 traction motors of railway vehicles
2 electric motors(AC/DC)
3 generators(for example, wind turbine generators)
Brief introduction of Sun Rises Group Limited
Sun Rises Group Limited is the agent of bearings brand SKF/TIMKEN/FAG/INA/KOYO/NSK/IKO/THK etc. with the following advantage.
1)Full range: ≥10,000+ items, including wheel bearings and industry bearings;
2)Big stock: ≥100,000 pcs;
3)Fast delivery: normally 4 days if available stock;
At the same time, we especially professional at industrial bearings used for:
1)steel process machines (including metal bending, cutting, drilling, grinding etc);
2)conveyors;
3)CNC lathe;
4)construction equipment;
5)energy industry (includes thermal power factory,wind-power, oil platform...)
If any bearings demand for equipment maintenance, freely advise.
Name: Gavin Chu
Mail: gavinchu@sunrises-group.com
WhatsApp: +86 18863721236
Skype: gavinchu8
Wechat:chufugai
Devoted to be the bearing specialist around U.
