| Model: | JKS380S |
|---|---|
| Brand: | JK Drilling |
| Origin: | Made In China |
| Category: | Industrial Supplies / Mining Machine |
| Label: | drilling machine , DTH drilling rig |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:23 Aug, 2019 |

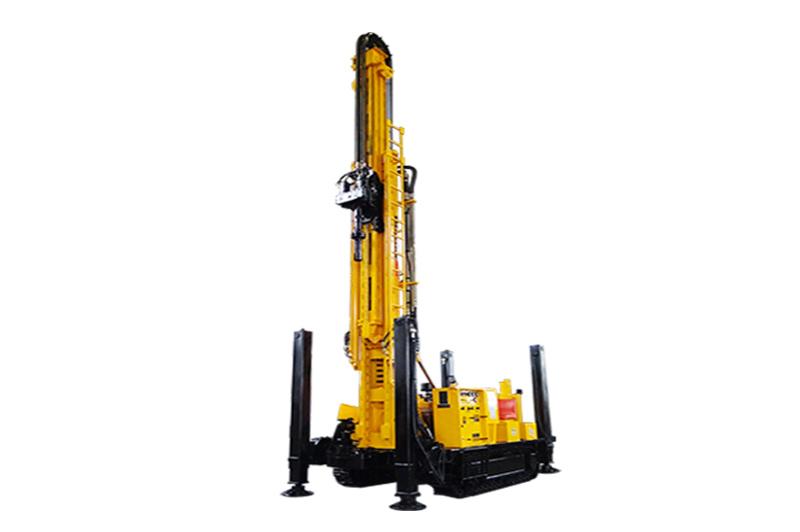

JKS380S Crawler Mounted Telescoping Mast Drill Rig
Crawler Mounted Versatile Well Drilling Rig
Applicable to various working site.
Rated Drilling Depth
300m
Site Condition
It is mainly applicable to the drilling process of wells, monitor boreholes and geothermal boreholes.
Product Features
JKS380S crawler mounted telescoping mast drill rig is a new, efficient, multifunctional hydraulic well drilling rig, mainly applicable to the drilling process of well, monitor boreholes and geothermal boreholes. When drilling in the rock layer, the rig adopts DTH percussive hammer for penetration and compressed air for cleaning, with the penetration speed being dozens of times quicker than conventional rotation rigs.
The rig is able to handle casing size up to 6 meters.
In loose rock, the rig employs a cutting bit or cone bit and uses mud to clean the dirt, its versatility suiting for all kinds of complex geological conditions
Hydraulic supporters used facilitate the rig erection on site without crane.
|
Rated Drilling Depth |
380m |
|
Borehole Diameter |
105～350mm |
|
Engine Power |
92kW |
|
Maximum Lifting Force |
18T |
|
Axial Pressure |
±8T |
|
Lifting Force of Small Winch |
1.5T |
|
Rotation Torque |
8500N.m |
|
Rotation Rate |
0～40/80rpm |
|
Feeding Stroke |
6800mm |
|
Hydraulic Support Leg Stroke |
1650mm |
|
Lifting Speed |
0～18m/min |
|
Centralizer Height |
0.8m |
|
Grade Ability |
15° |
|
Hydraulic Generator |
24kW/380V (optional) |
|
Dimension (L x W x H) |
6200mm × 2080mm × 2650mm |
|
Weight |
10.5T |
| Payment Terms: | 30% as prepayment, full payment before delivery |
|---|---|
