| Model: | C6236 |
|---|---|
| Brand: | LUZHONG |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | Lathe Machine , mini lathe , Mini Lathe Machine |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:13 Jan, 2020 |

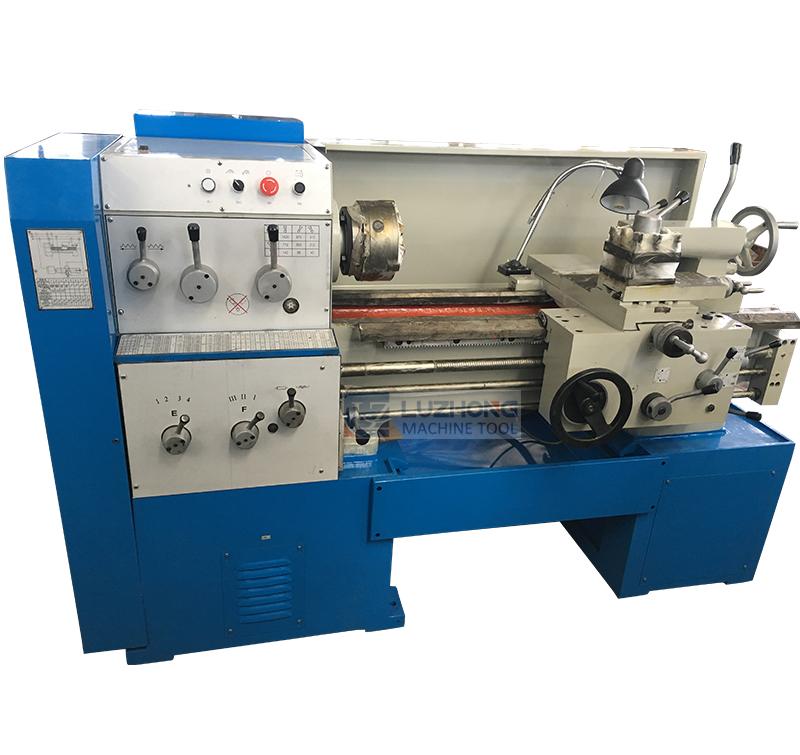

C6236 Gap Bed Lathe Machine
Product description:
1.Bed rail by super audio quenching and precision grinding.
2.Precision grinding of the main shaft box, low noise.
3.More thread type.
4.Electrical safety performance is good, high reliability.
5.With electromagnetic brake, the color of available options.
More information you can views here
Gap Bed Lathe Machine technical Specifications:
|
Specifications |
C6236 |
|
|
Capacity |
Max. Swing over bed |
360mm |
|
Max. rotating diameter |
200mm |
|
|
Max. swing over gap |
590mm |
|
|
Center distance |
750、1000、1500、2000mm |
|
|
Spindle |
Spindle hole |
52mm(82mm) |
|
Spindle nose |
ISO-C6（C8） |
|
|
Spindle tap |
MT6 |
|
|
Spindle speeds(Number) |
36-1600rpm (12 Steps) |
|
|
Feed |
Metric threads range（Kinds） |
0.5-14mm (18 Kinds) |
|
Inch threads range(Kinds) |
2-40/inch (28 Kinds) |
|
|
Module threads range(Kinds) |
0.25-3.5mπ (17 Kinds) |
|
|
Compound rest travel |
150mm |
|
|
Cross slide travel |
180mm |
|
|
Cross-section size of tool shank |
20×20mm2 |
|
|
Tailstock |
Dia. of tailstock sleeve |
75mm |
|
Taper of tailstock sleeve |
MT5 |
|
|
Travel of tailstock sleeve |
160mm |
|
|
Main motor power |
4 |
|
|
Machine size(L*W*H mm) |
Overall dimensions for750mm |
2100×1150×1550mm |
