| Model: | - |
|---|---|
| Brand: | SMART WASP |
| Origin: | Made In China |
| Category: | Industrial Supplies / Packaging Related Machine |
| Label: | pallet wrapping mach , stretch wrapping mac |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:25 Jul, 2019 |
pallet Packaging machine,Automatic Pallet Wrapping Machine

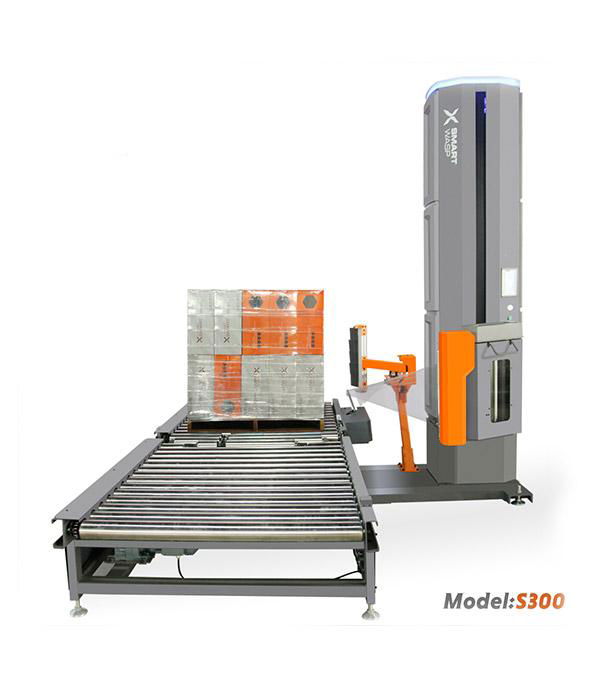

Best solution for automatic production line---S300 fully automatic pallet wrapping machine
1.Motor Drive Conveyor
2.Pallet wrapping machine use LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet
3.Film provides extra support during transportation and storage to protect them from dust, moisture or damage
4.The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,
pottery, food & beverage, et.
Smart Wasp Intelligent Technology (Suzhou) Co,Ltd is one of the top intelligent industrial automation packing companies in the world.pallet wrapping machine,pallet stretch wrapping machine,stretching wrapping machine,stretch wrapping machine price,stretch film wrapping machine,pallet stretch wrapping machine,mobile wrapping machine,wrapping machine,pallet wrapper,film wrapper,stretch wrapper
1. High efficiency and low electricity-consumption, convenient in operation.
2. The wrapping type and times can be designed on customers’ requirements.
3. Photoelectric sensor test pallet height automatic
4. Durable stainless steel conveyor
5. Pre-stretch ratio: 300%
6. Programmable control and frequency converter is available.
7.PLC control ,manual optional. Wrap cycle (top, bottom, reinforcement) adjustment.
Variable lift speed/ film tension control. Film up/down controls.
8.Pallet wraping machine soft start and soft stop.
9.Suitable for production line
10.max load 3000KG
|
Model |
Smart Wasp S300 |
Spare Parts |
Brand |
|
Maximum wrapping speed |
30-40 loads/hour |
Inverter |
SIEMENS(Germany) |
|
Load Size Diagonal |
1753mm |
Position sensor |
SICK(Germany) |
|
Maximum Wrapping Height |
2400mm |
PLC |
SIEMENS(Hongkong) |
|
Turntable Speed |
0-15RPM(Adjustable) |
Travel Switch |
OMRON(Japan) |
|
Turntable Size |
2000mm |
Motor |
GPG |
|
Turntable Drive |
1.5PH |
Relay |
OMRON(Japan) |
|
Film &Clamp Cut |
Automatic (Heat type) |
Touch screen |
SIEMENS 7inch |
|
max load weight |
3000KG |
Switch |
Schneider |
|
Standard Film Width |
500mm |
|
|
|
Constant Film Delivery Force |
Standard |
|
|
|
Standard Pre-Stretch |
300% pre-stretch |
|
|
|
Roller Materials |
Stainless Steel 201 diameter :89mm |
|
|
|
Film Capacity |
250mm Diametery |
Special Process |
Introduction |
|
Film Delivery System |
Power Roller -Stretch Plus |
Frame |
Steel+ABS |
|
Film Rope System |
Standard |
Printing |
Metallic Paint |
|
Weighing Scale |
Optional |
Fall-proof |
Inside Safety Belt |
|
Machine Weight |
980KG |
Cutting |
Laser |
|
Machine Size |
L:2000mm W:1800mm H:3700mm |
Turntable Roller |
Double Nylon Roller |
|
Truntable technology |
Slewing Ring |
Up&Down Drive |
Belt |
|
Voltage |
380V/220V/50HZ 1phase |
Up&Down Guideway |
Double Balance Device |
Smart Wasp is one of the top intelligent industrial automation packing companies in the world. Our wrapping machine with SIEMENS control system. Our main products: high efficiency pallet wrapping machine, stretching wrapping machine.
