| Model: | FRL-1400 |
|---|---|
| Brand: | Bochuang |
| Origin: | Made In China |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Non-ferrous Metal Products |
| Label: | aluminum rewinding , rewinding machine |
| Price: |
US $30000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:16 Jul, 2019 |
Application
It is used to coil the aluminium and aluminium alloy rod.
2．Composition
It is mainly composed of 4000mm pay-off stand, straightener, main machine for coiling, traversing stand and electric control system.
3．Main technical specifications
1）．Rod diameter 9.5mm~12mm
2）．Coiling diameter 540×1400×870mm（should be choose by customer）
3）．Rotate speed for take up V=2-3m/s
4）．Motor for take-up Y180M-4, 18.5Kw(frequency control)
4．Components and Specifications
1）．4000 Pay-off stand
The Pay-off stand is composed of welded bracket, protective cone and setting reeler. The bracket is welded by channel steel. The protective cone makes the rod upward and prevents it disordering. Shafting bearings are set on the two ends of the setting reeler which is flexible to turn and avoids scratch of the rod.
2）．Straightener
The straightener is composed of flat idler, vertical rolls, movable press roller, bracket and platform. The aluminium rod is given certain precompression according to adjusting the movable press roller to realize the straightening of the rod.

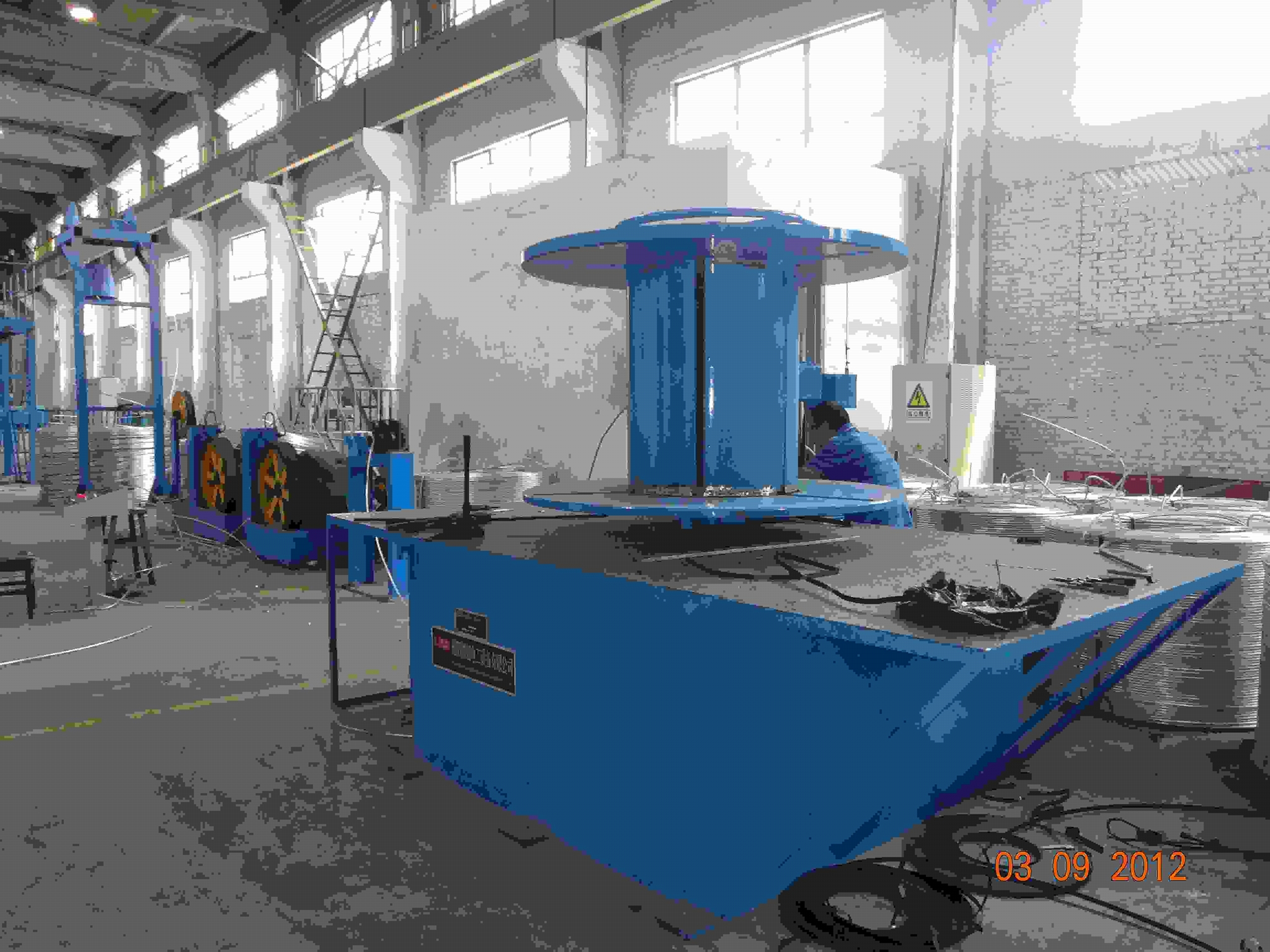

3）Main machine for coiling and traversing
