| Model: | DP5151 |
|---|---|
| Brand: | CIERNE |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Sealing & Gaskets |
| Label: | graphite , gasket , seal |
| Price: |
US $1
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: |  | Last Online:27 May, 2019 |
Detailed introduction

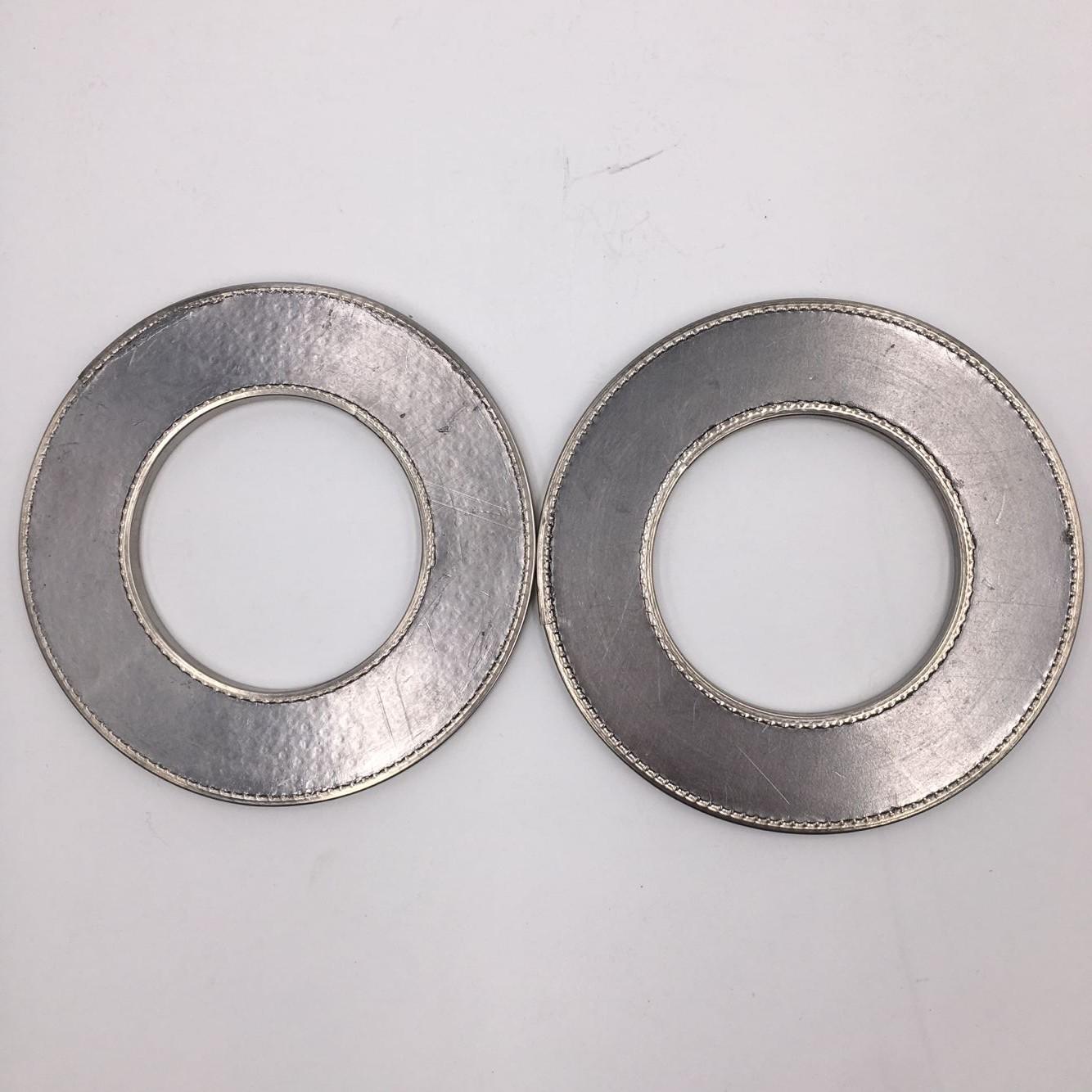

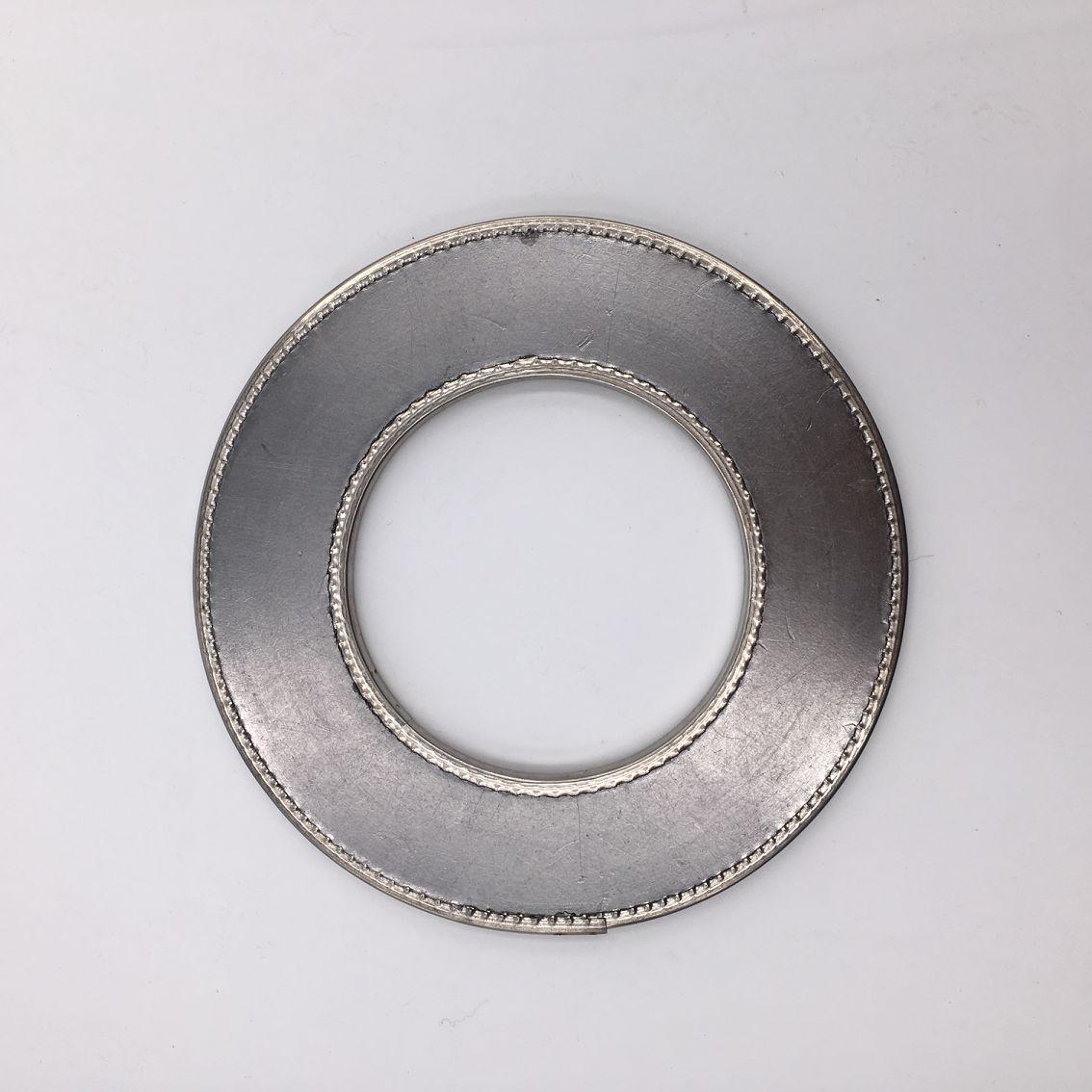

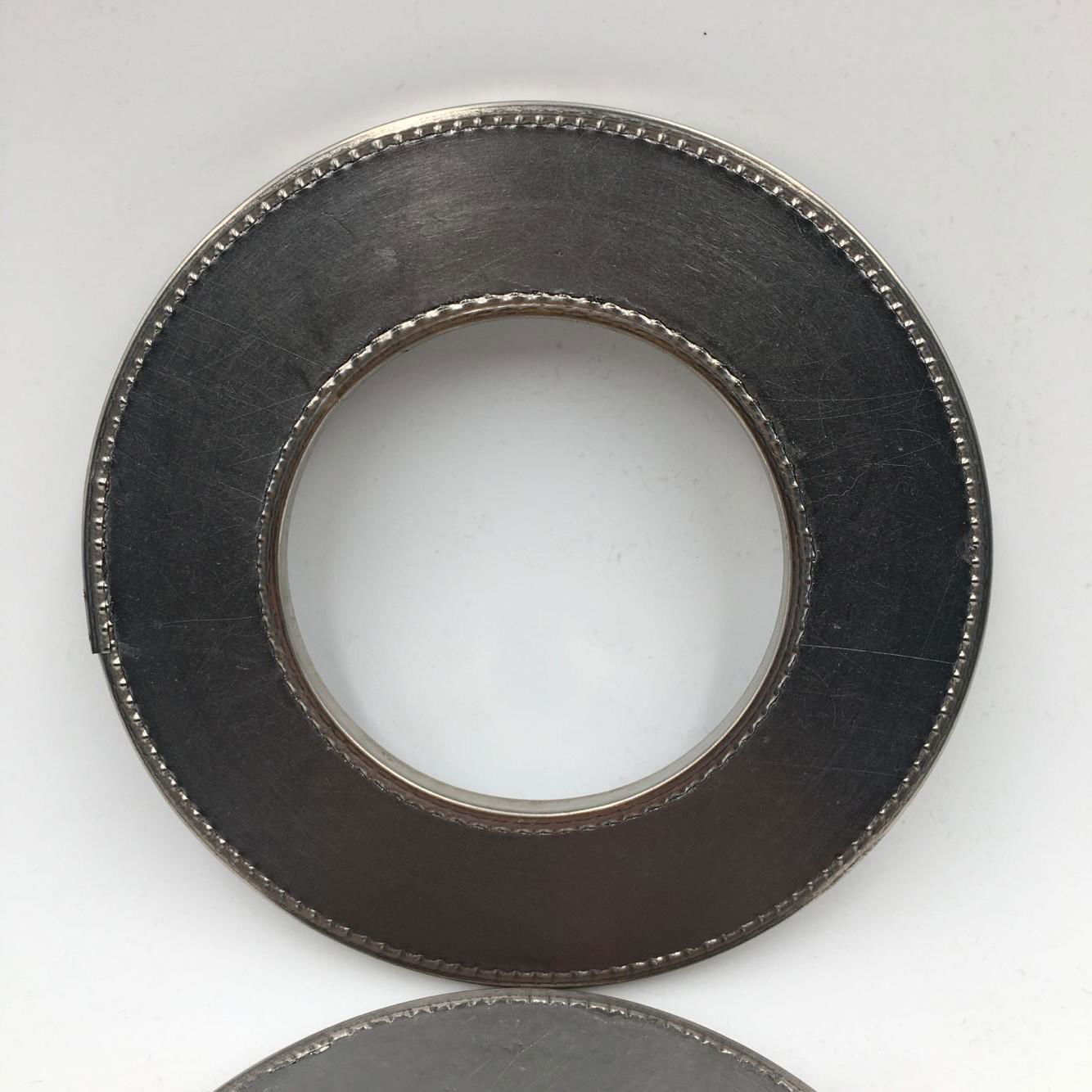

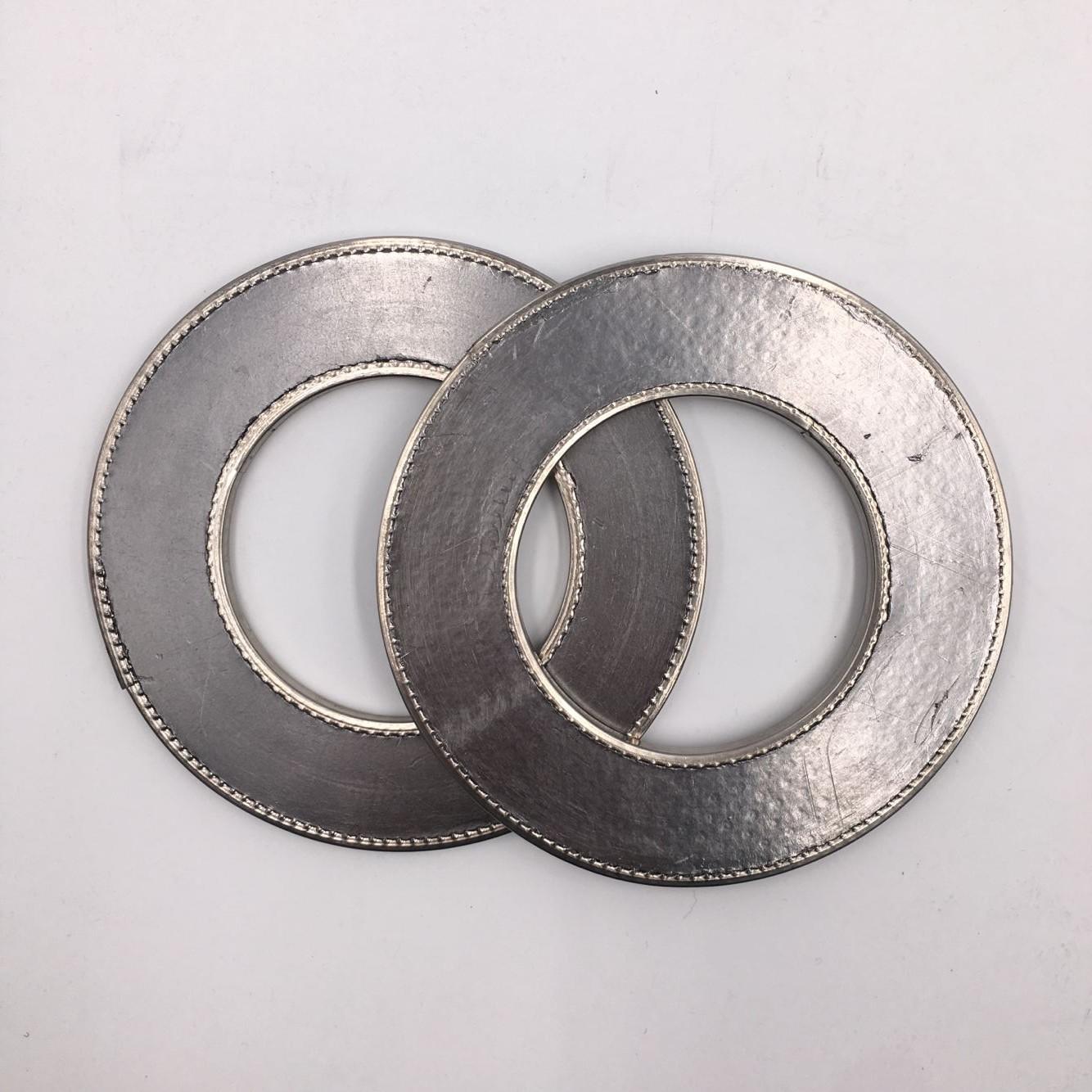

Reinforced Flexible Graphite Gasket
Gasket is cut precisely by DP5151 plates. The manufacturing process is easy. Installation as well as application is convenient. Having excellent sealing property, they are suitable for the media, such as: hot water, high temperature and pressure steam, hydrogen, ammonia, solvents, hydrocarbons, super-low temperature liquids, etc.
Technical data:
|
Item |
Unit |
Value |
|
Pressure |
Mpa |
≤25 |
|
Compressibility |
ASTMF-36 % |
15-35 |
|
Resilience |
ASTMF-36 % |
≥30 |
|
Temperature |
℃ |
-200~+850 |
|
Leakage rate |
ASTMF-37 cm3/s |
1.0×10-3 |
|
Application：Used as gaskets at the flange joints of different pipes, valves, pumps heat-exchangers, condensers, pressurized vessels, towers, manholes, hand holes, and to make gaskets for liquid level gages and crystallizers. Except food and medicine touched media. Gasket cutting from reinforced graphite plate. Suitable for the media, such as: hot water, high temperature and pressure steam, hydrogen, ammonia, solvents, hydrocarbons, super-low temperature liquids, etc. |
||
