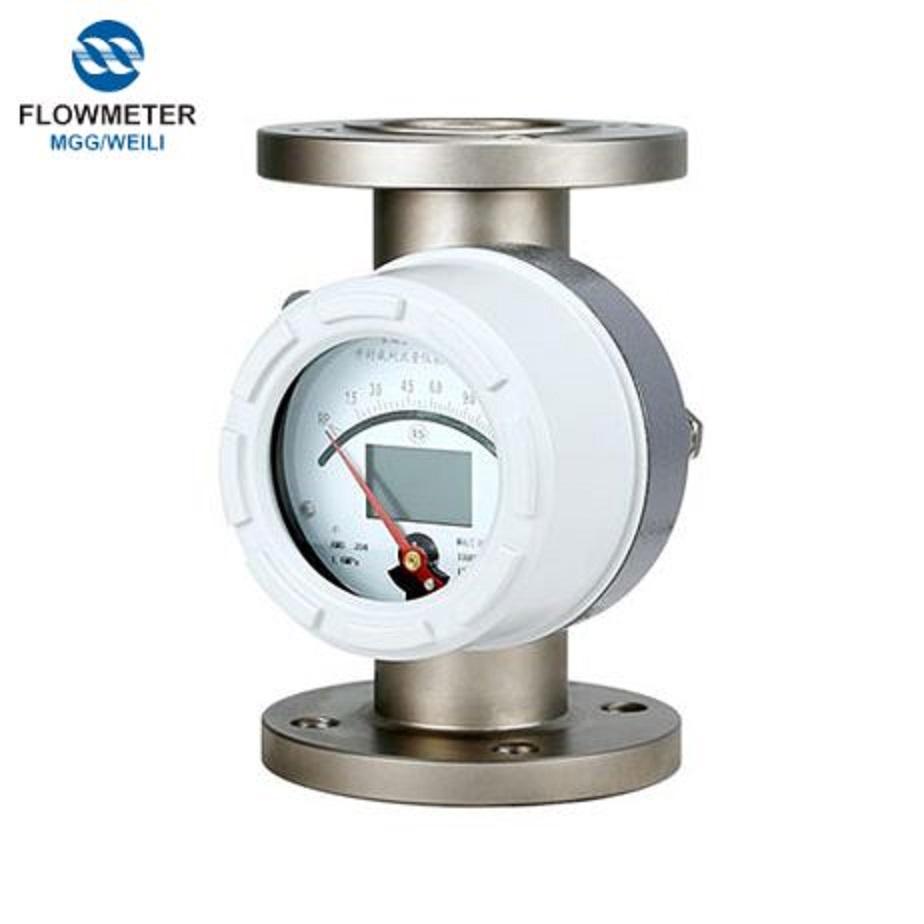

Hart Intelligent Variable-Area Metal Tube Rotameter Water Flow Meter
International Model Rotameter China, Variable-area Metal Tube Rotameter
Quick Details:
|
Place of Origin |
Henan, China (Mainland) |
Brand Name |
WEILI |
Model Number |
MGG |
|
Product Name |
HART intelligent variable-area metal tube rotameter water flow meter |
keyword |
metal tube rotameter |
Ambient temperature |
-20℃ to 70℃ |
|
Accuracy class |
1.5 special 1.0 |
Pressure loss |
7kPa~70kPa |
Temp of measured medium |
-40℃ to 100℃ |
|
Pressure Rating |
DN15-DN200 |
Communication |
RS485/Modbus/RS232/HART/Profibus |
Application |
Gasoline Water Treatment Chemical Diesel Fuel |
Product Description:
Intelligent Variable Area Flow meter
MGG/Z offers a wide range of Variable Area Flow Meters (Rotameters) for various flow measuring applications; a convenient measuring instrument in field to monitor the flow at site in critical cooling, sampling and process applications. These are manufactured under technical know-how from M/s Heinrich Messtechnik GmbH, Germany. Proven design, long term usage references ensure complete safety and suitability of their usage in severe applications, backed up by all the necessary mandatory certifications
Product Features:
HART intelligent variable-area metal tube rotameter water flow meter
Metal pipe float Flowmeter is also called measuring pipe. It mainly includes conical pipe, float, guide, stop and installation flange. Hart indicator is sturdy, simple and reliable, and its explosion-proof performance conforms to GB3836.1 and GB3836.2-2000, explosion-proof mark Exi11CT6, protective grade IP65. Precision die casting aluminum alloy shell, surface spray, is conducive to anticorrosion, simple structure, easy installation, high temperature resistance, (maximum temperature 85 degrees Celsius). Mechanical pointer, spot indication instantaneous flow scale, with upper and lower limit alarm function, synchronization with the international market, select a new Hart transmitter.
|
Measuring range |
·Water(20℃)1200000 l ／ h Air(20℃, 0.1013MPa)0.036000m3/h |
|
Accuracy class |
1.5 % |
|
Pressure loss |
7kPa~70kPa |
|
Environment Temp |
Pointer type:40℃~+100℃ ，Remote:40℃~+85℃(liquid crystal is not damage) |
|
LCD:Flow |
0~50000 (with decimal point) |
|
Connection |
DIN2501 flanges |
Main Features:
HART intelligent variable-area metal tube rotameter water flow meter
1) Temperature ranges up to 400 ℃
2) Ranges: 1- 200,000 l/h of water （20℃）
3) Pressure loss:7kPa ~70kPa
4) Available for use in hazardous areas
