| Model: | - |
|---|---|
| Brand: | - |
| Origin: | Made In China |
| Category: | Consumer Electronics & Lighting / Lighting / LED Lighting |
| Label: | LED High Bay Light |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:21 May, 2019 |
High Quality LED High Bay Light, 200 Watt Led High Bay Light, LED High Bay Light Manufacturer

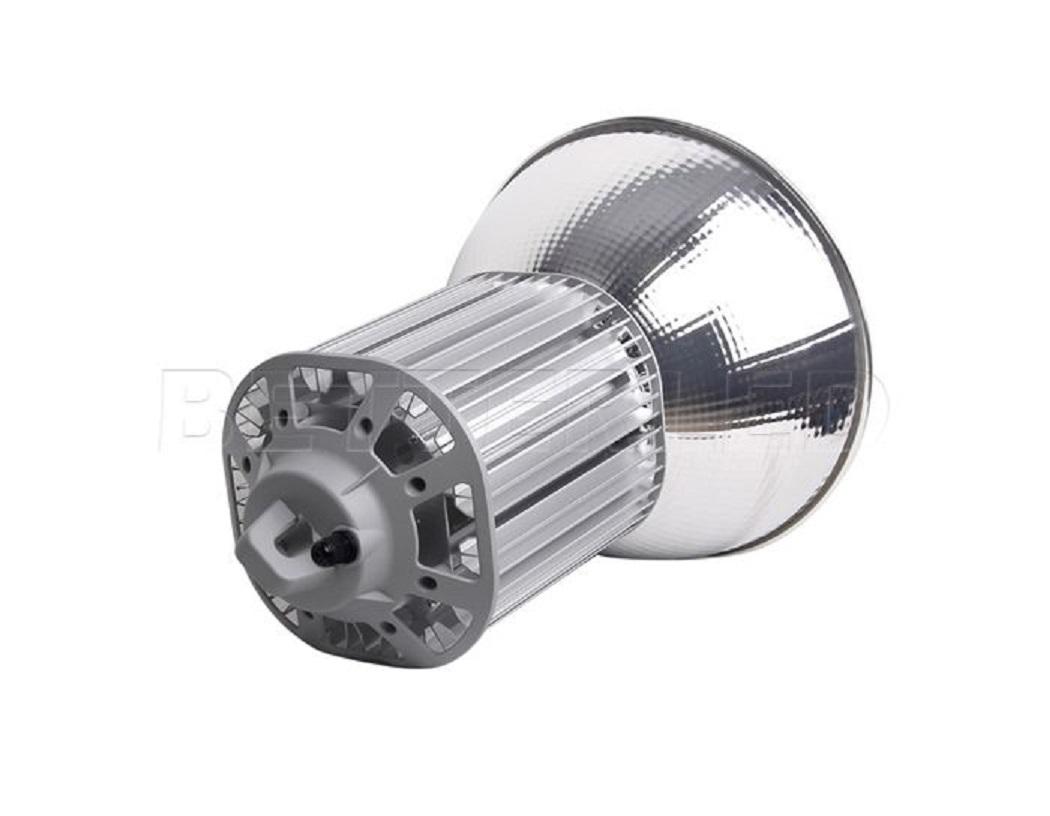

Fashionable LED Highbay Light with aluminum heat sink and copper heatpipe
Aluminum reflectors help distribute the lighting
Lumiled/Cree LED and Meanwell Driver ensure the quality and over 50,000 hours lifespan.
Easy assembing
Watts scope: 60W~250W
Light efficiency: 130lm/w
CCT: 2700-6500K
Beam angle: 60°/90°/110°
Die-casting aluminum heat sink and copper heatpipe improves heat dissipation.
High-purity aluminum reflector helps evenly distribute the lights and improve the lamp output efficiency.
Beam angle 60°/90°/110° according to your demand.
SMD LEDs with 130L/W light efficiency
CE driver, PF>0.95, Power efficiency>0.9.
Optional installations designed for different applications.
CE/RoHS approval and 3-5 years warranty.
Applications: Factory, workshop, logistic center, exhibition halls, supermarket etc.
|
Model |
LQ-ILC-100W |
LQ-ILC-150W |
LQ-ILC-200W |
LQ-ILC-250W |
LQ-ILC-300W |
|
Power |
100W |
150W |
200W |
250W |
300W |
|
LED Chip |
SMD |
SMD |
SMD |
SMD |
SMD |
|
Input voltage |
AC85~265V |
AC85~265V |
AC85~265V |
AC85~265V |
AC85~265V |
|
Input Frequency |
50HZ-60HZ |
50HZ-60HZ |
50HZ-60HZ |
50HZ-60HZ |
50HZ-60HZ |
|
Luminous flux |
120LM/W |
120LM/W |
130LM/W |
130LM/W |
140LM/W |
|
Power factor(PF) |
>0.98 |
>0.98 |
>0.98 |
>0.98 |
>0.98 |
|
Driver Efficiency |
>0.89 |
>0.89 |
>0.89 |
>0.89 |
>0.89 |
|
THD |
<10% |
<10% |
<10% |
<10% |
<10% |
|
Color |
2700K-6500K |
2700K-6500K |
2700K-6500K |
2700K-6500K |
2700K-6500K |
|
CRI |
>80 |
>80 |
>80 |
>80 |
>80 |
|
Working Temp. |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
-30℃~60℃ |
|
Working Humidity |
10~90%RH |
10~90%RH |
10~90%RH |
10~90%RH |
10~90%RH |
|
Beam Angle |
60/90/110° |
60/90/110° |
60/90/110° |
60/90/110° |
60/90/110° |
|
Lifetime |
>50000H |
>50000H |
>50000H |
>50000H |
>50000H |
|
Material |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
Aluminum |
|
Certificate |
CE/RoHS |
CE/RoHS |
CE/RoHS |
CE/RoHS |
CE/RoHS |
|
Warranty |
3/5 years |
3/5 years |
3/5 years |
3/5 years |
3/5 years |
