Quick Details

Brand Name: JILU / OEM

Model Number: 3SPC3.5/80-D60/750

Structure: Multistage Pump

Usage: Water

Application: Submersible

Power: SOLAR POWER

Fuel: SOLAR POWER

Pressure: High Pressure

RATED VOLTAGE: 60VDC

POWER: 750W

Material: 304 Stainless Steel

Motor: Brushless DC Motor

Liquid: Clean Water

Theory: Deep

Controller: 32bit MCU / FOC / Sine Wave Current / MPPT

Maximum Head: 50M

Maximum Flow Rate: 3,200L/HR

Place of Origin: CHINA



Packaging & Delivery

Selling Units: Single item

Single package size: 65X25X14 cm

Single gross weight: 11.0 kg

Package Type: PLYWOOD CASE



There are many models, to s est you suitable model, we need know those from you.

1) What's the water source? How's the water quality?
2) Flow rate per day or per hour?
3) What's the vertical head?
4) What's the horizontal distance between water source and application?



Product Detail



Material

Pump Outlet:  304 stainless steel
Pump Body:     304 stainless steel
Impeller:          304 stainless steel
Motor Body:    304 stainless steel
Motor Cable:    2 meters 3cores copper cable/2mm2
Bear:                  NSK
Screw:              316 stainless steel
Motor:               Full Oil Permanent Magnet BLDC Motor
Controller Shell:  Die-cast Aluminum



Packing & Delivery

Full Set Includes

1. Solar Pump with 2m cable                          1pc

2. MPPT Controller                                         1pc

3. Float Switch for well                                    1pc

4. Lever Sensor for tank                                  3pcs

5. Heat-shrinkable tube                                   6pcs

6. Terminal                                                       5pcs

7. User Manual                                                1pc



Note:  Solar panels, solar panel connectors, pump outlet fitters, electric cables, electric box are optional, please tell us if you need our offer for them.



Packaging Review

                   Strong Plywood Cases



                                                                                                                Clear Model Name Print



Delivery

1. For sample order or small order, lead time 2-7 days.

2. For bulk order, lead time 7-20 days.

Deliveryed by Express (DHL, UPS, FedEX, TNT, EMS), by Air, by Sea are all accepted, please contact us to advice best

shipping way for you.



Installation

               Solar Pumping System Connection

                            Connection detail

          Solar Pump Intallation

                     MPPT Controller Intallation

                Water Pumping



Our Service

Quality  Control

  Controller Shell-Unique shell in China with design patent.
  Factory Acceptance -Test-Each finished controller shall be tested for at least 72 hours.
  MOSFET-The rate current of controller is 15A, we use 100A MOSFET
  Capacitor-We leave 30% extra. If require 2000uF, we use 2500-3000uF.
  Copper Foil Thickness-1.0oZ is required, we use 1.5oZ.
  Intelligent Cloud Platform--Optional.
  Soft Start-Up System-Motor starts up placidly and current is far less than traditional hardware start-up technologies.

  MPPT&DSP Chip Technique-The MCU can detect the circuit automatically and can be displayed by LED, to                 prevent  the motor from starting up frequently, protect the pump motor and prolong the motor life time.

  Protection-Over voltage protection/Under-voltage protection/Over-current protection/Over-load protection.
  Full-Automatic-Operation-Unmanned guarding, apply to photovoltaic direct power.



Strict Testing

Mppt Controller Test Platform We test each controller carefully for

72 hours or more connected with solar pump and solar panels.

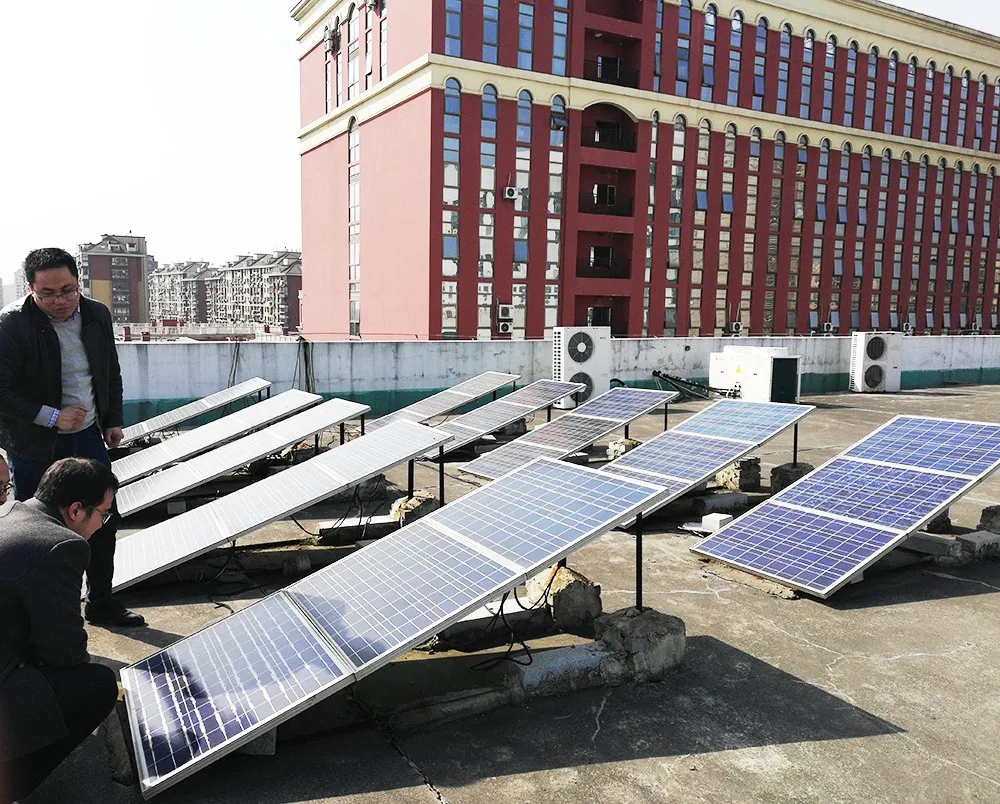

       Solar Panel On Our Factory Roof，Solar panels are connected on our factory roof for our test of each model.

    Pump Performance Test Platform，We use this machine to test pump flow, head, power etc.



Service We offer

  In warranty, if your pump or controller is broken, we can repair it or offer a new one to you.

  2 sets extra parts for every 100 sets order could be provided to customer.
  We would like offering technical training and support to our agent face to face if possible.
  Our intelligent engineers are available for technical problem.
  Any s estions to our products, we'll be glad to hear from you.
