| Model: | VC40 |
|---|---|
| Brand: | Avicon |
| Origin: | Made In China |
| Category: | Office Supplies / Office Equipment / Conference System |
| Label: | videoconferencing , USB3.0 camera , PTZ camera |
| Price: |
-
|
| Min. Order: | 2580 pc |
| Live Chat: |  | Last Online:11 Mar, 2019 |

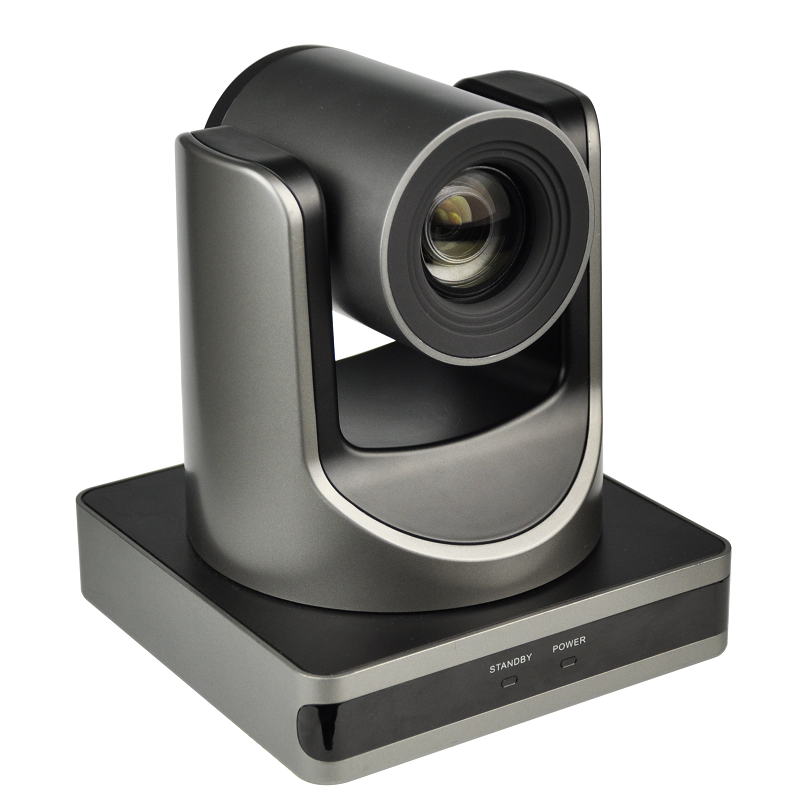

| VC40 USB PTZ camera video conference camera specfication | ||
| Main Features | ●72.5° Wide-angle Lens + 32x Digital Zoom
Use 72.5° wide-angle high quality lens, support 12x optical zoom, and 32x digital zoom (optional). ●USB3.0 Support USB3.0 ultra-high speed interface, can transfer uncompressed original video, and downward compatible with USB2.0. ●Support audio line in input Support AAC audio encoding, better sound quality and smaller bandwidth. ●H.265 Support The first H.265 encoding support conference video camera in the world, enabling full HD 1080p/60fps video stream by ultra-low bandwith. ●1080P Full HD Apply Panasonic's 1/2.7 inch, 2.07 million effective pixels high quality HD CMOS sensor,can reach maximum 1920 x 1080 high resolution and achieve quality image. ●Ultra-high Frame Rate The output frame rate up to 30fps in 1080P ●Low-light High SNR of CMOS sensor combined with 2D and 3D noise reduction algorithm, effectively reduce the noise, even under low illumination conditions, picture can still keep clean and clear. ●Remote Control Using RS232 in&out interface,all the parameters of the camera can be remote controled by the high-speed communications. |
|
| Model | VC40 | |
| Name | USB3.0 HD Video Conference Camera | |
| Camera | ||
| Video System | HD: 1080p/30, 1080p/25, 1080i/60, 1080i/50, 720p/60, 720p/50, 720p/30, 720p/25, 640x480p/240 (supported by network only, optional)
SD: 480i, 576i |
|
| Sensor | 1/2.7'', CMOS, Effective Pixel: 2.07M | |
| Scanning Mode | Progressive | |
| Lens | 12x, f3.5mm ~ 42.3mm, F1.8 ~ F2.8 | |
| Digital Zoom | 32x (optional) | |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) | |
| Shutter | 1/30s ~ 1/10000s | |
| White Balance | Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual | |
| Backlight Compensation | Support | |
| Digital Noise Reduction | 2D&3D Digital Noise Reduction | |
| Video S/N | ≥55dB | |
| Horizontal Angle of View | 72.5° ~ 6.9° | |
| Vertical Angle of View | 44.8° ~ 3.9° | |
| Horizontal Rotation Range | ±170° | |
| Vertical Rotation Range | -30° ~ +90° | |
| Pan Speed Range | 1.7° ~ 100°/s | |
| Tilt Speed Range | 1.7° ~ 69.9°/s | |
| H & V Flip | Support | |
| Image Freeze | Support | |
| Face Detection | Support (optional) | |
| Local Storage | Support | |
| Number of Preset | 255 | |
| Preset Accuracy | 0.1° | |
| USB Featured | ||
| Oprate System | Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X, Linux | |
| Color System | YUV 4:2:2 | |
| Video Format | USB3.0 : 1080p/60, 1080p/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25
USB2.0 : USB2.0:960x540p/30, 960x540p/25, 640x360p/60, 640x360p/50 |
|
| USB Video Communication Protocol | UVC 1.0 | |
| UVC PTZ | Support | |
| IPC Features | ||
| Video Compression | H.265/H.264/MJEPG | |
| Video Stream | Main Stream, Sub Stream | |
| Main Stream Resolution | 1920x1080, 1280x720, 1024x576 | |
| Sub Stream Resolution | 720x576, 720x480, 320x240 | |
| Video Bit Rate | 128Kbps ~ 8192Kbps | |
| Bit Rate Type | Variable Rate, Fixed Rate | |
| Frame Rate | 50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps, 640x480p240: 240fps | |
| Audio Compression | AAC | |
| Audio Bit Rate | 96Kbps, 128Kbps, 256Kbps | |
| Support protocols | TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. | |
| Input/Output Interface | ||
| HD Output | 1xUSB3.0 | |
| Network Interface | 1xRJ45: 10M/100M Ethernet Interface | |
| Audio Interface | 1-ch: 3.5mm Audio Interface, Line In | |
| USB | 1xUSB3.0: Type B female jack | |
| Communication Interface | 1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P | |
| 1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only | ||
| Power Jack | JEITA type (DC IN 12V) | |
| Generic Specification | ||
| Input Voltage | DC 12V | |
| Current Consumption | 1.0A (Max) | |
| Operating Temperature | -10°C ~ 40°C (14°F ~ 104°F) | |
| Storage Temperature | -40°C ~ 60°C (-40°F ~ 140°F) | |
| Power Consumption | 12W (Max) | |
| Size | 169mm x 142mm x 164mm | |
| Net Weight | 1.35Kg (3.0lb) | |
