automatic can filler seamer machine for liquid youngsun
Product Description

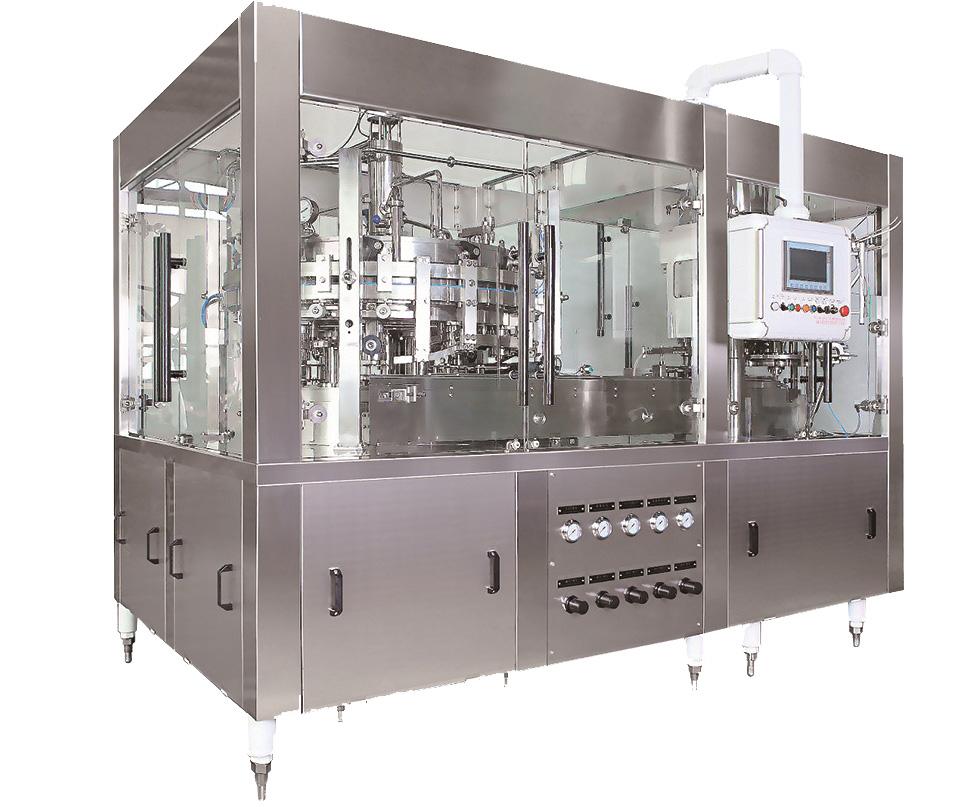

SHTGF9-2 beer beverage cans filling and capping machine is suitable for low-speed filling, providing high-quality filling equipment for small-scale, flexible production brewery.
Yongchuang filling and capping machine has low oxygen content and high liquid level precision, providing customers with high quality and competitive price products. The quality service is the life cycle of the whole can production line, which is a good choice for major breweries.
| Main parameter: |
| Items |
Description |
Techinical Spcitication |
| Capacity |
100cans/minute |
330ml |
| Machine efficciency |
≥100% |
|
| Cans types changing time |
about 30 minutes |
|
| Cans in/out direction |
270° |
|
| Filling valve |
9pcs |
|
| Filling temperature |
2-4°C |
|
| C02 content |
5g/L |
|
| Filling pressure(CO2) |
0.15-0.3Mpa |
|
| |
| Filler Characteristic SHTGF9-2 : |
| Filling method |
Isobar filling |
|
| Filling valve diameter |
Ф576mm |
|
| Pitch of filling valve |
200.96mm |
|
| Height of can transport |
1150-1300mm |
|
| Filling pricision |
±2.0mm |
|
| Beer loss |
1.5% |
|
| Oxygen pickup |
≤40ppb |
|
| Bearing brand |
SKF dan NSK |
|
| Bag filter |
Included(2 bags) |
SS |
| Seam parts brand |
Sealtech |
Germany |
| Pneumatic Components |
FESTO/SMC |
|
| Lubrication system |
Centralized lubrication |
|
| Dimension (LxWxH) |
2855X1780 X 2235mm |
|
| Cans types |
200- 1000ml |
|
| Can height |
85mm—168mm |
|
| Machine weight |
3200KG |
|
| |
| Capper Characteristic SHTGF9-2: |
| Seaming head |
2 heads |
6000CPM Capacity |
| Cap size |
202、206、209、211 |
|
| Can diameter |
Ф50-90 |
|
| Pitch of cap head |
157mm |
|
| Material of cap roller |
9Cr18Mov |
|
| Using time of cap roller |
≥100 million cans |
|
| Materral of cap head |
9Cr18 |
|
| Usingle time of capping head |
≥40 million cans |
|
| Sealing loss |
≤0.05% |
|
| Cap loss |
≤0.03% |
|
| Bearing brand |
SKF/NSK |
Sweden |
| Seam parts brand |
Sealtch |
German |
| Pneumatic Components |
FESTO/SMG |
|
| Cap storage |
1500 |
|
| Compressed loss |
0.5Nm3h（0.4-0.5Mpa） |
|
| CO2 loss |
11Nm3h（0.6-0.8MPa） |
|
| |
| Electric : |
| Total power（KW）：3KW（380v 50Hz） |
Frequency converter：DANFOSS |
Workingvoltage：AC 380v |
| Motor brand：Siemens/ABB |
HML：Siemens |
Control electric box：ss |
| PLC:Simens:S7-200 |
Controlvoltage:DC 24v |
