| Model: | FHS-120 |
|---|---|
| Brand: | Feihong |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Cutting & Fold-bend Machine |
| Label: | rebar shearer , rebar cutter , bar cutting machine |
| Price: |
US $55000
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:18 Dec, 2018 |
Product Description

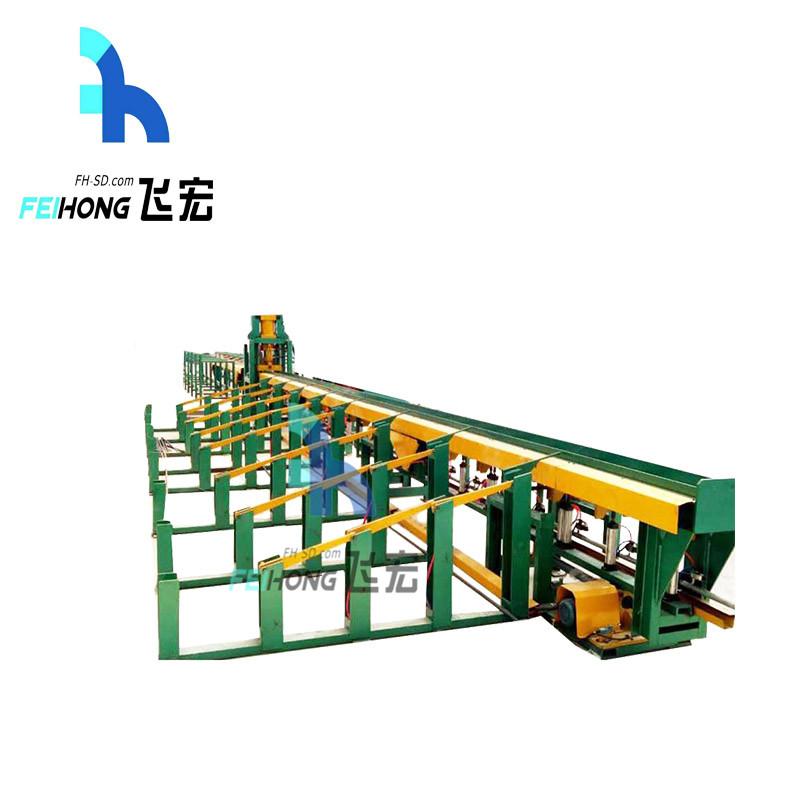

CNC Wire Steel Bar Cutting Machine.
The equipment is controlled by the numerical control system. It has accurate cutting size, flexible operation, high efficiency, only one operation, economical and practical, the failure rate is low, the production capacity can reach 50 tons.
Product Details/Advantage:
1.Adopting hydraulic shearing, small volume, high cutting force and high output, low noise, long service life and stable operation, etc.
2.Adopting import seal to the hydraulic cylinder, it is greatly increased service life.
3.Our hydraulic system only needs 15Mpa to cut the steel bars of φ25.
4.The moving blade is innovation design of oblique edge. The slop is about 3° larger than other brand products in the industry.
5.Rebar fixed-length mechanism adopts servo motor control, adjusting the distance between the shear blade and positioning baffle through Servo motor drive screw mechanism.
6.The track adopts moving track, which is more precise and small spring back during the rebar process compares to the mobile baffle scheme.
7.Chain feed mechanism, without slip and high efficiency.
8.Shearing efficiency:10 hours a day shearing 50 tons, and a shearing process needs about 1 minute.
Technical Data
|
Product Name |
CNC Wire Steel Bar Cutting Machine |
|
Model |
FHS-120 |
|
Rebar Diameter range |
12-40mm |
|
Max cut power |
1200KN |
|
Effective shearing width |
250mm |
|
Shear frequency |
20times/min |
|
Rebar convey speed |
1.92m/s |
|
Shear length |
1-12m |
|
Shear error |
±2mm |
|
Min Manual shear size |
10mm |
|
Min auto shear size |
700mm |
|
Min auto convey size |
1000mm |
|
Rebar stock bin |
4pcs |
|
Processing capability |
40mm 1 bar--12mm 15 bar |
|
Total power |
25.5KW |
|
Work temperature |
-10-50℃ |
|
Weight |
9000 kg |
|
Working voltage |
380V |
|
Working air pressure |
0.7MPa |
|
Hydraulic system max pressure |
31.5Mpa |
|
Overall dimension |
28m(L)×3.3m(W)×2.5m(H) |
Detail Image
Packing & Delivery
Packing Details : CNC rebar bending machine will be nude packed in container, the parts and tool will be packed in wooden case.suitable for long distance sea shipment.
Delivery Details : 30-40 days after prepayments.
Factory Show
Shandong Feihong Engineering Machinery Co., Ltd,
Shandong Feihong Engineering Machinery Co., Ltd, a leading numerical control steel processing equipment manufacturer, provides practical "automatic numerical control steel processing services program" for the steel processing field and construction site in the fields of highway, high-speed railway and housing construction areas in over 20 countries and regions around the world, so that the global customers have enjoyed "ultra-high quality and professional design" of unique steel automatic processing services.
Our Certifications
Our Service
Pre-sale Service
1. According to your requirements to help you design a reasonable solution,choose a reasonable equipment 2.In-depth explanation of customer service scheme by design experts.
Sale Service
1. Provide the video to help you to learn about how the device works.
2.Help you to know the details of the Key parts and our advantage.
After-sales Service
1. Guarantee for One year.
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without the freight and accessories charge)
4.24 hours maintenance response: timely feedback within 24 hours after acceptance of maintenance service.
5. Customer can enjoy lifelong value maintenance.
6. Professional and international experienced after-sales service team.
FAQ
1. Q: Are you a factory or trading company?
A: We are a professional manufacturer with strong capability in research, development and manufacturing, you can not only get the factory price but also can enjoy the "ultra-high quality and professional design" unique to Feihong.
2. Q: Where is your factory located? How can I visit there?
A: Our factory is located in Jining City, Shandong Province, China. We have branch Office in Qingdao sea port city, which is very convenient for shipment.All the customers, from home or abroad, are warmly welcome to visit us!
3. Q: Can you do OEM?
A: Yes, we can do OEM as client's requirement.
4.Q: All products have a warranty?
A:YES, Our warranty term is One Year.
5.Q:What about the delivery time?
A:Usually 15-30 days after down payment, the exact delivery time is according to the production season and order quantity.
6. Q: What is the biggest advantage of the company?
A: Stable Better Quality and Perfect Service .
Our company is a state high-tech enterprise, our rebar processing machinery are used in hundreds of infrastructure projects both with China and abroad. We are the framework agreement supplier to CREC(CHINA RAILWAY ENGINEERING CORPORATION).
We have the most complete after-sales service support system ,"8-level quality assurance system," truly lifelong maintenance, customer satisfaction is almost 100%.
