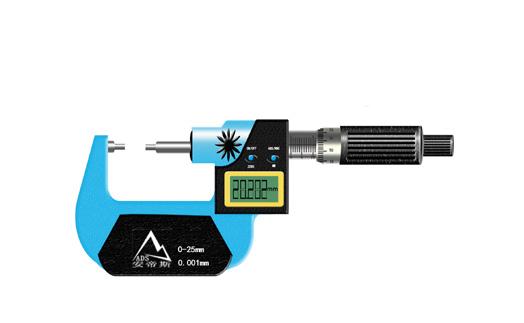

Digital Spline Micrometer with Reduced measuring contacts

Model:	ADS-Q020I-00250
Brand:	ADS
Origin:	Made In China
Category:	Industrial Supplies / Tools / Other Tools
Label:	Spline Micrometer , Spline Shaft Microme , Spline slot micromet
Price:	US $78.5 / pc
Min. Order:	1 pc

Inquire Now Add to Basket

Member Information

ADS (Beijing) Control Technology Co., Ltd

Free MemberBeijing - China

Live Chat:

Last Online:28 Nov, 2018

Product Description

• For small groove, spline shaft measurement

• Resolution: 0.001mm/0.00005”

• IP67 protection / Data output

• Automatic power off

• Stainless spindle is heardened throughout and ground

• Spindle and anvil are carbide tipped

• Ratchet is integrated in the thimble

• Lacquered steel frame

• Heat insulated

• Case, battery manual

Item No.	Measuring Range	Accuracy	L	b
ADS-Q020I-00250	0-25mm	±4um	57	32
ADS-Q020I-00500	25-50mm	±4um	82	44.5
ADS-Q020I-00750	50-75mm	±4um	107	57
ADS-Q020I-01000	75-100mm	±5um	132.6	69.5

Product Image
