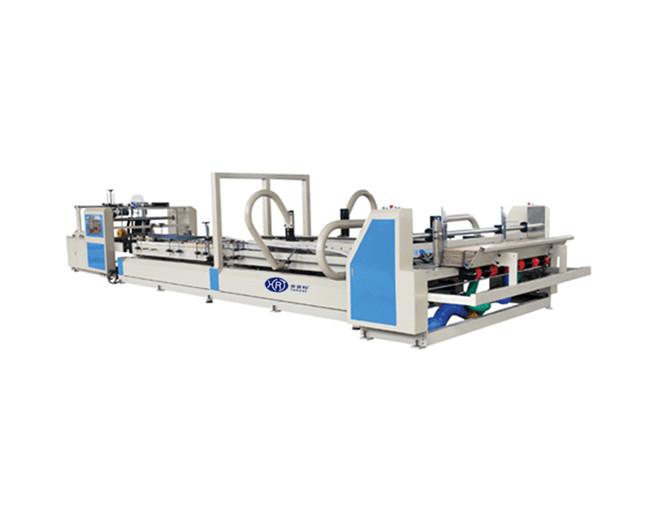

Automatic carton folder gluer machine
|
Model |
UG1-1450PC |
UG1-1450AC |
|
paper |
Card board, corrugated board |
Card board, corrugated board |
|
Feeding way |
Automatically ,continuously |
Automatically ,continuously |
|
Speed |
260m/min |
260m/min |
|
Overall dimension |
17000×2350×1650mm |
15000×2350×1650mm |
|
Weight |
12t |
10t |
|
Power |
20.5kw |
18.5kw |
|
Model |
UG-1450PC/AC |
|
A MAX |
1500mm |
|
A MIN |
300mm |
|
B MAX |
1500mm |
|
B MIN |
80mm |
|
C MAX |
730mm |
|
C MIN |
140mm |
|
D MAX |
350mm |
|
D MIN |
20mm |
Automatic gluing and folding machine and it consist of vacuum adsorption feeding part, gluing and folding part and stacking and counter part. It adopts frequency to change speed and controlled by standard PLC touch screen, easy operation and reliable. High speed and energy-saving and save labor. It is suitable for the paper, corrugated paperboard with 3,5 layer.
1. The feeding unit of the machine has the paper board stack to hold the paperboard which helps to improve the production efficiency and it also adopts the air sucking structure to improve transport efficiency and accuracy.
2. Connecting unit adopts hot melt adhesive, four side gauge positioning to ensure accurate register and high precision.
3. The machine major motor and conveyor adopt dual frequency for speed control. Stable and saved energy.
Feeding section
Adopt adsorption type belt to feed the paperboard smoothly and continuously.
Guiding section
It can correct deviation of feeding effectively, when deviated box get to guide will be corrected, adjust the left or right side based on the box shape.
Folding section
It folds second and fourth which is the last part of the box forming, box forming is folded by upper pressure conveyor belt, folding knife, pressure roller, pressure bar.
Full pressing section
Pressure connect between main machine and transmission, collect the box orderly and guide the box to conveyor device.
With the expansion of business scope,Shandong RiNo International Trade Co., Ltd quickly moves forward to the world and becomes an export-oriented company that integrates production and trade, includes paper packaging products, corrugated packaging machinery equipment, packaging product manufacturing equipment & consumables such as Corrugated Cardboard Machine, Printing Machine, Folder Gluer Machine, Automatic Die-cutting machine, Iron Wire and many other products,providing a full range of services from product to technical support. More information you can view here.
