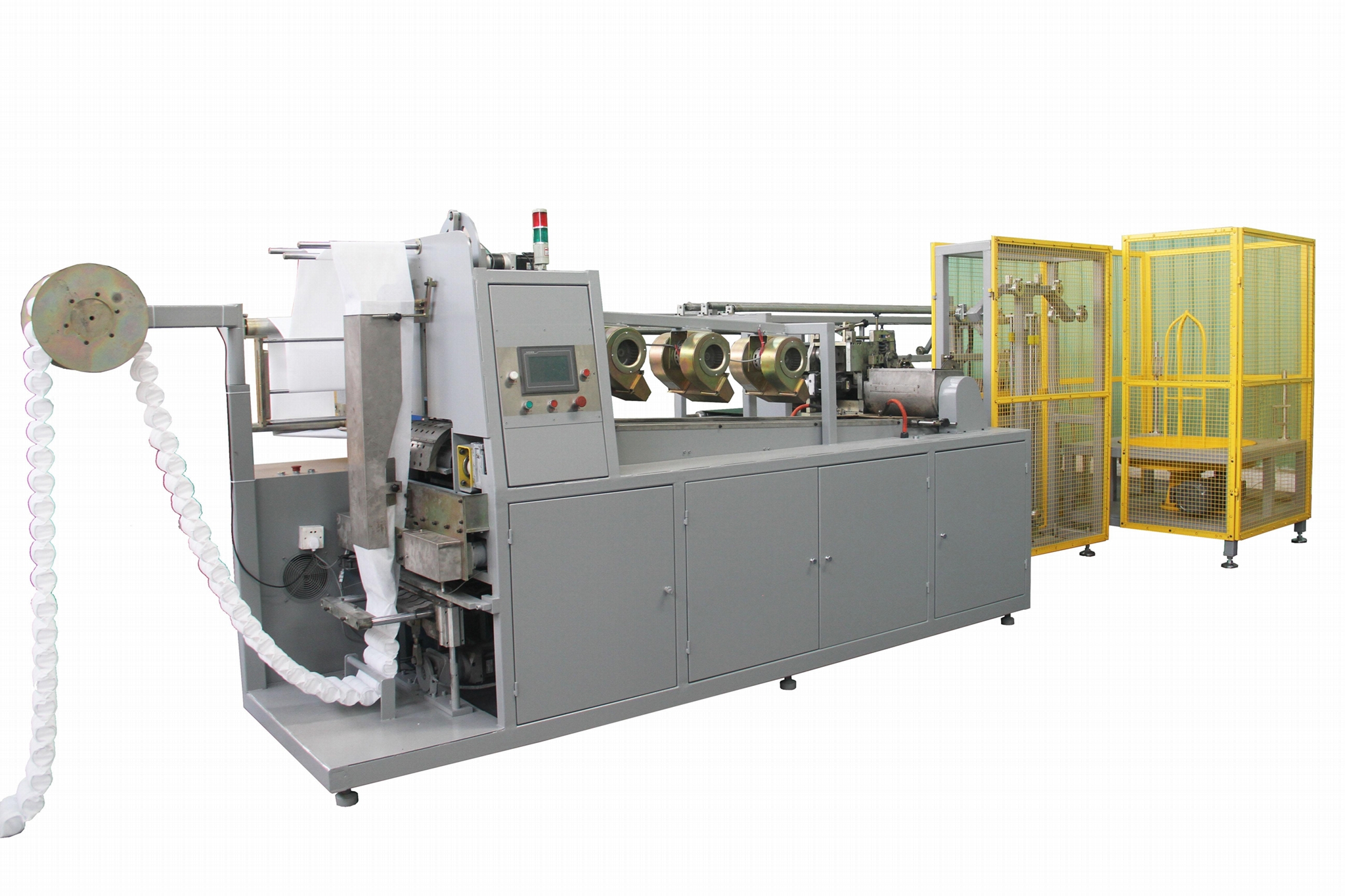

P309 Pocket Spring Machine

This is machine maninly used for producing center-welded pocket spring rows for upholstered spring mattresses. This automatic pocket spring machine  is controlled by PLC and touch screen, and can run automatically.
1. The coiling part of this machine is controlled by servo motor.Technical parameters can be preset and automatically stored within certain range for use whenever needed.Changing to different specifications can be realized without adjustment of the coiling device.It is easy to install and with high safety.

2. It produces center-welded pocket spring rows without spring-upright process,to avoid pocket breakage.

3. Equipped with automatic cutting device for spring rows.

4. Equipped with accident detector safety device, automatically stops when no material.

Technical characteristics: ( Bonnell spring coiler machine)

1. Electronically controlled coiling head;

2. Computerized spring dimension setting system;

3. Computerized various spring data saving system;

4. Automatic pocket strings cutting device;

5. Accurate servo spring conveyor system;

6. Intelligently automatic alarm system;

7. Flexible heat treatment device;

8. Smart joint device for non-woven fabric roll;

9. Various customized ultrasonic welding seam;

10. Low and easy maintenance.

Special Option,if desired:

1. Zoning pocket string is possible;

2. Avaliable for spring in hour-glass shape, pyramid shape,PPS type and so on.

Main Specification: ( Bonnell spring coiler machine)
