| Model: | MKW2 |
|---|---|
| Brand: | Techcrepower |
| Origin: | Made In China |
| Category: | Security & Protection / Access Control System |
| Label: | keypad accesscontrol , access control , rfid controller |
| Price: |
US $40
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:31 Jul, 2020 |

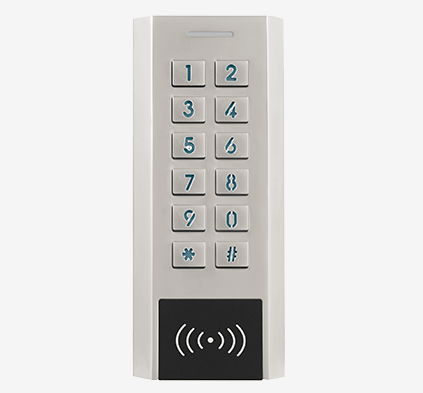

MKW2 is a new generation compact keypad access control,the key is all metal and the key frame is hidden.
IP66 water-proof design,suitable for outdoor applications.
| User Capacity | 1000 |
| Common User | 998 |
| Panic User | 2 |
| Operating Voltage | 12~28V AC/DC |
| Idle Current | < 35mA |
| Proximity Card Reader | EM |
| Radio Technology | 125KHz Proximity Card |
| Read Range | 2~6 cm |
| Wiring Connections | Relay output, exit button, alarm, door contact, Wiegand input, Wiegand output |
| Relay | One (NO, NC, Common) |
| Adjustable Relay Output Time | 0~99 Seconds (5 seconds default) |
| Lock Output Load | 2 Amp Maximum |
| Wiegand Interface | Wiegand 26~37bits |
| Wiegand Input | 26~37bits |
| Wiegand Output | 26~37bits |
| PIN Output | 4 bits, 8 bits(ASCII), 10 digits Virtual Number |
| Environment | Meets IP66 |
| Operating Temperature | -40 ℃ ~ 60 ℃ (-40 ℉ ~ 140 ℉) |
| Operating Humidity | 0%RH ~ 98%RH |
| Physical | Zinc-Alloy |
| Color | Silver |
| Dimensions | 13.4L * 5.5W * 2.1H (cm) |
| Unit Weight | 340g |
| Shipping Weight | 420g |
