| Model: | TUF-2000P |
|---|---|
| Brand: | AERMANDA |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Instrument / Air & Gas Flowmeter |
| Label: | flow meter , bracket transducer , ultrasonic flowmeter |
| Price: |
US $545
/ Piece
|
| Min. Order: | 1 Piece |
| Live Chat: | Last Online:22 Mar, 2024 |
Features:
|
Items |
|
Performance & Parameter |
|
Main unit |
Principle |
Transit time ultrasonic flowmeter |
|
Accuracy |
± 1% |
|
|
Display |
2×20 character LCD with backlight, support the language of Chinese, English and Italian |
|
|
Signal Output |
1 way 4-20mA output, electric resistance 0~1K, accuracy 0.1% |
|
|
1 way OCT pulse output(Pulse width 6~1000ms, the default value is 200ms) |
||
|
1 way relay output |
||
|
Signal Input |
3 way 4-20mA input, accuracy 0.1%, acquire signals such as temperature, press and liquid level. |
|
|
Achieve to heat measurement by connecting the temperature transducer PT100. |
||
|
Data Interface |
Insulate RS485 serial interface, upgrade the flowmeter software by computer, support MODBUS |
|
|
Data Record |
Thermal printer, external SD card(2G of capacity) |
|
|
Pipe Installation Condition |
Pipe Material |
Steel, Stainless steel, Cast iron, Copper, Cement pipe, PVC, Aluminum, Glass steel product, liner is allowed. |
|
Pipe Diameter |
15~6000mm |
|
|
Straight Pipe |
Transducer installation should be satisfied: upstream 10D, downstream 5D, 30D from the pump. |
|
|
Measuring Medium |
Type of Liquid |
Single liquid can transmit sound wave, such as water, sewage, oil, chemicals, plant effluent, beverage, ultra-pure liquids, etc. |
|
Temperature |
-30~160°c |
|
|
Turbidity |
Less than 10000ppm and little bubble |
|
|
Flowrate |
0 ~ ±7m/s |
|
|
Working Environment |
Temperature |
main unit: -20~60°c; Transducer: -30~160°c |
|
Humidity |
main unit: 85%RH; Transducer protection level: IP67 |
|
|
Power Supply |
8 built-in Ni-MH batteries 1.2V(for over 20 hours of operation). Could operate 8 hours by connecting 4-20mA signal output. 90V - 260V AC adapter |
|
|
Power Consumption |
1.5W |
|
Optional Transducers:
|
Types |
Spec. |
Model |
Measure range(mm) |
Temperature |
Size |
|
Clamp on |
Small |
TS-2 |
DN15~100 |
-30~90℃ |
42×25×32mm |
|
Medium |
TM-1 |
DN50~700 |
-30~90℃ |
69×39×44mm |
|
|
Large |
TL-1 |
DN300~6000 |
-30~90℃ |
97×54×53mm |
|
|
High temperature clamp on |
Small |
TS-2-HT |
DN15~100 |
-40~160℃ |
45×25×32mm |
|
Medium |
TM-1-HT |
DN50~700 |
-40~160℃ |
64×39×44mm |
|
|
Large |
TL-1- HT |
DN300~6000 |
-40~160℃ |
97×54×53mm |
|
|
Mounting bracket clamp on |
Small |
HS |
DN15~100 |
-30~90℃ |
318×59×85mm |
|
Medium |
HM |
DN50~300 |
-30~90℃ |
568×59×85mm |
|
|
Extended |
EB-1 |
DN300~700 |
-30~90℃ |
188×59×49mm |
|
|
High temperature mounting bracket clamp on |
Small |
HS-HT |
DN15~100 |
-40~160℃ |
318×59×110mm |
|
medium |
HM-HT |
DN50~300 |
-40~160℃ |
568×59×110mm |
|
|
extended |
EB-1-HT |
DN300~700 |
-40~160℃ |
188×59×49mm |
Standard Packing:
1. TUF-2000P Ultrasonic Flowmeter
2. HM Mounting Bracket Transducer
3. EB-1 Extended bracket
4. Signal cable
5. Fixed bandage
6. Charger
7. Ruler
8. Printing paper

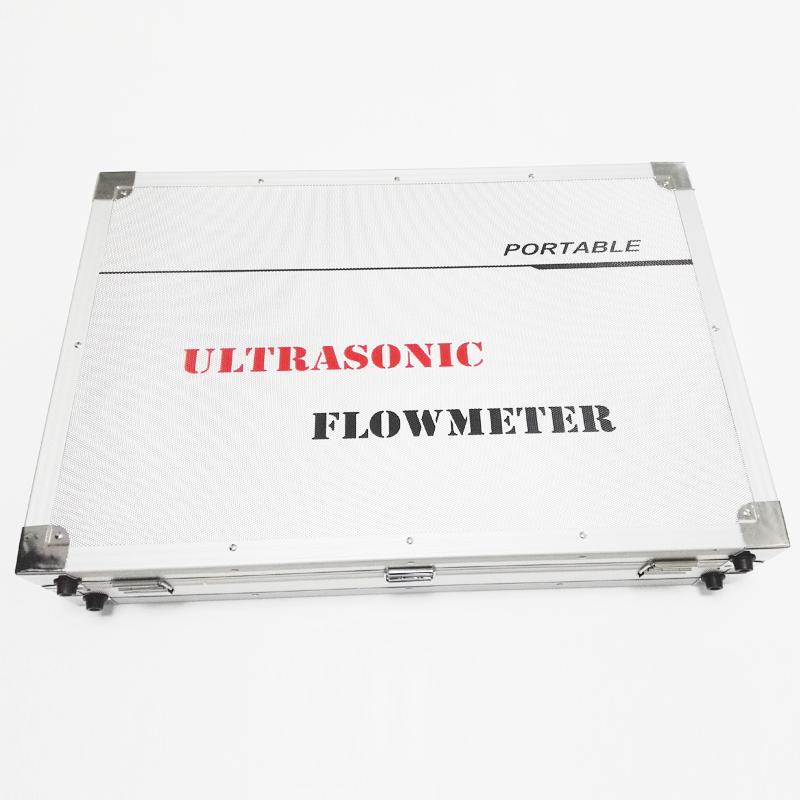

9. Carring box
If you need other transducer, please contact us.
