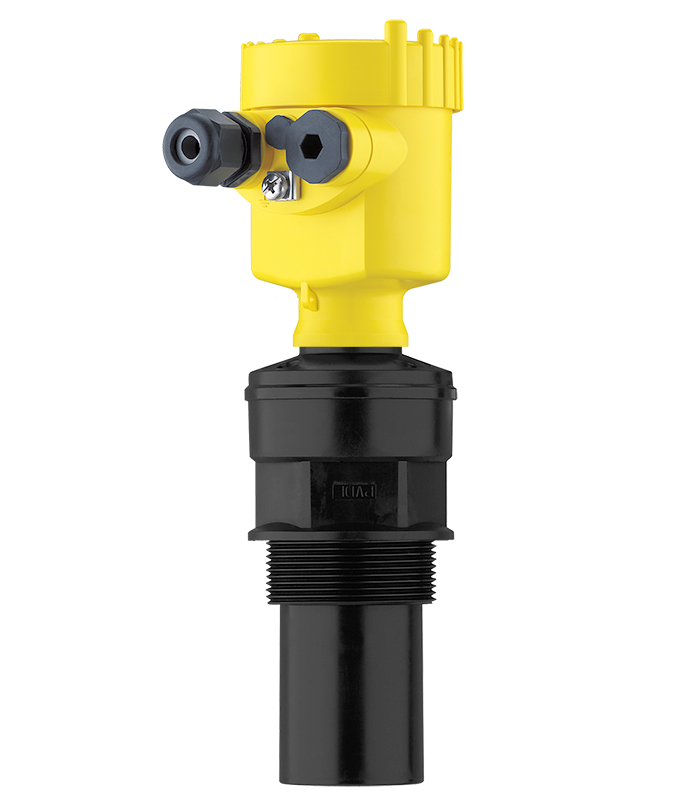

VEGASON 62

Ultrasonic sensor for continuous level measurement

VEGASON 62

Application area

Liquids and bulk solids in small vessels

The VEGASON 62 is an ultrasonic sensor for continuous level measurement of liquids and bulk solids. Typical applications are the measurement of liquids in storage vessels or open basins. The sensor is also suitable for the detection of bulk solids in small vessels or silos. Application areas can be found in all industries. The non-contact measuring principle is unaffected by product features and allows a setup without medium.

Your benefit

• Price-favourable solution for simple applications
• Maintenance-free operation through non-contact measuring principle
• Reliable measurement independent of product features

Technical data

Measuring-range---Distance

8 m

Process-temperature

-40 ... 80 °C

Process-pressure

-0.2 ... 2 bar

Accuracy

± 10 mm / ± 0.4"

Materials,-wetted-parts

PVDF

Threaded-connection

≥ G2, ≥ 2 NPT

Seal-material

• EPDM
• FKM

Housing-material

• Plastic
• Aluminium
• Stainless steel (precision casting)
• Stainless steel (electropolished)

Protection-rating

• IP 66/IP 68 (0.2 bar)
• IP 66/IP 67
• IP 66/IP 68 (1 bar)

Output

• Profibus PA
• Foundation Fieldbus
• 4 … 20 mA/HART - two-wire
• 4 … 20 mA/HART - four-wire

Ambient-temperature

-40 ... 80 °C
