| Model: | ceramic ball |
|---|---|
| Brand: | XINTAO |
| Origin: | - |
| Category: | Metallurgy , Mining & Energy / Metallurgy & Mining / Other Metallic |
| Label: | zirconia ball , milling ball , Grinding Medium |
| Price: |
US $1.28
/ KG
|
| Min. Order: | 100 KG |
| Live Chat: |  | Last Online:09 Jun, 2018 |

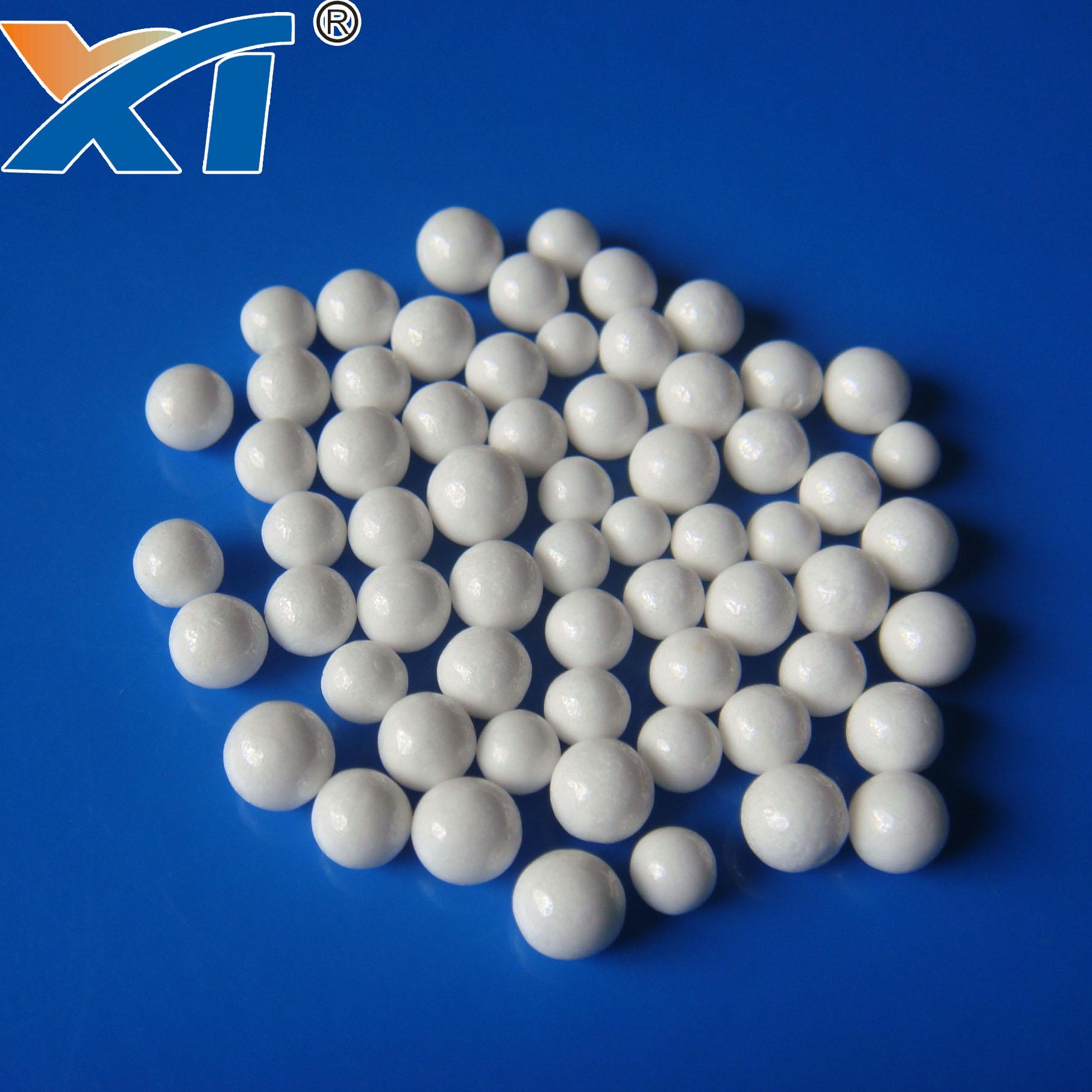

Zirconium products are with high strength, high fracture toughness, a large proportion of the wear-resistant, ppm wear grade, high hardness, corrosion resistance, ultra-smooth surface features and etc.
TZP grinding media with very low wear and high fracture toughness is widely applicable to various grinding and dispersion conditions, and to ensure the product's purity and life.
Technical Data:
|
Items |
Unit |
Data |
|
Composition |
wt% |
94.8% ZrO2 |
|
5.2% Y2O3 |
||
|
Packed Density |
Kg/L |
3.5(Φ5mm) |
|
Specific Density |
g/cm3 |
5.95-6.00 |
|
Hardness(HV) |
GPa |
>11 |
|
Elastic modulus |
GPa |
200 |
|
Thermal Conductivity |
W/m.K |
3 |
|
Crushing strength |
KN |
≥20 (dia 7mm) |
|
Fracture Toughness |
MP am1/2 |
8 |
|
Grain size |
μm |
≤0.5 |
|
Size:dia0.8,dia1.0,dia1.2,dia1.4,dia2,dia3,dia5,dia6.5,dia7,dia8.5,dia10,dia12,dia15,dia20,dia25,dia30
|
||
