| Model: | AHEM0141-01 |
|---|---|
| Brand: | HEM |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 1.41‘’ AMOLED , AMOLED LED Screen , AMOLED 1.41'' MIPI |
| Price: |
US $20
/ pc
|
| Min. Order: | 10 pc |
| Live Chat: | Last Online:19 Jun, 2019 |

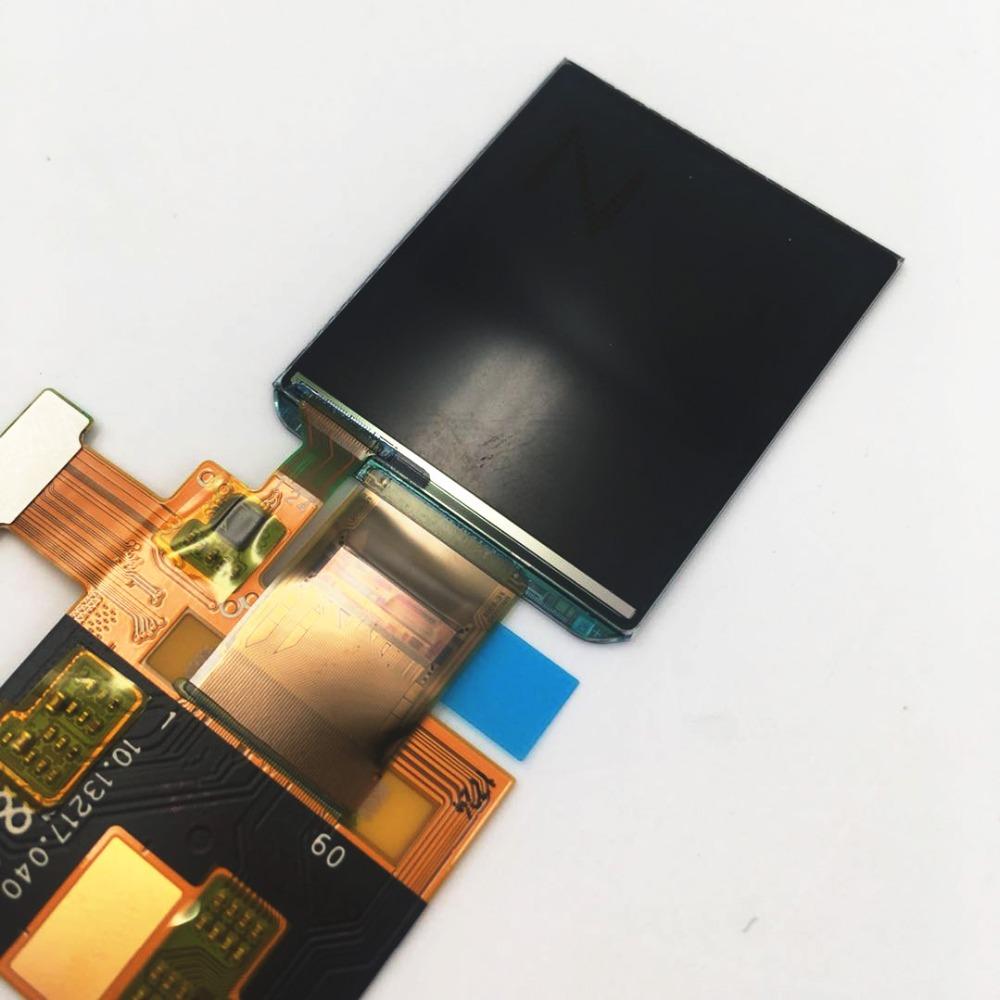

Super thin AMOLED-0.78mm thickness! Perfect for smart watch!
Small molecular organic light emitting diode (OLED)
Self-luminous
Color: RGB
Panel Matrix: 320(w)*(RGB)*360(h)
Driver IC: RM67162
Interface: MIPI
Excellent quick response time: 10 μS
Extremely thin thickness for best mechaniam design: 0.20 mm
High contrast: 10000: 1
Wide viewing angel: 160°
Wide range operating temperature: -20 to 70 ºC
Anti-glare polarizer
High brightness, Sunlight Readable
low power consumption
Brightness: 350 cd/m2
Mechanical Datas:
|
NO |
ITEM |
SPECIFICATION |
UNIT |
|
1 |
Dot Marrix |
320(W) x RGB x 360(H) |
dot |
|
2 |
Dot Pitch |
74.49(W) x 74.49(H) |
μm |
|
3 |
Active Area |
23.84(W) x 26.82(H) |
mm |
|
4 |
Panel Size |
26.04(W) x 31.78(H) |
mm |
|
5 |
Panel Thickness |
0.78 |
mm |
|
6 |
Module Size |
26.04(W) x 31.78(H) x 0.78(T) |
mm |
|
7 |
Diagonal A/A Size |
1.41 |
inch |
