| Model: | FRT003 |
|---|---|
| Brand: | FRT |
| Origin: | Made In China |
| Category: | Industrial Supplies / Metallurgy Machinery |
| Label: | reinforced concrete , concrete pipe mold , pipe machine |
| Price: |
US $4500
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:28 Jul, 2018 |

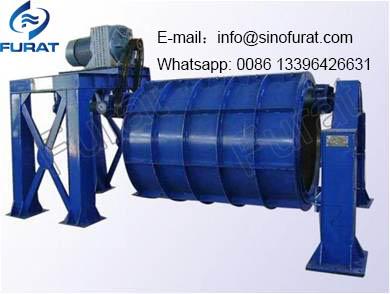

Reinforced concrete spun pipe mould
Concrete culvert pipe mold fall into two types according to the way of connection of shaped drain pipes:rigid joint and flexible joint and divided into three types according to the joint shape of shaped drain pipes: plain top, tongue and groove, bell and spigot, pipe mold fall into ONE,TWO THREE grades according the grade difference of external pressure load of shaped drain pipes.
Technical parameters of concrete pipe mold
| Mold Diameter(mm) | Cylinder thickness | Hooped Longitudinal Reinforcement |
| 300-600 | 6mm | 8mm*60mm |
| 800-1000 | 8mm | 10mm*80mm |
| 1200-1500 | 10mm | 12mm*120mm |
| 1500-2000 | 10mm | 14mm*150mm |
