ZTW Agricultural Drones ESC Spider PRO 100A HV
Product Description
| Product Model |
|
Spider PRO 100A HV |
| Model Number |
|
5100421 |
| Form |
Brush / Brushless |
Brushless |
| |
HV / Normal |
HV |
| Hardware Parameters |
Continuous Current (A) |
100A |
| |
Burst Current(A) |
120A |
| |
Battery Cell (NiXX/Lipo) |
18-38NC/6-12Lipo |
| |
BEC Output |
/ |
| Dimensions |
Width |
36.5mm |
| |
Length |
76mm |
| |
Height |
20mm |
| |
Weight |
95g |
| Wire & Plug |
Power Wire |
12＃AWG,360mm-Red/360mm-Black |
| |
Motor Wire |
14＃AWG,980mm-Black |
| |
Signal Wire |
(Black-White stranded wire) 30C,add a common JR male connector at the end of 420mm wire |
| |
Power Plug (Yes/No) |
no |
| Parameter programming |
Transmitter |
no |
| |
Jumper programming card |
|
| |
LCD programming card |
|
| |
WiFi programming card |
|
| |
USB adapter |
|
| Firmware |
Upgrade Firmware online (Yes/No) |
|

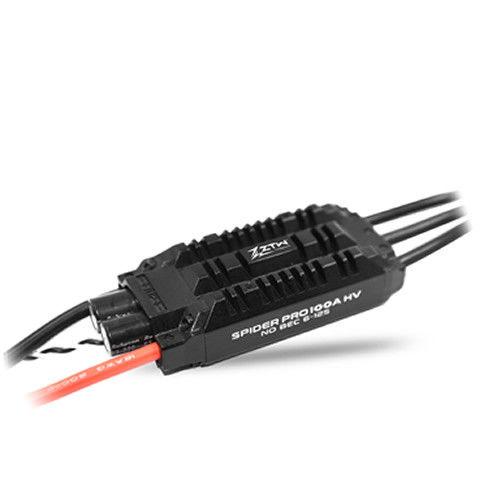

Product Image
Img 1
