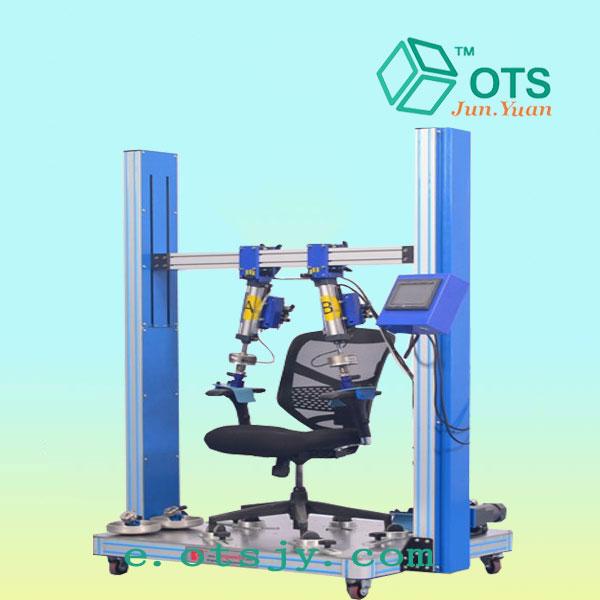

Chair Armrest Tester



Product description:
The test machine armrest office chair assess the bear along the horizontal direction, vertical direction under pressure, and office chair armrest under cyclic side pressure (with a plumb line into 10-degree angle) the role of endurance to judge office chair handrails compressive strength

Design Standard: ANSI / BIFMA X5.1-2002

The main technical parameters:

Urging means stroke: 700-1100mm

Shi arm length: 23.6in (600mm)

Urging load: 50Lb-300Lb or designated

Armrest height: 500-900mm adjustable

Test speed: 5 to 40 beats / min or designated

Vertical pressure plate: ¢ 127 ± 13 mm

The horizontal axis is fixed armrest: width not exceeding 25mm

Count (time) is: LCD, 0 ~ 999,999 times, from 0 to 99 when 99 minutes

Machine dimensions: Host: (L × W × H) 2500 × 900 × 1700mm;

  Control box: (L × W × H) 450 × 380 × 1250 mm

Weight: 290kg

Power: 1∮, AC220V, 50HZ, 5A
