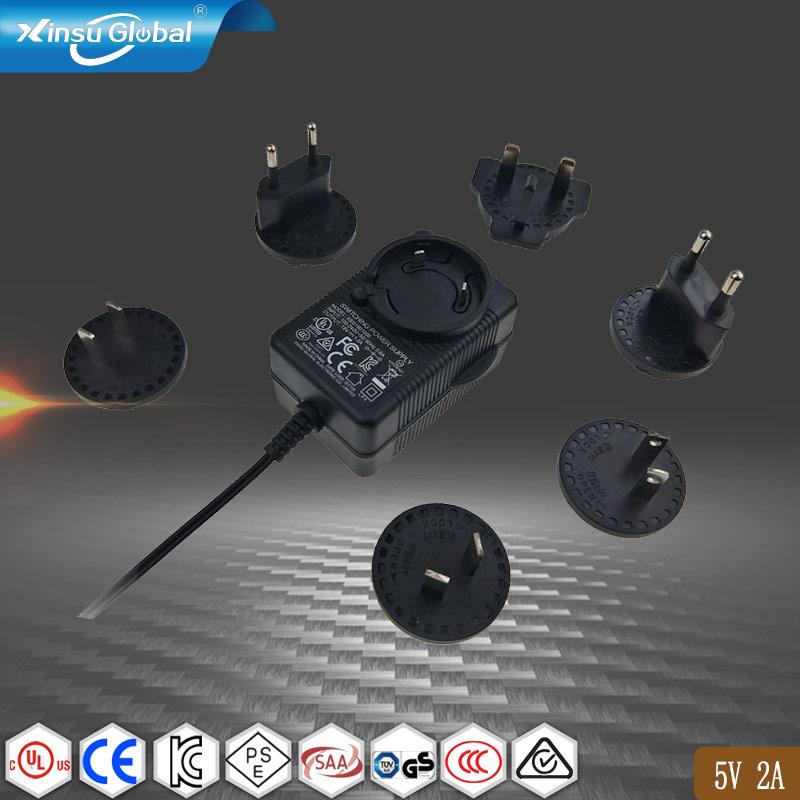

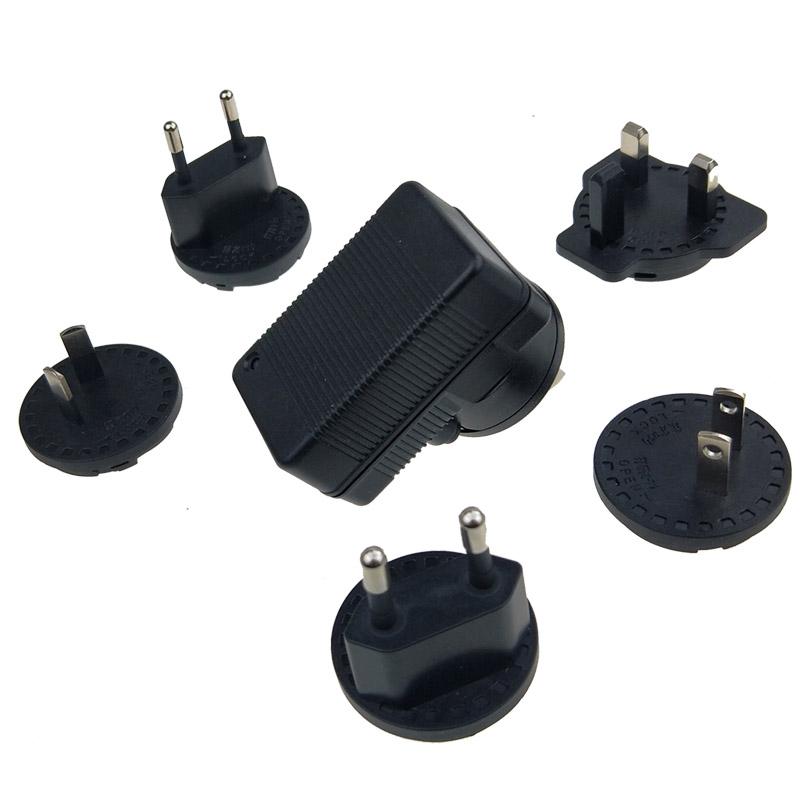

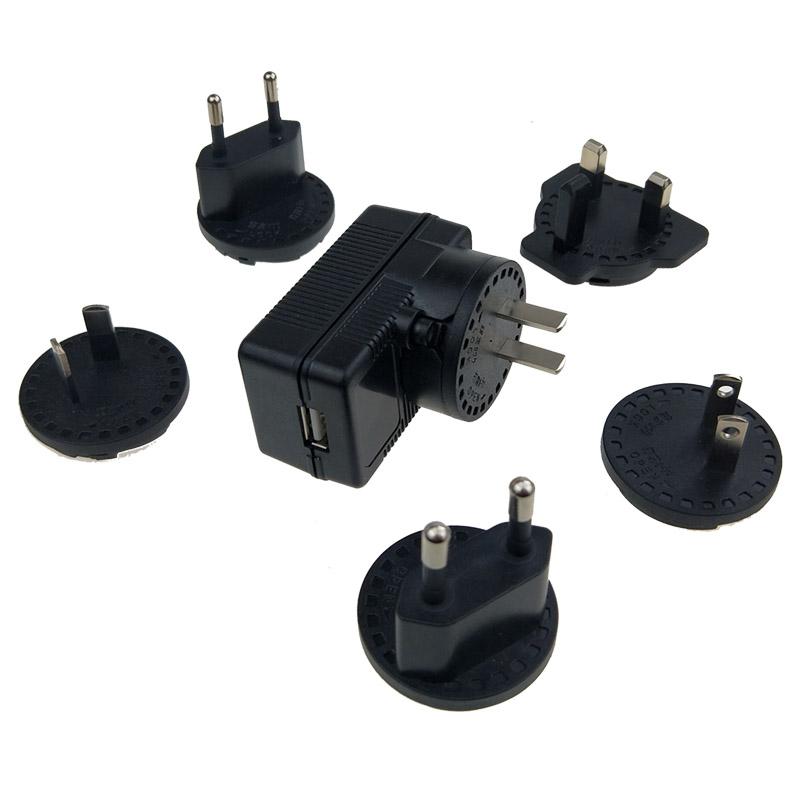

5v 2a ac dc power adapter with interchangebale plug
Product Description
|
Output voltage
|
5VDC
|
|
Output current
|
2A
|
|
Plug
|
US, EU, AU, UK, JP, KR, CN for optional
|
|
DC size
|
5.5*2.1*10mm;5.5*2.5*10mm;D-TAP, XLRF…etc.
|
|
DC cable length
|
1.2m ..etc.
|
|
Features
|
|
Input Voltage range:
|
90～264Vac
|
|
Reted input voltage:
|
100～240Vac
|
|
InputFrequency Range:
|
47～62hz
|
|
Output voltage tolerance:
|
±5%
|
|
Operating Temp:
|
0℃～+45℃
|
|
Storage Temp:
|
-30℃～+70℃
|
|
Relative Humidity:
|
10%～90%
|
|
Vibration and shock
|
Meet MIL-STD-810D
|
|
Over current protection
|
PASS
|
|
Over voltage protection
|
|
Short circuit protection
|
|
Over Temp protection
|
|
Safety standard
|
EN62368 EN60065 EN60950,EN61558,EN60335
|
|
EMC/EMI
|
Meet FCC CLASS B,EN55022 CLASS B.
|
|
Certificates
|
CE ROHS FCC UL cUL PSE KC SAA RCM TUV/GS CB
|
|
Drop Test
|
As per UL regulation
|
|
Burning test
|
100%
|
|
Efficiency level
|
DOE VI
|
|
Life of the unit
|
50000hours
|
Contact:
Tian
Email: xsg27@xinsuglobal.com
Phone: +8618598093338
QQ: 1597116091
|
| |
|
| |
| Payment Terms: | TT or Paypal |
| |
Product Image
Img 1
Img 2
Img 3
Img 4
Img 5
Img 6
Img 7
Img 8
Img 9
Img 10
Img 11
Img 12
Img 13
Img 14
Img 15
Img 16
