Full Automatic Finger Jointing Line ,SH6100FJL
Product Description
| Automatic finger Jointing Line |
| Model |
SH6100FJL |
| Feeding length |
120-900mm |
| Feeding width |
430-500mm |
| Height of shapering |
12-150mm |
| Length of jointing |
1050-6200mm |
| Width of jointing |
30-150mm |
| Thickness of jointing |
12-80mm |
| Max. jointing force |
12T |
| Max. productivity |
20m3/h |
| Total power |
55kw |
| Air pressure |
0.6-0.8Mpa |
| Weight |
11500kgs |
| Outline size |
12500x5000x1700mm |

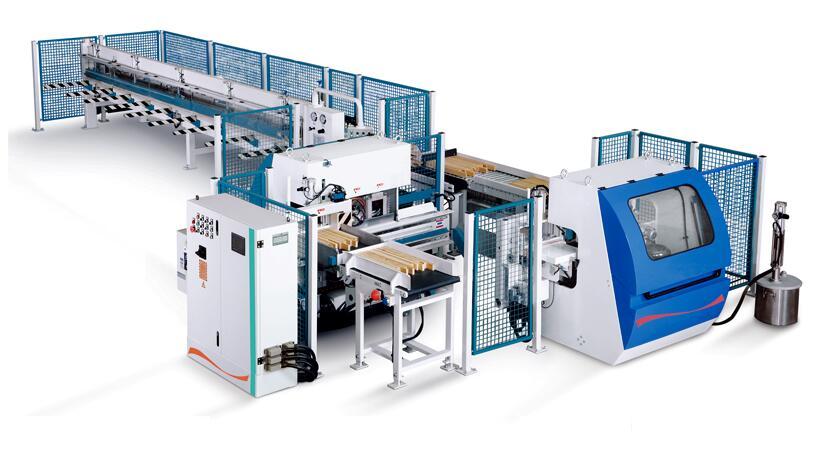

Product Image
Img 1
Img 2
