| Model: | DT |
|---|---|
| Brand: | Wanxie |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Terminal |
| Label: | Copper cable lugs , terminal connector , terminal lug |
| Price: |
US $1
/ pc
|
| Min. Order: | 1000 pc |
| Live Chat: | Last Online:08 Nov, 2017 |

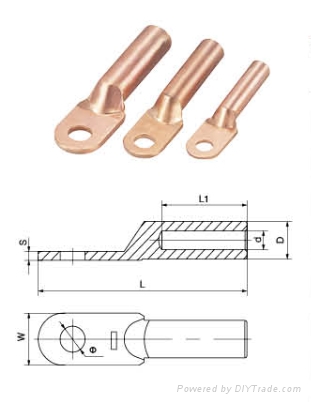

| Type | Main Dimensions(mm) | |||||||
| Φ | D | d | L | L1 | W | S | ||
| DT-10 | 8.4 | 9 | 5.5 | 66 | 30 | 16 | 2.2 | |
| DT-16 | 8.4 | 10 | 6.0 | 67 | 31 | 16 | 2.5 | |
| DT-25 | 8.4 | 11 | 7.0 | 70 | 34 | 16 | 3.0 | |
| DT-35 | 10.5 | 12 | 8.5 | 79 | 36 | 20 | 3.0 | |
| DT-50 | 10.5 | 14 | 9.6 | 87 | 40 | 23 | 3.5 | |
| DT-70 | 12.5 | 16 | 12.0 | 95 | 44 | 26 | 4.0 | |
| DT-95 | 12.5 | 18 | 13.0 | 105 | 47 | 26 | 4.5 | |
| DT-120 | 14.5 | 20 | 15.0 | 112 | 50 | 30 | 5.0 | |
| DT-150 | 14.5 | 22 | 16.0 | 118 | 54 | 34 | 5.5 | |
| DT-185 | 16.5 | 25 | 18.0 | 125 | 56 | 38 | 6.0 | |
| DT-240 | 16.5 | 27 | 20.0 | 136 | 60 | 42 | 7.0 | |
| DT-300 | 21.0 | 30 | 23.0 | 160 | 65 | 48 | 8.0 | |
| DT-400 | 21.0 | 34 | 26.0 | 165 | 70 | 54 | 9.0 | |
| DT-500 | Square head | 38 | 29.0 | 190 | 75 | 64 | 9.5 | |
| DT-630 | Square head | 45 | 34.0 | 220 | 85 | 78 | 10.0 | |
| DT-800 | Square head | 50 | 38.0 | 260 | 85 | 100 | 10.5 | |
Waie DT series oil pl ing copper terminal connector double hole terminal
| Payment Terms: | TT/LC |
|---|---|
