Range of application

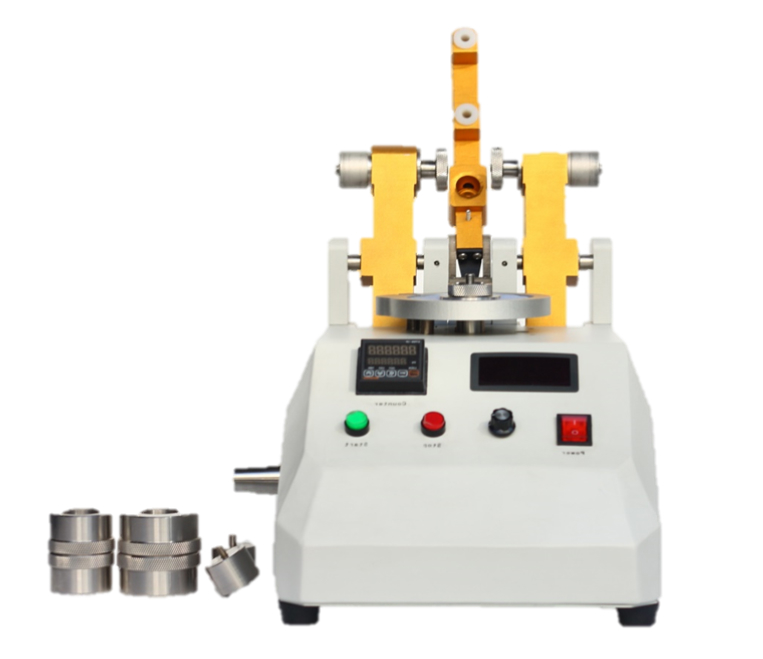

TABER abrasion resistance tester and wear resistance tester can be replaced by wheel and weight,
which apply to the abrasion resistance performance test on fabric, cardboard, paint, leather, tile, glass and natural rubber,
method is simple and easy to operate,which has been widely used in various industry's testing laboratory.
Abrasion tests, the material is standard wheel friction after a certain number of turns,
evaluate its abrasion resistance material weightlessness rate by calculation.
Abrasion wheel after pre grinding standard method, test results can reach very high consistency.

Core advantages
Simple operation, display real-time speed, the speed control can be achieved 30-75rpm adjustment,
wearing can be preset number of turns. Arm can match with balance weights, accurate weight balance abrasion arm,
to realize the ASTM standard which requires 125 g pressure requirements
Vacuuming mouth height is adjustable, and adapt to different thickness materials, efficient removal of debris, improve test accuracy
Brand motor, mute, low noise, smooth operation

Applicable Standards
ISO 9352, ISO 5470, ISO 7784, ASTM D1044, ASTM D3884, ASTM D4060, GB/T 5137.1, QB/T 2726, DIN 53109

Features:
Operation panel with LCDscreen, display real-time speed with speed button, 30-75rpm speed adjustable.The number of wear cycles can be preset, setting range 1-999999 times.
The rear arm can precisely balance the weight of the worn arm with balance weights to meet the 125 g pressure according to the ASTM standard, as well as other standards and special pressure requirements.
Vacuum pump suction height is adjustable to meet material testing in different thickness. Besides, it can be efficiently eliminate debris to improve test accuracy.
