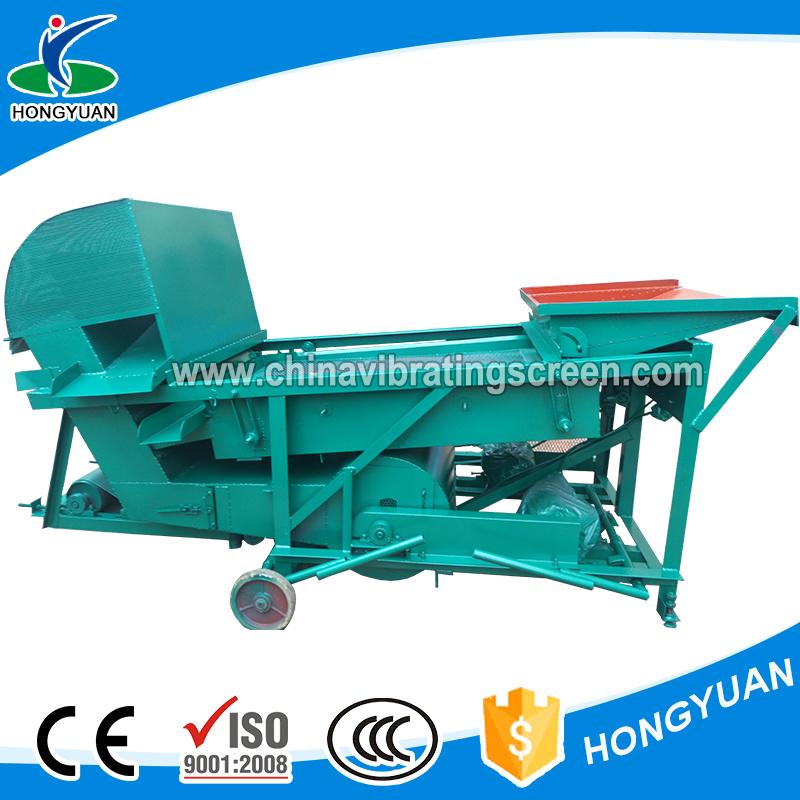

Moldy corn Removing Machine Winnowing Grading Machine

Product Description

Moldy corn Removing Machine Winnowing Grading Machine is one kind of grain feed cleaning machine which combine 3 screen layers which with different aperture size and air blower for mainly removing the dust, impurities, grain straw, big coarse, leaves etc. The screen mesh can be replaced as per different grain size. It has a wide application for corn , wheat, barley,  sesame, sunflower seeds, rape seeds etc. The cleaning rate could be 99%.

Attribute

Type:Grain Processing Equipment
Capacity:8T/H
Machine Power:3kw
Airblower Power:4KW
Electricity:3 phase-380V-50HZ
Raw material:Carbon Steel
Use:cleaning/sieving/separating/sorting seeds
Application:Cereal Grains rape seed

Working Principle

There are three screen decks of this machine. At first,the the front screen will sort out the dust and similar impurities. Then the main fan will suck it out at last part. First screen deck is for the big impurities, second decks for cleaning grain, third decks is for broken grain seed and dust etc.

As per demand, there are two types of machine which one is only for cleaning and sieving. It can be discharged from outlet directly after sieving.

And another one is cleaning sieving machine with throwing device. After the grains finished cleaning, it will be casted out by Grain throwing device to realize sort out the stone and mildew grains. This machine also solves the question of feeding grains after screened. The grain granule can be thrown straight line shape, throwing distance can reach 6-8 meters, the machine without food conveyor belt can be directly run into the house of the rolls, it is also called "grain winnower".

Working Performance

After processed by Grain cleaning machine,grains will more clean and quality will be improved. It will be better for both next milling procedure or selling in the market, which make it becomes one of the most favorite grain cleaners in the global market.

Before Sifting

There will be seed pot, seed skin, light impurities dust and other coarse inside the rape seed after harvesting from the ground.

After Sifting

After sifting, the coarse dust impurities could be removed and separated totally, the cleaning rate could be 99%.
