| Model: | 1325 |
|---|---|
| Brand: | LD |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machinery / Machine Tool |
| Label: | stone cnc machine , stone/marble cnc rou , 1325 stone cnc |
| Price: |
US $5100
/ set
|
| Min. Order: | 1 set |
| Live Chat: | Last Online:29 Jul, 2017 |
Features:
1. Whole machine seamless weld steel structure, good rigidity, sturdy and durable, can bear 1MT weight at least.
2. Three axes adopt imported Taiwan PMI square guide rails, two linear sliding track; Y axis adopts double drivers, big load, good stability, high precision, long lifetime.
3. Three-axis all have the waterproof and dustproof system, and automatic oil supplier makes the maintenance operation easily.
4.Independent control cabinet, and CNC Router anti-jamming dedicated shielded wire, senior configuration; 3KW constant power water cooling spindle with the imported bearing, large force, high efficiency.
5.Built-in water tank and automatic double direction cutters cooling system protect the tool effectively while processing all kinds of stone.
6.NC studio control system show the whole Manufacturing process, The whole NC control system include one control card install into control box,and one disk,need to install in your PC.Then control the whole machine move (include X axis move left and right,Y axis move back and forth ,Z axis move up and down ).
Application:
1.Stone material: natural marble, granite, artificial stone, tombstones, stone, jade carving and processing.
2.Decoration categories: ceramics, crystal, glass, plastic, chemical synthetic organic glass board, PVC
board, wood, plastic, metal, plastic materials, such as line carve, 2d, 3d bottom tip carving, 3d relief,
cutting, edge, drilling.
Parameter:
| Model: | LD-1325 |
| X,Y-axis working area | 1300*2500mm |
| Body dimensions(with bracket) | 2900*1750*1400mm |
| Z-axis working area | 200 mm |
| Max. Feeding height | 200mm or bigger |
| Cutting thickness of material | ≤40mm |
| Max. travelling speed | 8000mm/min |
| Engraving speed | 0-6000mm/min |
| Mechanical precision | 0.01mm |
| Compatible Software | Type 3 software , Artcut software , Artcam software |
| Max. Power consumption | 3.2KW |
| Power source | 220V/380V |
| Driving system | Servo motor |
| Memory | Without or DSP |
| Spindle | 5.5KW spindle , water-cooled |
| Spindle speed | 0-24000RPM |
| Blade diameter | 3.175mm,4mm,6mm |
| Control system | DSP, USB offline |
| Command | G code, Uoo, mmg, plt, HPGL |
| Running ambient temperature | 0-45°C |
| Relative humidity | 30%-75% |
| Optional items | Rotary axis , vacuum table and dust collector |
Machine Spare Parts :

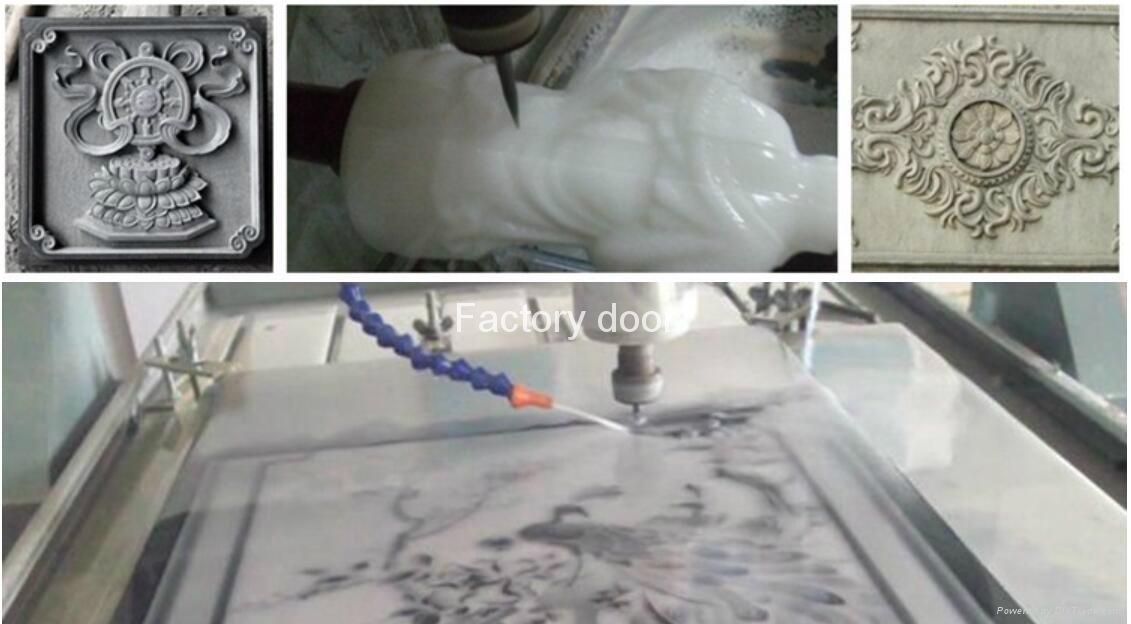

Machine Cutting&Engraving Samples:
LD-Packaging&Shipping
LD-Company Information:
Contact us
| Payment Terms: | T/T, L/C, Western Union ,MoneyGram |
|---|---|
