| Model: | tdp-70 |
|---|---|
| Brand: | xinmei |
| Origin: | - |
| Category: | Industrial Supplies / Other Industrial Supplies |
| Label: | Sponge disc cutter , Disc shearing machin , Sponge cutting machi |
| Price: |
¥10100
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:21 Jul, 2017 |
Main use:

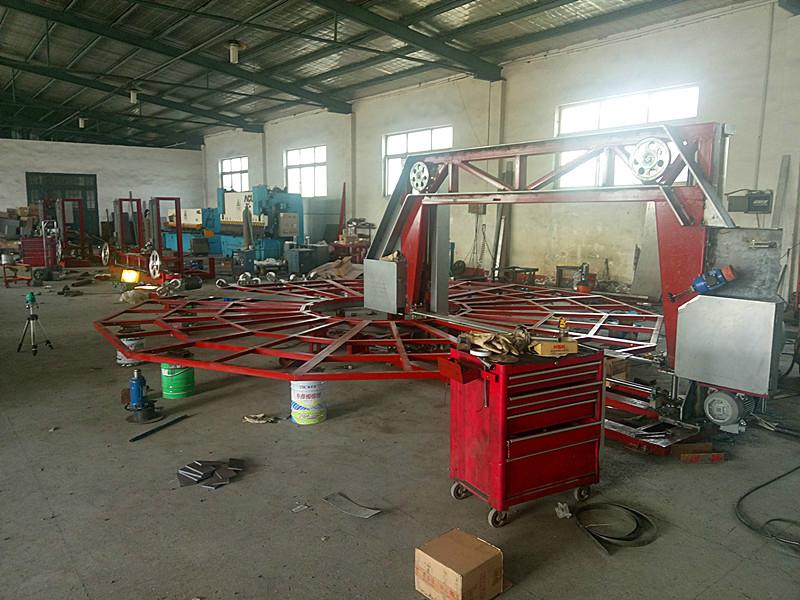

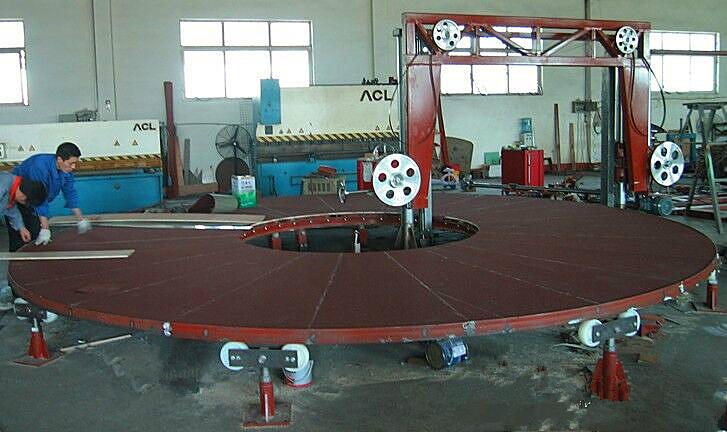

This machine adopts the most advanced import frequency conversion speed control technology drive, digital control, high reliability, accurate cutting. This machine is mainly used for the horizontal horizontal slicing of multiple foam cotton. It can be continuously cut without retreating, and the production efficiency is higher. Specifications：
Model
TDP-60 TDP-70
The knife band length is 8940mm 10000mm
The cutting size is 1500x2000mm 2000x3000mm
The slice thickness is 2-150mm 2-150mm
The knife plate thickness is 5mm 5mm
Working turntable speed 0-3.5 RPM / 0-3.5 RPM / min
Motor power 9.14kw 9.14kw
The weight of the machine is 3800Kg 4000kg
Machine dimensions 7000x6000x2400mm 8000x7000x2400mm
| Payment Terms: | TT |
|---|---|
