| Model: | DGD190Z6/15BT40 |
|---|---|
| Brand: | PODUK |
| Origin: | Made In China |
| Category: | Industrial Supplies / Machine Hardware / Shaft |
| Label: | motor , Electric spindle , spindle for machine |
| Price: |
¥21000
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:24 Jun, 2019 |

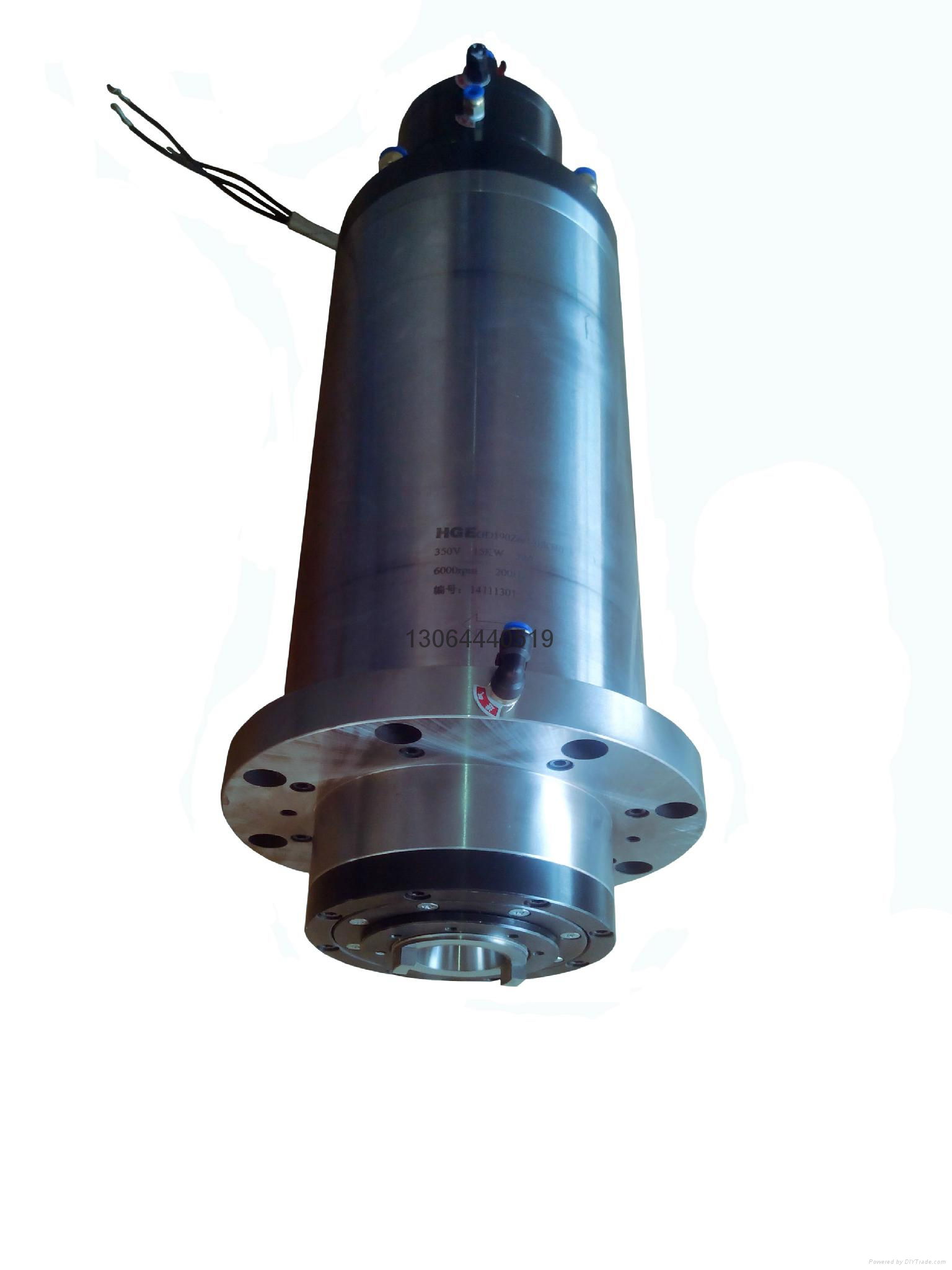

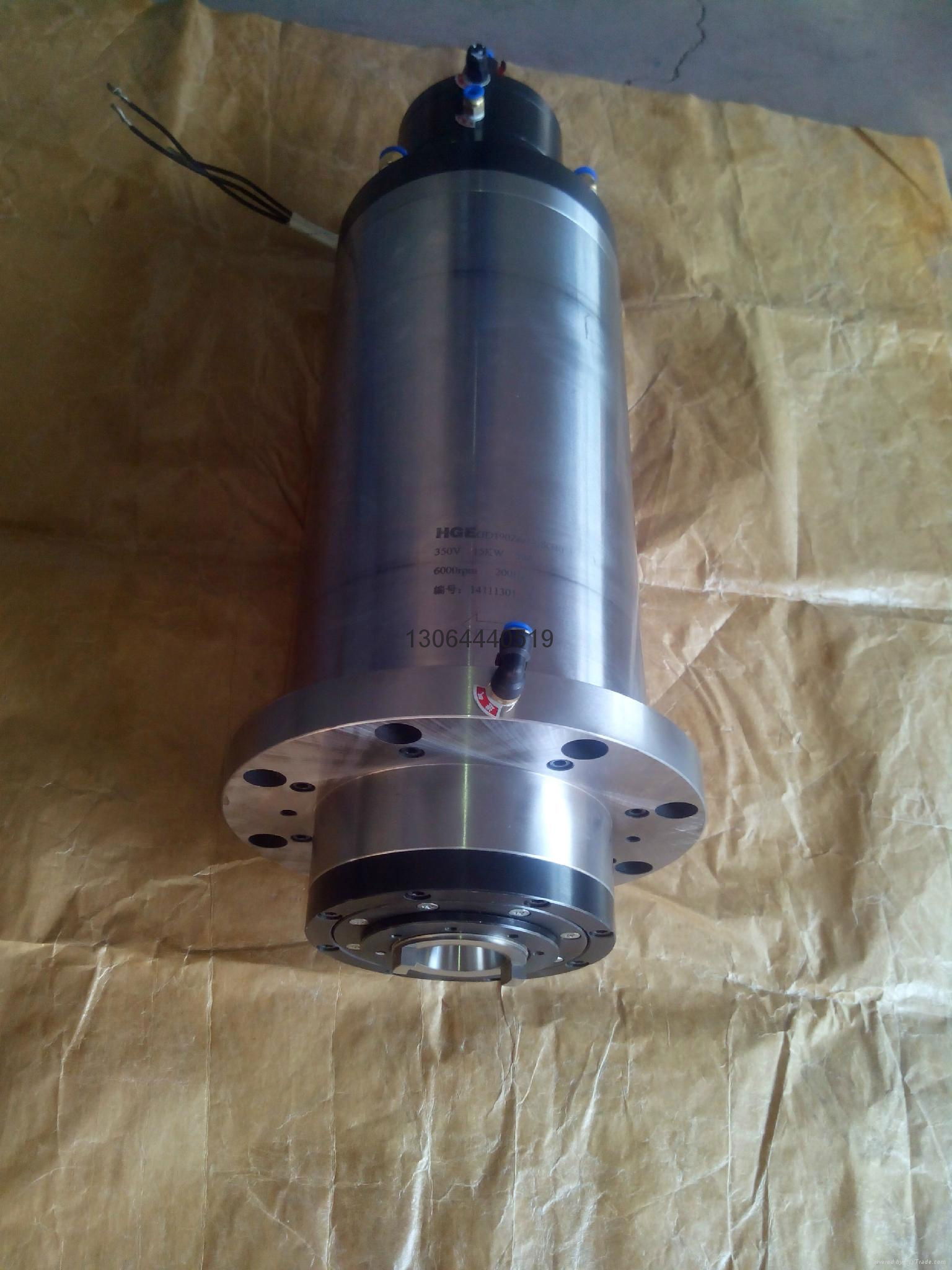

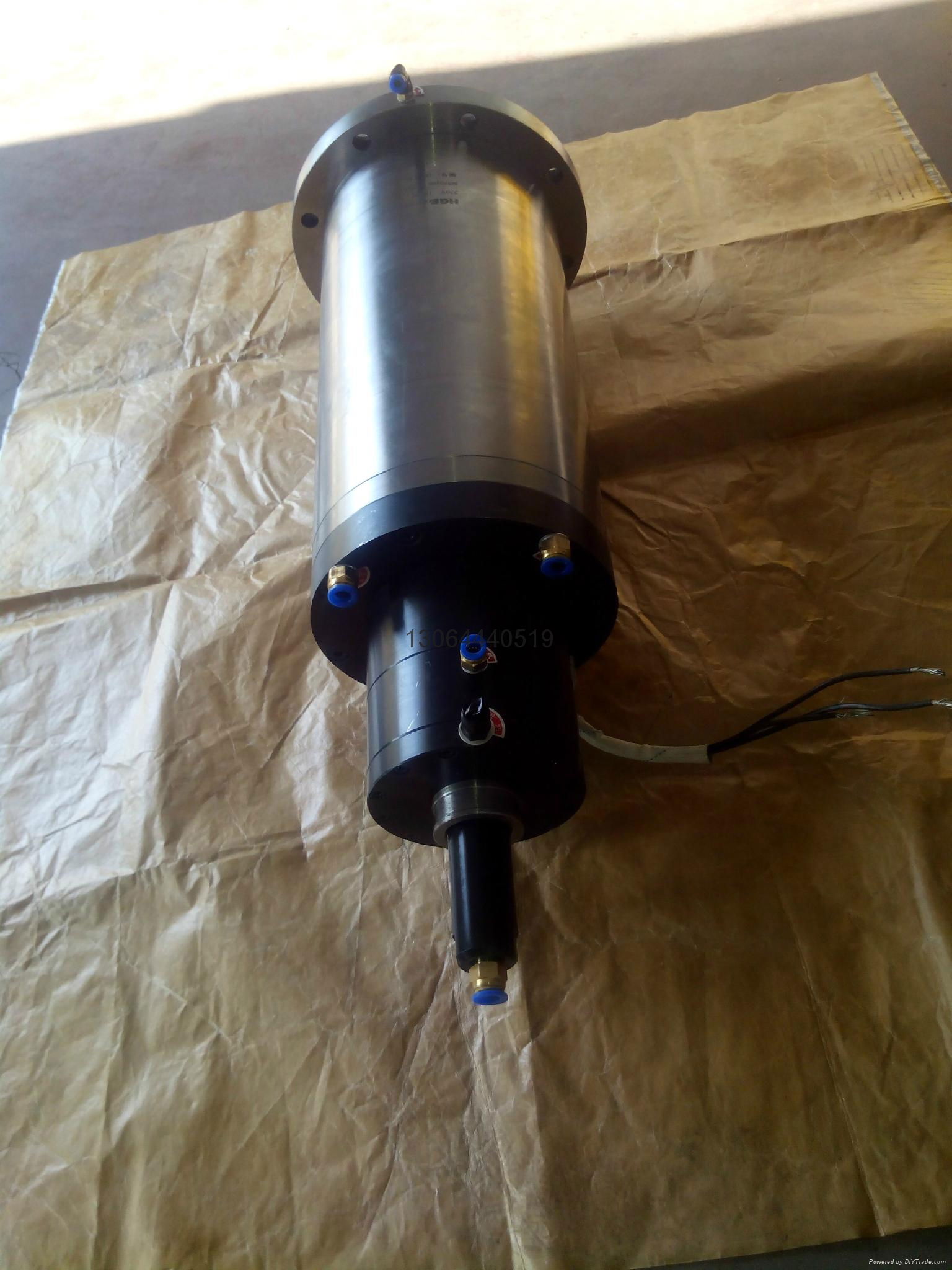

~Type specification DGD190Z6/15BT40
Spindle type Electric spindle for machining center
Spindle diameter（mm） 190
Speed(rpm) 6000
Torque(NM) 23.7
Power(KW) 15
Voltage(V) 350
Electric current(A) 30
Frequency(HZ) 200
Application drilling&milling
Method of lubrication Grease lubrication
Mode of drive Inverter
Joint of nose BT40
Method of tool change Pneumatic or hydraulic
