| Model: | SD1004 |
|---|---|
| Brand: | Aumahr |
| Origin: | Made In China |
| Category: | Industrial Supplies / Farm Machines Tools |
| Label: | Aumahr Tractor , Aumahr , Sadin tractor |
| Price: |
-
|
| Min. Order: | 1 pc |
| Live Chat: |  | Last Online:21 Mar, 2017 |
Characteristics:
◆Supercharge engines with strong power, high fuel efficiency and high torque output;
◆The latest 16+8 synchronizer gear shifting as well as optional, and other mesh shield gear shifting with reasonable speed distribution and effective adaption to all operating needs;
◆540/760, 540/1000, 760/1000 and 760/850 optional for PTO speed and applicable to
various machine deployment; axle heads of many optional specifications for quick gear
shift;
◆Comprehensive force/position control lifter for easy and convenient operation; optional
strong pressure device lifter with up to 3500kg of max lifting force at the suspension
point for the best rotary tillage and plough effect.
|
Parameter |

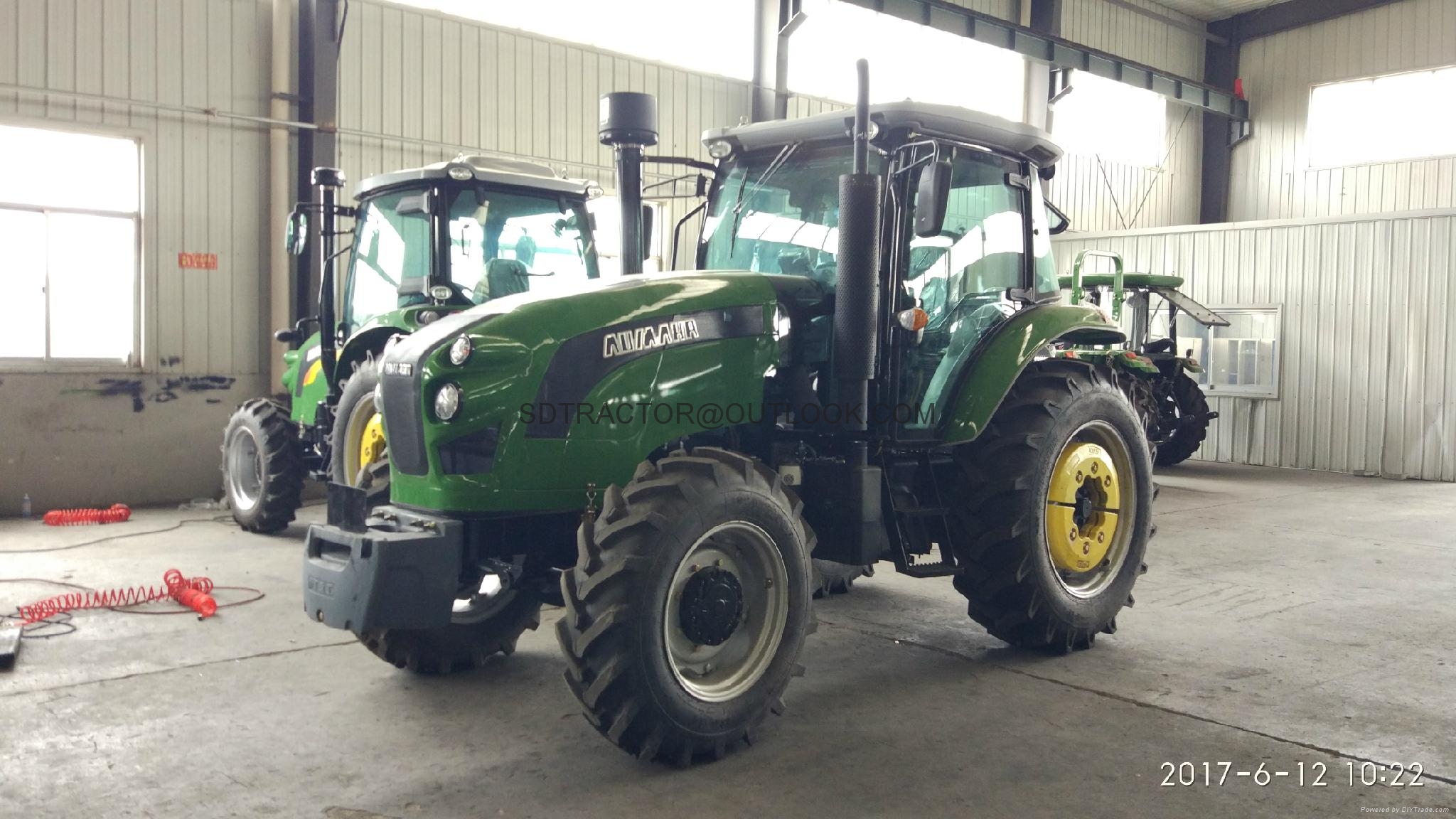

SD1004 FARM TRACTOR |
|
Rated Engine Power(Kw) |
73.5 |
|
Driven Type |
4WD |
|
Length (mm) |
4350 |
|
Width(mm) |
2130 |
|
Height (mm) |
2870 |
|
Structure Weight(kgs) |
3850 |
|
Tread of Front Wheel(mm) |
1625 Stepped Adjustable |
|
Tread of Rear Wheel(mm) |
1608-1996 Stepless Adjustable |
|
Wheel Base(mm) |
2380 |
|
Shifts |
16F+8R |
|
Max. Traction (4WD)(KN) |
25.7 |
|
Forward Speed Range(Km/h) |
1.6-33.7 |
|
Reverse Speed (Km/h) |
2.4-34.7 |
|
PTO(Rev./min) |
760/850 (Optional 540/1000,760/1000,540/760) |
