Solid State HF Welder 200KW

Model:GGP200-0.35-H
Brand:Yongda Electrical
Origin:Made In China
Category:Industrial Supplies / Machinery / Welding Solders
Label:induction heating , welding machine , straight seam weld
Price: US $32000 / unit
Min. Order:1 unit
Inquire Now Add to Basket

Member Information

Detail

Product Description

Technical Parameter Of Solid State H.F Welder



GGP200KW-0.35-H

Designed parameters

Nominal power: 200kW

Rated DC power: Pd=240kW

Rated DC voltage: UdN=450V

Rated DC current: IdN=530A

The whole efficiency: η≥85%

Output power: Pout>200kW

Designed frequency: f=300~350kHz

MOSFET inverter: 60kW×4

Tank circuit output mode: no welding transformer output, secondary resonance



Power distribution requirements

Nominal power: 200kW

Rated DC power: Pd=240kW

Line-in power factor: COSφ≥0.85

Power distribution capacity: S≤280kVA

Power supply voltage: 3-phase 380V/50Hz

Line-in current: I=430A

Line-in cable: each phase adopts 185mm2 copper cable parallel connections, 3-phase 4-line



Features:

Our Solid State High Frequency Tube Welder adopts Mosfet,and is different from the traditional vacuum tube welder,the solid state HF Tube welder have some advantages compare with the vacuum tube welder:

1.Good welding quality.
2.save electricity
3.save water
4.small volume and less weight
5.easy operation
6.safety



Supply List:

Switch gear rectifying cabinet    1 set
Inverter output cabinet    1 set
Air-water cooling system    1 set
PLC central operation console    1 set
Connecting optical fiber    1 suit
Mechanical adjustment device    1 set




Payment Terms:TT

Product Image

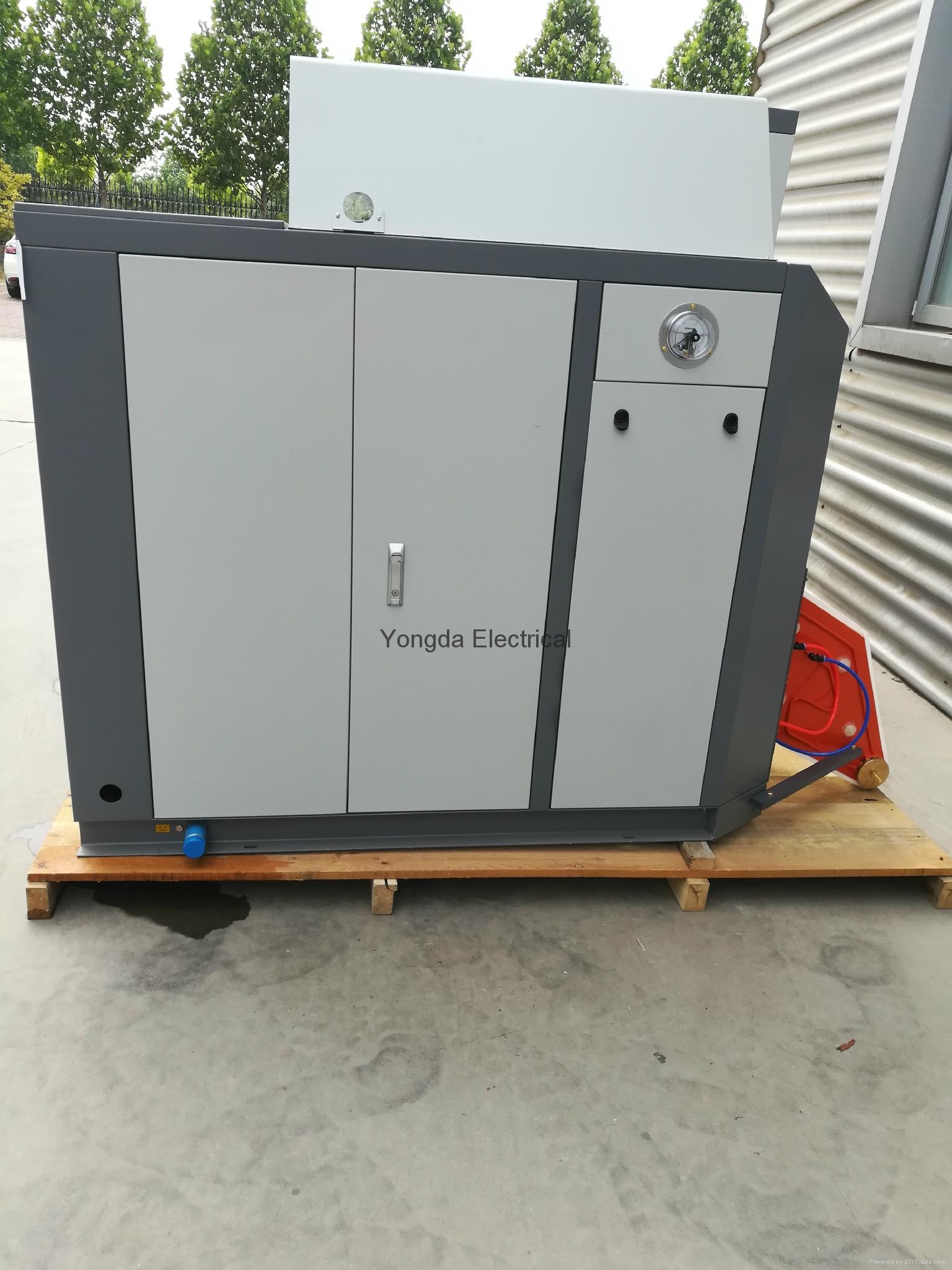

Solid State HF Welder 200KW 1
Img 1

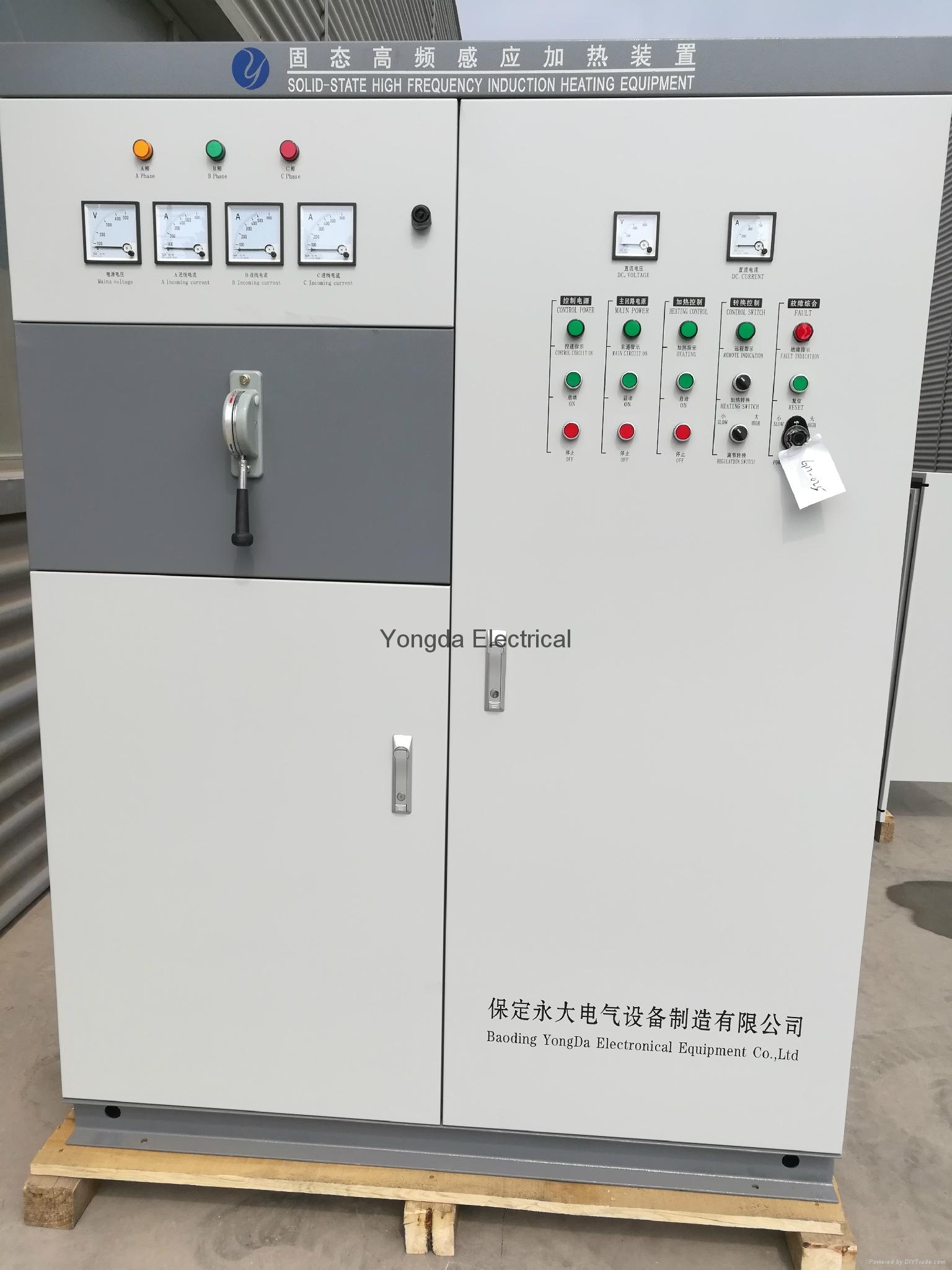

Solid State HF Welder 200KW 2
Img 2
Solid State HF Welder 200KW 3
Img 3
