| Model: | CM-P10-M |
|---|---|
| Brand: | Coreman |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | DIP RGB led , RGB SMD led , full color led modul |
| Price: |
US $9
/ pc
|
| Min. Order: | 1 pc |
| Live Chat: | Last Online:26 May, 2017 |
Other size and model

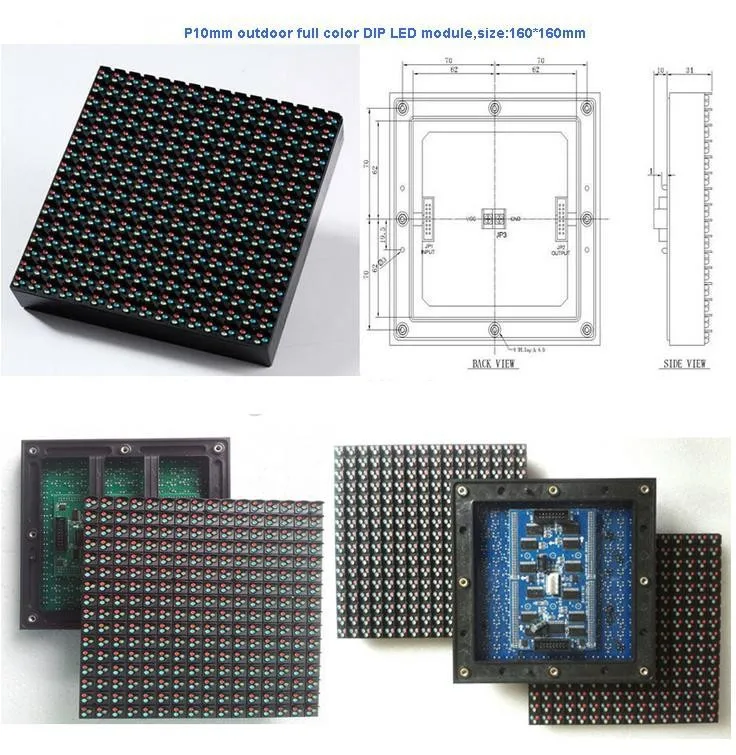

| P10 Outdoor Display Module -Full color | |
| Item | Specification |
| Pixel Pitch (mm) | 10 |
| Pixel LED | DIP146 |
| Pixel Density (dot/m2) | 10000 |
| Pixel Configuration | 1R1G1B |
| Module Size (Lmm*Hmm) | 160×160 |
| Brightness(CD/m2) | ≥ 7500 |
| Best Viewing Angle | 110°H/160°V |
| Drive Mode | 1/4 scan |
| ES Chip Size | R9mil, GB 8*10mil |
| Working Voltage | DC5V |
| Protection Level | IP65 |
| Environment Temperature | Storage: -40°C~90°C Operation: -30°C ~+ 50°C |
| Blind Spot Rate | Less than.0003(LED display industry standard) |
| Working Humidity | 5%-85% |
| MTBF | ≥10000hours |
| Lifespan | ≥100000hours |
