| Model: | TST018A0P-SE3 |
|---|---|
| Brand: | TSD |
| Origin: | Made In China |
| Category: | Electronics & Electricity / Electronic Components / Display Parts |
| Label: | 128x160 pixel tft lc , .77 inch tft lcd , 1.77'' tft with touc |
| Price: |
US $3
/ pc
|
| Min. Order: | 100 pc |
| Live Chat: | Last Online:23 Mar, 2017 |

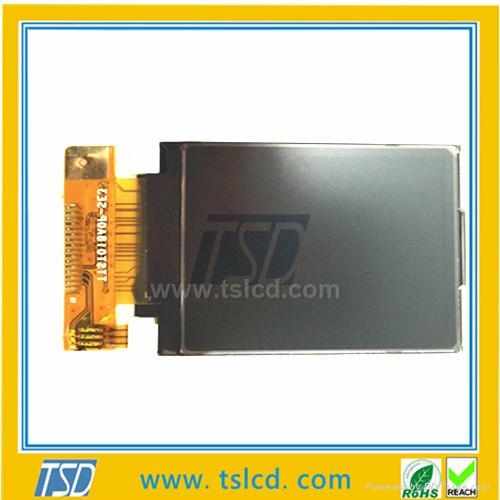

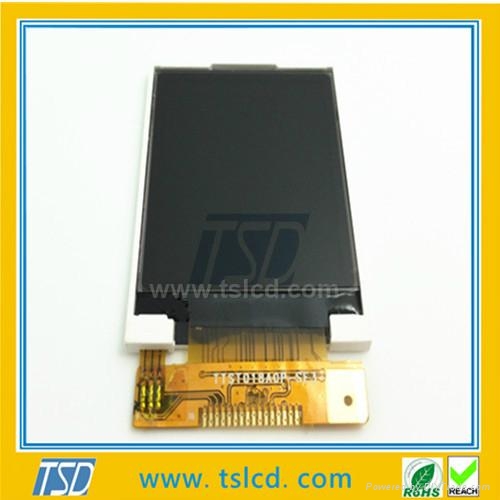

1.77 inch 128X160 pixel tft lcd with touch panel
|
Specification |
|
|
LCD type |
TFT,Transmissive |
|
Display type |
1.8 inch TFT, 262k color, normal white |
|
Description |
1.77" tft lcd module |
|
Driver element |
a-si TFT Active matrix |
|
Outline Dimension(mm) |
46.7x34.7x2.5 |
|
A.A.(mm) |
35.04x28.03 |
|
Driver IC |
ILI9163C |
|
Resolution(dots)_ |
128*RGB*160 |
|
Viewing Direction |
12H |
|
Operating temperature(°C) |
-20-70 |
|
Storage temperature(°C) |
-30-80 |
|
Logic Volatge |
3.0v |
|
Pixel arrangement |
RGB Vertical Stripe |
|
Display mode |
Normally white |
|
Surface treatment |
Antiglare, Hard-Coating(3H) |
|
Weight(g) |
TBD |
|
Backlight |
2 LEDs, White |
|
Weight(g) |
TBD |
|
Interface connector |
Serial/spi interface |
|
Module lifetime(Hours) |
50,000-100,000 |
--TFT LCD Module series:
1. Our standard tft lcd module size:
1.44", 1.77", 2", 2.4", 2.8", 3", 3.2", 3.5",
4"(3.97"), 4.3", 5", 5.6", 5.7", 7", 8", 10.1", 12.1", 15".
2. New products: 3.5", 4.3", 5.0", 5.7" and 7" TFT LCD with MCU interface.
3. 2.8", 3.5" transflective/ sun readable tft lcd.
4. 3.5", 5", 7" with capacitive touch panel.
--About us:
Team Source Display has been specializing in graphic, character, alphanumeric and TFT LCD Modules, as well as TN, HTN, STN, FSTN, and DFSTN panels since established in 2004.
We are trying to meet all your needs in LCD/LCM products!
--Our Qualification and reputation:
Got ISO9001:2008 certificate and ROHS certificate.
Have agents and partners in the USA, Isreal, Taiwan, India, etc. Have end customers like Audi, JCB, Sonel, Mortara, Sino, Meta system etc.
