| Model: | HCD-DFT |
|---|---|
| Brand: | BODHI |
| Origin: | Made In China |
| Category: | Industrial Supplies / Environment Protection Facilities / Air Purifier |
| Label: | dust collector , fume extractors , smoke purifier |
| Price: |
-
|
| Min. Order: | 1 set |
| Live Chat: |  | Last Online:06 Feb, 2017 |

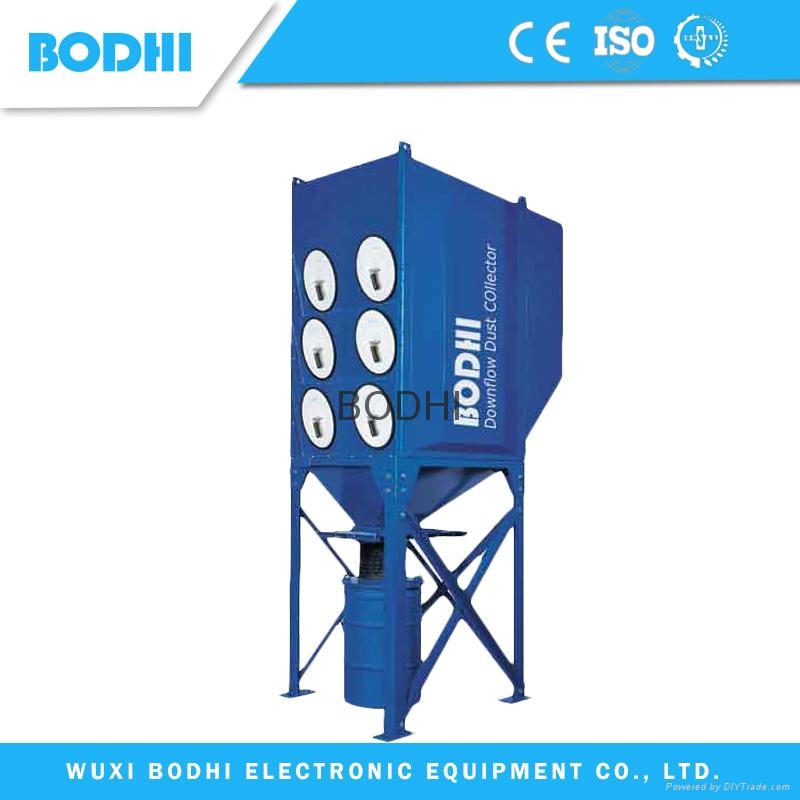

HCD-DFT
The description of HCD-DFT series
It is a central filter system that consists of modular components. Automatic filter cleaning by compressed air pluse inside each filter cartridge. The high-performance HCD-DFT unit is ideal for all your dust and fume collection needs.Filtering out the polluted air that commonly occurs within a manufacturing environment,HCD-DFT many industrial applications include grinding, welding, buffing, sanding, smelting,bulk powder handling, and more. Plus, our design allows for field expand ability — so you can add modules and increase the capacity of your system at any time.
Technical Data
Filter Efficiency:99%
Filter Principle: Mechnical cartridge filter
Filter Life:12--36 months
Filter material: PTFE filter
Cleaning mode: Plus automatic cleaning
Way out: Bottom/ lateral
Installation: Site-mounted
Material:High quality alloy steel
Shell Life:20 years
Volume(m3/h):6000-95000
No.of cartridge：4--96
No. Of solenoid valve:4-48
Filter area(m2):80--1920
Benefits:
Effective fire suppression
Limit system damage
Low risks of a fire escalating
Low maintenance
Easy to install and replace
Environmentally friendly
Negligible residue and cleaning after activation
Safe for personnel and equipment
Product Characteristics:
All HCD-DFT Series dust collectors come with the industry’s best performing, most efficient standard cartridge filter. Advanced Nanofiber cartridge filters last 50% longer than commodity filters, and are nearly 50% more efficient on sub-micron dust particles than MERV 13 filters.
ProTura Advanced Nanofiber Filtration technology is proven to achieve higher efficiency, cleaner air, lower pressure drop, longer filter life and greater energy savings than any other standard cartridge filter media.
Operating Principle
The draught fan is installed on the back of central dust collector. It appear high presuure by the drought fan, the welding fume is inhaled into the central dust collector. After several filtering, the purified air can be released into outside by chimney. Due to the powerful draught fan, the noise may be louder during the operation. You can pick silencer to reduce the noise level.
