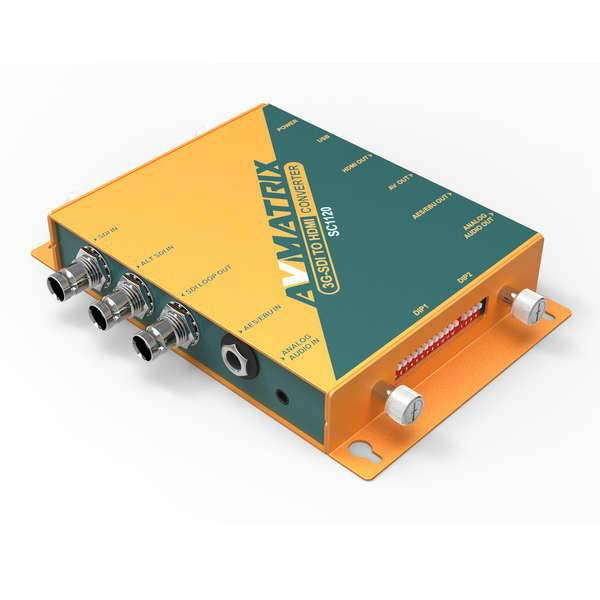

SC1120

3G-SDI to HDMI & AV Scaling Converter

SC1120 is an exquisite and professional converter to convert SDI signal to HDMI and AV signals at the same time. The format of the output can realize pass through or up/down scaling and frame rate conversion. Seamless conversion can also be supported to avoid jitter. It also features AES/EBU or analog audio embedding and de-embedding. All the functions can be easily set by a built-in DIP switchers or PC via USB. SC1120 is your ideal choice for broadcasting and AV post production applications.

• FEATURES
•
• TECH SPECS
•
• ACCESSORIES
•
• SEND INQUIRY

Features

• Input: 3G-SDI×1, Alt 3G-SDI×1, AES/EBU×1, analog audio×1
• Output: 3G-SDI loop×1, HDMI×1, AV×1, AES/EBU×1, analog audio×1
• Up/down scaling and frame rate conversion
• AES/EBU or analog audio Embedding & De-embedding
• Input signal automatic detection and configuration
• LED indicators for power and signal lock
• Control easily via the DIP switches
• Remote control for PC via USB
• Threaded locking power connector

Scaling & Seamless

SC1120 features converting SDI signal to HDMI and AV signals at the same time. And the format of output can realize pass through or up/down scaling and frame rate conversion. Besides, it's a real seamless conversion without jitter.It can support up to 1080p 60Hz.

Audio Embedding and De-embedding

It features embedding an external AES/EBU or analog audio or SDI embedded audio to HDMI output. Also it can de-embedding audio from SDI input signal to external AES/EBU and analog audio. There is no need for users to purchase custom cables when adopting standard 1/4"(6.3mm) TRS audio jack and 1/8"(3.5mm) audio jack.

Redundant SDI Input & Re-clocked Output

The Alt SDI In for input redundancy. So that the converter auto switches to the redundant SDI input to avoid a loss of signal in case of an accident from the main signal input. Therefore, it's a significant solution, and especially suitable for studio, live show or outdoor live events. Meanwhile, re-clocked SDI output ensure a long distance transmission without loss of signal quality.

Easy Control over DIP Switches

Adjusting the DIP switches to set the functions by finger, without any tool. It's a smart method to change common settings quickly when outdoor applications. Meanwhile, it also can be remote set by using a software by connecting it with a PC via USB. Besides, the latest software can be upgrades by connecting it with a PC via the USB.

Tech Specs

Accessories

SC1120×1, Bracket×2, Power Adapter×1, Micro USB cable×1
