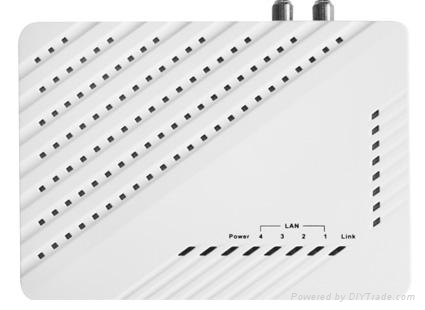

ECM74F is the new generation C-AV EoC slave with WIFI designed by LANCABLE. Adopt 7400 technology solution, working at 5~65Mhz. integrated WIFI module based on conventional EoC application, offer flexible function control to meet family broadband, interaction, value-added service including multi-service with cable and WIFI coverage. Better stability, higher delivery speed, easier installation, very suitable for coaxial network access to home.

Features:

• Max.link loss is 60dB
• High out of band rejection, lower plug loss
• 4*10/100BASE-T fast Ethernet access and WIFI access
• Up to 300Mbps, meet current and future service requirement;
• Support 802.1Q VLAN, 802.1P priority and port speed limitation etc;
• Terminal configuration is issued by master automatically, realize service without configuration

 WiFi characteristics

• Support 802.11b/g/n mode, up to 150Mbps
• Support Web management,  configure routing access on line
• Support multi-SSID and  SSID bonded with LAN;
• Support routing access function including PPPoE, NAT, DHCP etc
