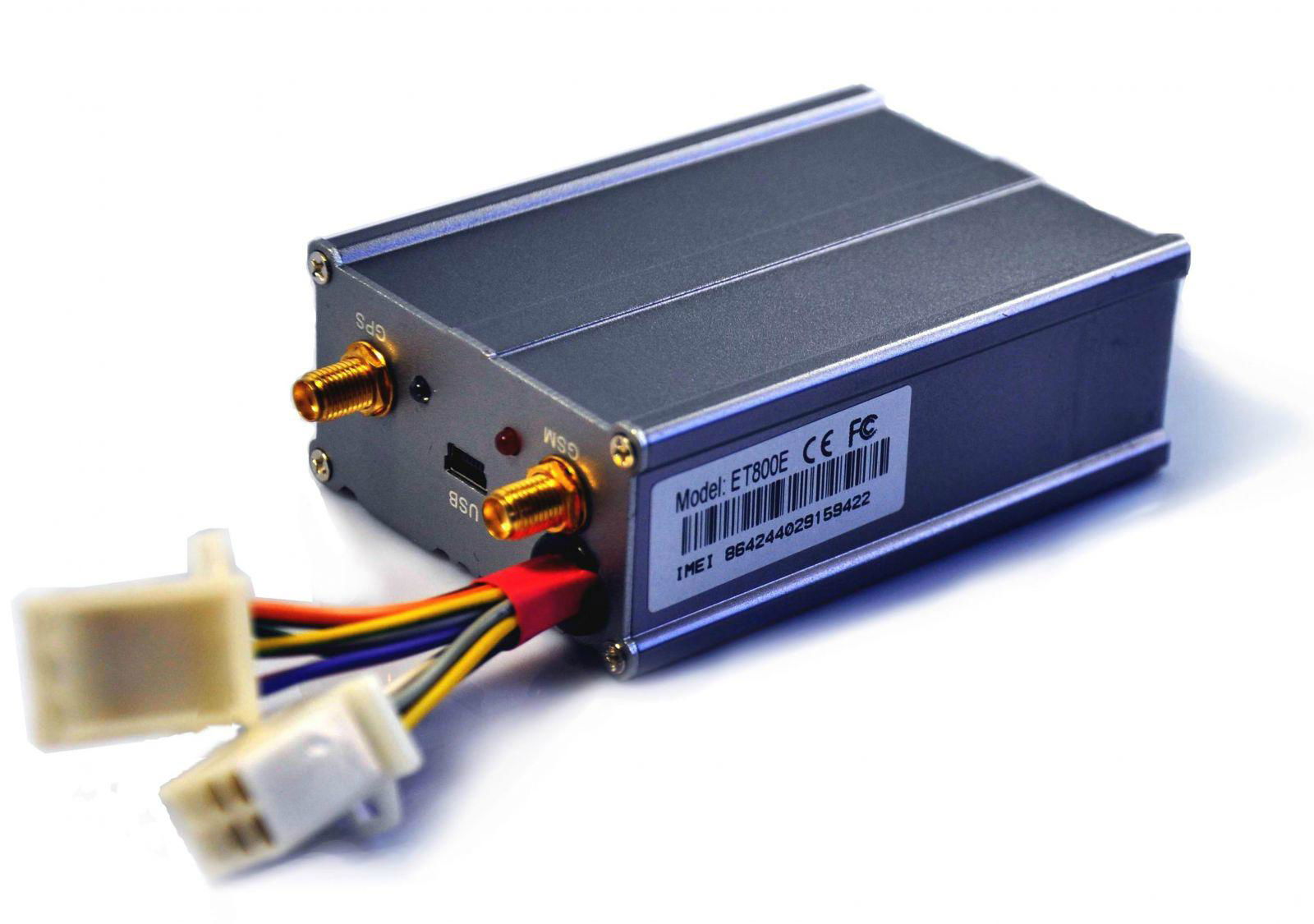

The ET800L use 4G LTE module, upgrading the ET800E 2G version, Add camera input and handset phone. GPS/GPRS/SMS tracking device designed for trucks, vans, trailers, dump trucks and other heavy vehicles. It supports 24V voltage, small size, easy to hide. Beside the standard tracking features, it monitors vehicle status, fuel consumption; the backend platform system smartly display the fuel volume despite of various truck fuel tank capacity. This is to be realized by 2 options: 1). Use an additional fuel sensor; 2). Simplely Connect one ET800L cable to trcuk fuel meter





- FDD LTE: B1/B3/B5/B7/B8/B20
UMTS: B1/B5/B8
GSM: 850/900/1800/1900MHz
FDD LTE: B2/B4/B5/B12/B17
UMTS: B2/B4/B5
GSM: 850/1900MHz
FDD LTE: B1/B3/B8
TDD LTE: B38/B39/B40/B41
TDSCDMA: B34/B39
UMTS: B1/B8
GSM: 900/1800MHz
LTE Version 3GPP E-UTRA Release 9
- Support GPRS/SMS mode，Support TCP/UDP transmission
- Support Indoor LBS & AGPS
- Built in 3D motion sensor
- Voice feature
- Black box data logger for last half hour.
- USB Configuration / Upgrade Version
- OTA remote firmware upgrade


- Fixed time report
Fixed distance report
Fixed heading change report
- Report by: Time / Coordinates / Heading / ACC OnOff / Speed / Mileage / Battery / AGPS data / Fuel data / Door Status / Horn / Air-Con Status/ Camera /Handset


- Speeding Alarm
- Power disconnect alarm
- Geo-fence alarm
- Low battery alarm
- Low fuel alarm
- SOS emergency alarm


- Remote Control device reporting
- Remote Configure, require parameters
- Remote reset
- Remote lock door
- Remote immobilize the vehicle
- Remote voice monitor
- Remote clear alarms / back to factory setting
- Remote upgrate

GPS Tracking Software: ( Web, Client Server, Andriod, iOS, Wap)


Report Site:: http://220.231.252.76:89/stat/index.jsp?vhcid=0&vhcname=〈=en_US
Tracking Site: http://220.231.252.76:89/mygpsonline/gpsonline_EN/jsp/login.jsp
Username: OBD
Password : 135246

Standard Parkage：Main unit, Wire Harness, Cut relay, SOS alarm buttons, GPS/GPRS Antennas, Velcro, MIC.
Optional：Speaker, USB Setup Cable, Fuel Sensor, Door Sensor

Warranty Time: 2 years ( from shipping date)
