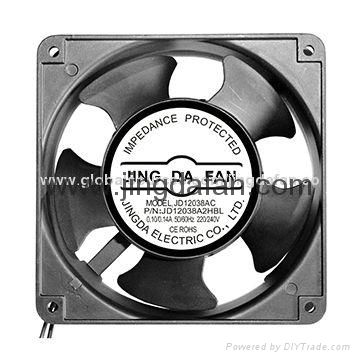

• AC fan model: JD12038A2LBL
• Size: 120X120X38mm
• Working voltage: 220V
• Current: 0.08/0.07A
• Frequencies: 50/60 (Hz)
• Power supply range: 17.6/15.4 (W)
• Speeds: 1,850/2,000(RPM)
• Air flow: 47/54(CFM)
• Pressure range: 3.6/4.5(mmH2O)
• Noise: 37/40 (dBA)
• Weight: 550 (g)
• Certifications: CE, RoHS, SGS, CCC, ISO 9001
• Packing: each one with one white box or as the customers' requirement
• Materials:
  • Frame: aluminum alloy with plastic-spraying/P. B. T
  • Impeller: plastic P. B. T
  • Coil: enameled copper wire
  • Motor: shade pole induction motor
  • Bear type: ball bearing
  • Lead type: wire lead/terminal
• Performance:
  • Insulation resistance: 10MΩ At 500VDC between lead and frame
  • Operation temperatures: -20~80°C
  • Dielectric strength: 1 min at 1,500VAC/50-60Hz, current<5mA
  • Operation humidity range: 20~85%
  • Use of life: ball bearing 50,000 hours and sleeve bearing 20, 000 hours (at 25° C)
  • Special can be customized

• CCC:2013010401627379

  CE:CTS070429-00557-E-M1

  CE:CTS070429-00558-E-D

  CE:CTS070429-00556-E

  ROHS:CTS070429-00555-C

  ROHS:CTS070429-00554-C

CCC:2013010401627379

CE:CTS070429-00557-E-M1

CE:CTS070429-00558-E-D

CE:CTS070429-00556-E

ROHS:CTS070429-00555-C

ROHS:CTS070429-00554-C
