Product Description

4S LiFePO4 Battery Pack 12V 10AH



Features

1) LiFePO4 battery with high capacity, light weight, high consistency, high security.

2) Battery pack 12V10Ah with long cycle life (over 1500 times).

3) Wide operating temperature range.

4) No memory effect, environmental friendly

5) High gravimetric specific energy, high volumetric specific energy, good deep discharge capacity.

6) Batteries can be customized.







Specification Of LiFePO4 Battery Pack 12V 10AH

Cell
model 10Ah-97108148
Capacity 10Ah
Rated voltage(V) 3.2V
Typical Impedance (mΩ) ≤4.5mΩ
Battery material LiFePO4
Battery Pack    LiFePO4 Battery Pack 12V 10AH
Combination method 1P4S
Minimal capacity 10Ah
Nominal voltage 12.8V
Max. charge voltage 14.6V
Discharge cut-off voltage 10V
Max charge current (0.5C)10A
Max working current (2C)20A
Standard charge current (0.3C)3A
Standard discharge current (0.5C)5A
Weight (Approx.) 1.1Kg
Max. dimension(L×W×H)(mm)  Can be customized









  Lithium Iron Phosphate Battery Performance Curves








Application

1GLU~2QLR40(A(S75UU9{(F











Factory

--





Shipment Packing Of LiFePO4 Battery Pack









Warning!!

  • Use the battery charger specifically for that purpose when recharging.
  • Do not discard the battery in fire or a heater.
  • Do not dismantle the battery
  • Do not immerse the battery in water or seawater, and keep the battery in a cool dry surrounding if it stands by.
  • Do not use or leave the battery near a heat source such as fire or heater.
  • Please choose Lithium iron battery charger when charging.
  • Do not reverse the positive and negative terminals.
  • Do not connect the battery to an electrical outlet.
  • Do not short-circuit the battery by directly connecting the positive and negative terminals with metal objects.
  • Do not transport or store the battery together with metal objects such as hairpins, necklaces, etc.
  • Do not strike, trample or throw the battery.

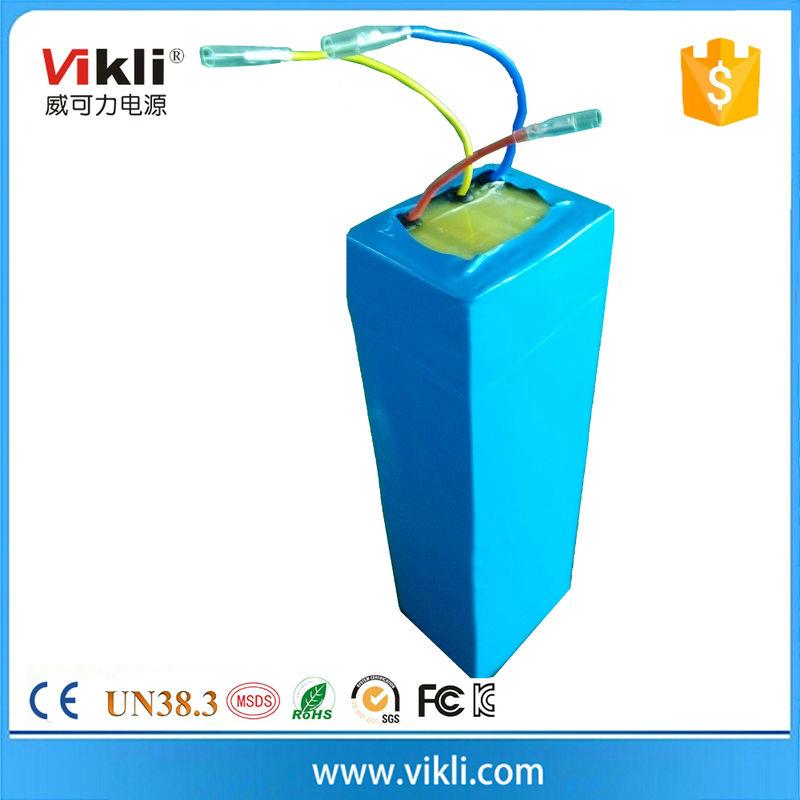

Product Image

4S LiFePO4 Battery Pack 12V 10AH 1
