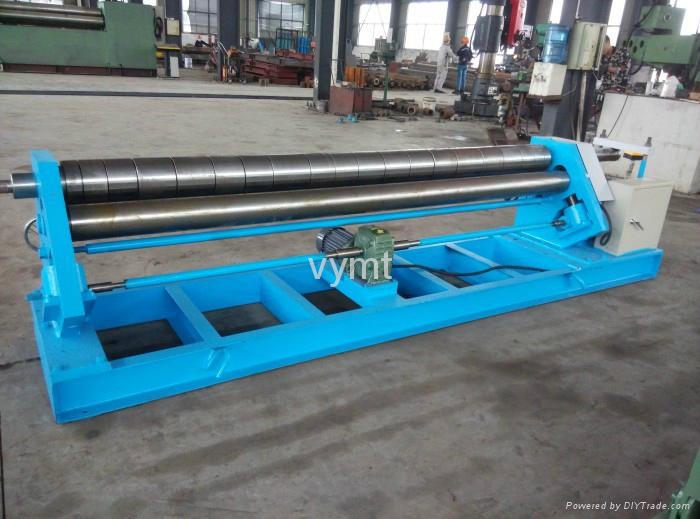

3-roller mechanical asymmetrical plate rolling machine
Product Description
W11F-4*1600 3-roller machinery asymmetrical rolling machine technology file
- main technical parameters
- The model: W11F-4*1600 3-roller machinery asymmetrical rolling machine.
- Control way: Side and bottom rollers use manual control.
- Work state: cold rolling.
- Max thickness of coiled plate: 4mm(σs≤245Mpa)
Max thickness of coiled plate: 8mm((σs≤110Mpa)
Max. pre-bending thickness: 3mm(σs≤245Mpa)
6mm(σs≤110Mpa)
- Max width of coiled plate: 1600mm
- Yielding limit of steel metal: 245Mpa/110Mpa
- min diameter of coiled plate: T2*B1600*Φmin300mm
(σs≤245Mpa)
T6*B1600*Φmin300mm
(σs≤110Mpa)
- the diameter of up roller: Φ130mm
- the diameter of down roller: Φ130mm
- the diameter of side roller: Φ130mm
- rolling speed: about 4m/min
- main motor: 3 kW
- lifting motor 0.75kw
- Electric system: 415V/50Hz
- Weight about 1.8T
- Dimension about 2200*600**1000mm
| Payment Terms: | T/T 50% in advance, 50% balance before shipment. |
| |
