Product Description
- This machine specially designed to test various material of sole, tire, rubber hoses, rubber belt, PVC cloth, PVC board, package film, acrylic, FRP, ABS, EVA, PU… etc. products, semi-products or dumbbell test piece on their tensile strength, elongation, tearing adhesive, stress-strain, exfoliation, shearing, adhesion to metal and rubber.
- Model : PHT - 121
- Capacity ( kg ) : 10 ~ 100
- Units : kg, g, N, Lb switchable
- Load accuracy : ± 0.5%
- The load cell resolution : 1/100,000
- Power magnification : x1, x2, x5, x10, x20, x50, x100 Automatically switch
- Test speed : 0.1~1,000 mm / min
- Maximum stroke : 900 mm ( Excluding fixtures )
- Stroke resolution : 0.001 mm
- Control system : By computer
- Motor : High-precision servo motors
- Mode l : PHT - 122
- Capacity ( kg ) : 200
- Units : kg, g, N, Lb switchable
- Load accuracy : ± 0.5%
- The load cell resolution : 1/100,000
- Power magnification : x1, x2, x5, x10, x20, x50, x100 Automatically switch
- Test speed : 0.1~1,000 mm / min
- Maximum stroke : 900 mm ( Excluding fixtures )
- Stroke resolution : 0.001 mm
- Control system : By computer
- Motor : High-precision servo motors
- Model : PHT - 123
- Capacity ( kg ) : 500
- Units : kg, g, N, Lb switchable
- Load accuracy : ± 0.5%
- The load cell resolution : 1/100,000
- Power magnification : x1, x2, x5, x10, x20, x50, x100 Automatically switch
- Test speed : 0.1~1,000 mm / min
- Maximum stroke : 900 mm ( Excluding fixtures )
- Stroke resolution : 0.001 mm
- Control system : By computer
- Motor : High-precision servo motors

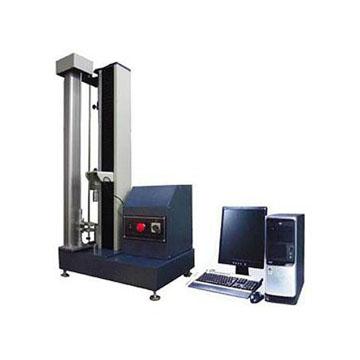

Product Image
Img 1
